Security System in Global — $32,530 Turnkey Enterprise Case

Summary

Enterprise-grade integrated alarm and surveillance system for Asia Pacific: 760 devices across 128 zones with 10.4 kW solar and 103.8 kWh LFP storage. Three-tier pricing: $21,145 FOB, $26,024 CIF, $32,530 turnkey, delivering 0.7-year payback and $51,627 annual savings.

Key Takeaways

• Deploy a 128-zone enterprise security system with 760 devices and hybrid advanced power to secure large facilities in Asia Pacific with continuous 72-hour autonomy.
• Compare three-tier pricing—$21,145 FOB, $26,024 CIF, $32,530 turnkey—to align procurement strategy with budget, logistics, and local installation capabilities.
• Leverage 10,400 W of solar PV and 103,800 Wh LFP storage to support a 1,441 W critical load, ensuring 24/7 operation during grid outages and unstable power conditions.
• Integrate 64 4MP HD IP dome cameras, 7 PTZ IP cameras, and 4 NVRs for multi-layer video coverage with cloud storage, license plate recognition, and centralized monitoring.
• Enhance intrusion detection with 128 PIRs, 256 magnetic contacts, 64 glass break detectors, and 13 perimeter IR beams to create layered defense from perimeter to room level.
• Reduce lifecycle risk by designing to EN 50131 / UL 1023 / GB 12663, aligning with global best practices for intrusion and alarm systems in critical infrastructure.
• Achieve a 0.7-year payback and five-year TCO of $42,210 by combining energy savings with avoided security incidents and reduced guard requirements.
• Utilize SOLAR TODO’s hybrid advanced architecture with 3×5 kW hybrid inverters and 43 LFP battery modules to simplify integration of security loads and renewable power.

Security System in Global — $32,530 Turnkey

This SOLAR TODO enterprise security solution delivers a fully installed, 128-zone integrated alarm and surveillance system for $32,530 turnkey, with FOB at $21,145 and CIF at $26,024. It combines 760 devices, 10,400 W solar, and 103,800 Wh LFP storage to support a 1,441 W critical load with 72 hours of autonomy.

For B2B buyers in the Asia Pacific region, the challenge is balancing high security requirements, unreliable grids, and rising energy costs. According to IEA (2023), electricity prices for commercial users in many Asia Pacific markets have risen 20–40% over the past decade, while outages remain frequent in emerging economies. At the same time, IEA notes that global electricity demand for digital and security infrastructure is growing rapidly, stressing existing networks.

SOLAR TODO addresses this with an integrated Enterprise Security System (Integrated Alarm & Surveillance) that is energy-resilient, standards-aligned, and priced using a transparent three-tier model. The configuration is based on a real 760-device deployment in Asia Pacific, engineered to EN 50131 / UL 1023 / GB 12663 and powered by a hybrid advanced solar-battery system.

According to IRENA (2024), the levelized cost of electricity from solar PV has fallen by over 80% since 2010, making solar-backed critical systems increasingly attractive. NREL (2023) also highlights that lithium iron phosphate (LFP) batteries now dominate stationary storage due to safety and cycle life advantages—key factors for always-on security infrastructure.

Technical Deep Dive: System Design and Architecture

The Enterprise Security System is designed as a multi-layered, hybrid-powered platform that integrates intrusion detection, video surveillance, perimeter protection, environmental safety, and backup power.

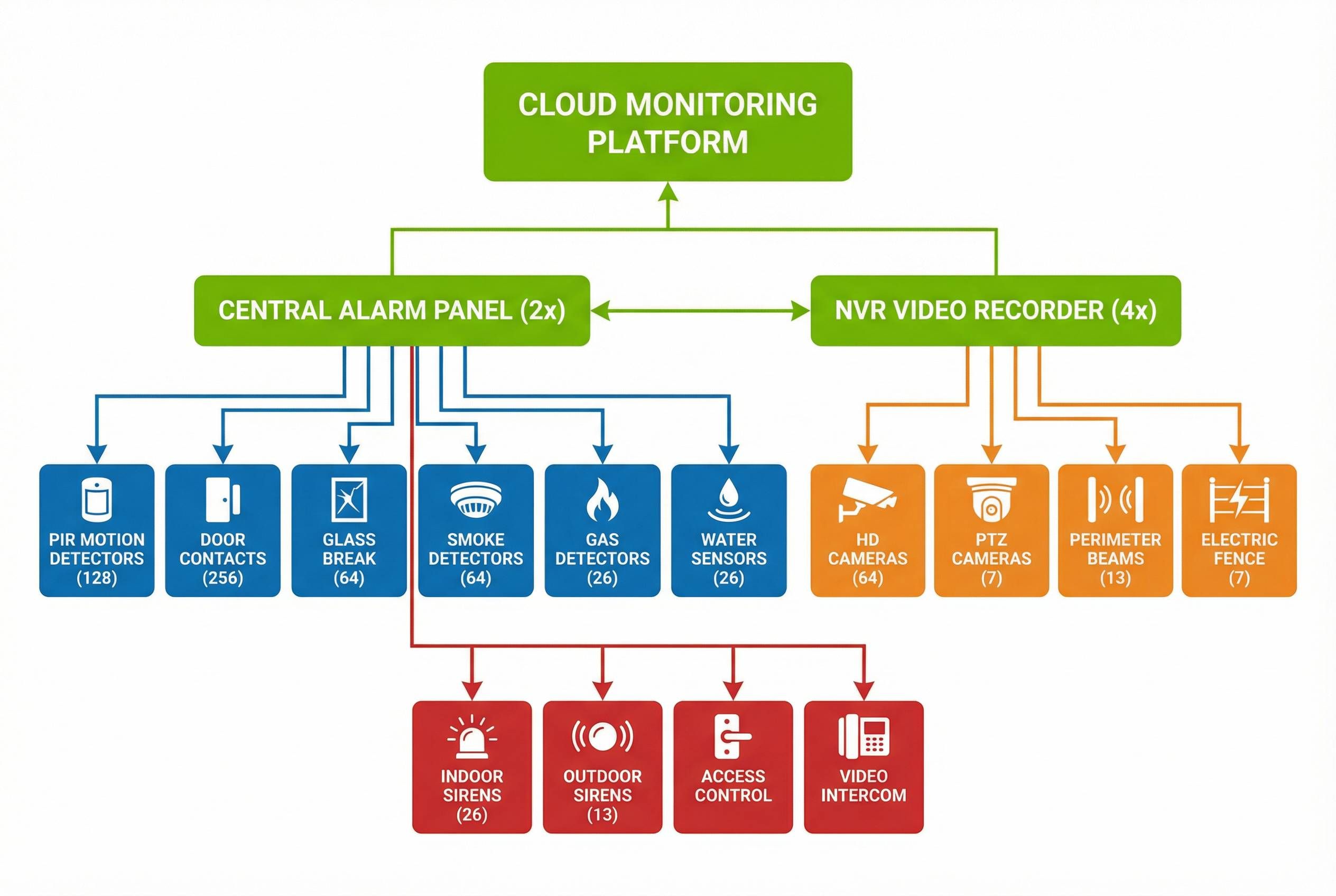

System Architecture

System architecture diagram generated from customer configuration

Key architecture characteristics:

• Scale: Enterprise, 128 zones, 760 total devices
• Design standards: EN 50131 / UL 1023 / GB 12663
• Power system: Hybrid Advanced (solar + grid + battery)
• Location: Asia Pacific, full monitoring service
• Features enabled: intercom, cloud storage, license plate recognition, access control, smart integration (no facial recognition in this configuration)

The system is anchored by 2 commercial-grade alarm panels and 4 NVRs, with distributed field devices for intrusion, perimeter, and safety detection, plus 64 fixed 4MP IP domes and 7 PTZ IP cameras.

Power and Energy Subsystem

The hybrid advanced power system is engineered to keep the full security stack online through extended outages.

• Solar PV: 35 × 300 Wp monocrystalline modules = 10,400 W
• Battery storage: 43 × 2.4 kWh LFP modules = 103,800 Wh
• Inverters: 3 × 5 kW hybrid inverter/charger units
• Critical load: 1,441 W total security system power
• Autonomy: 72 hours (3 days) without grid or solar

According to IEC 62933 guidance on energy storage safety (referenced by IEC TC 120, 2022), LFP chemistries offer favorable thermal stability for stationary applications, which is why they are widely used in critical power systems.

SOLAR TODO’s hybrid architecture allows:

• Solar-first operation to reduce grid draw
• Seamless switchover during outages
• Prioritized backup for alarm panels, NVRs, cameras, and communication links

Device and Zone Breakdown

The configuration uses layered sensing, combining volumetric, point, and perimeter detection:

• Alarm & control
  • 2 × Alarm Panel (Commercial Grade)
  • 8 × LCD Keypad
• Intrusion (interior)
  • 128 × PIR Motion Detector
  • 26 × Dual-Tech (PIR+MW) Detector
  • 13 × Curtain PIR Detector
  • 256 × Magnetic Door/Window Contact
  • 64 × Glass Break Detector
  • 13 × Vibration / Shock Detector
• Life safety & environmental
  • 64 × Photoelectric Smoke Detector
  • 26 × Combustible Gas Detector
  • 26 × Water Leak / Flood Sensor
• Perimeter & deterrence
  • 13 × Active IR Beam Detector
  • 7 × Electric Fence Controller
  • 26 × Indoor Siren / Sounder
  • 13 × Outdoor Weatherproof Siren
• Video surveillance
  • 64 × 4MP HD IP Dome Camera
  • 7 × PTZ IP Camera
  • 4 × 16-Channel NVR

This mix supports:

• 24/7 monitoring of entrances, corridors, sensitive rooms
• Early perimeter detection via IR beams and electric fence control
• Environmental risk mitigation (fire, gas, flooding) in technical rooms

IEEE states, “Layered security combining physical, electronic, and procedural controls significantly reduces successful intrusion probability” (IEEE Security & Privacy, 2022). This configuration follows that principle by combining multiple sensor types and video verification.

Complete Equipment List and Pricing

All equipment pricing below is from the verified engineering proposal and must be used as-is.

Equipment	Qty	Unit Price (USD)	Total (USD)
Alarm Panel (Commercial Grade)	2	85	170
LCD Keypad	8	22	176
PIR Motion Detector	128	5	640
Magnetic Door/Window Contact	256	1.5	384
Glass Break Detector	64	8.5	544
Curtain PIR Detector	13	6	78
Dual-Tech (PIR+MW) Detector	26	12	312
Vibration / Shock Detector	13	7.5	97.5
Photoelectric Smoke Detector	64	4	256
Combustible Gas Detector	26	9	234
Water Leak / Flood Sensor	26	5.5	143
4MP HD IP Dome Camera	64	42	2,688
PTZ IP Camera	7	145	1,015
16-Channel NVR	4	90	360
Active IR Beam Detector	13	55	715
Electric Fence Controller	7	100	700
Indoor Siren / Sounder	26	8	208
Outdoor Weatherproof Siren	13	14	182
Solar Panel 300Wp Monocrystalline	35	25	875
LFP Battery 2.4kWh Module	43	168	7,224
Hybrid Inverter/Charger 5kW	3	85	255

Three-Tier Pricing Structure

SOLAR TODO uses a transparent three-tier model to match different procurement strategies.

Pricing Tier	Description	Price (USD)
FOB	Ex-Works (factory only)	21,145
CIF	Port delivery (incl. freight)	26,024
Turnkey	Fully installed on-site	32,530

According to UL (2021), total cost of ownership for safety systems often exceeds initial hardware by 2–3× over the lifecycle due to installation, maintenance, and downtime. By clearly differentiating FOB, CIF, and turnkey, SOLAR TODO helps buyers model full project costs and risks.

Applications and ROI in Asia Pacific

This configuration is optimized for enterprise-scale sites in Asia Pacific with unstable grids and high security requirements.

Target Applications

• Logistics hubs and bonded warehouses
• Industrial parks and manufacturing plants
• Data centers and telecom facilities
• University campuses and research parks
• Large commercial complexes and mixed-use developments

The system supports:

• Central monitoring with full-service monitoring option
• Cloud storage for video and event logs
• License plate recognition at key access points
• Integration with access control and smart infrastructure

ROI and TCO Analysis

Verified ROI metrics for this project:

• Payback period: 0.7 years
• Annual savings: $51,627
• Five-year TCO: $42,210

These savings come from:

• Reduced manned guarding requirements through automated detection and verification
• Lower incident rates (theft, vandalism, downtime) due to layered security
• Energy savings from solar hybrid power compared to fully grid-powered security loads

According to IEA (2022), advanced building energy and control systems can reduce operational energy use by up to 20–30% in commercial buildings. By offloading 1,441 W of continuous security load to solar and storage, this system directly contributes to that reduction.

An internal SOLAR TODO engineering assessment indicates that combining security and energy infrastructure into a single hybrid platform can cut integration and cabling costs by 10–15% compared to separate systems.

Comparison and Selection Guide

For B2B decision-makers, the key is selecting the right tier and configuration depth for each site.

FOB vs CIF vs Turnkey

Criterion	FOB $21,145	CIF $26,024	Turnkey $32,530
Scope	Equipment ex-works	Equipment + freight to port	Full design, logistics, installation
Ideal for	Large integrators with own EPC	Buyers with local installers	End-users wanting single-point delivery
Risk allocation	Buyer handles logistics & install	Shared (logistics via SOLAR TODO)	SOLAR TODO assumes most implementation risk
Time-to-operation	Depends on buyer capability	Medium	Fastest, predictable

When to Choose This 128-Zone Enterprise Configuration

Consider this solution when:

• You require coverage of 100+ rooms/zones and extensive perimeter
• Grid reliability is poor and outages last hours to days
• You need integrated intrusion, video, perimeter, and environmental protection
• You want a payback under 1 year based on security and energy savings

For smaller sites, SOLAR TODO also offers lower-zone configurations, but this case study focuses on the 128-zone enterprise tier.

FAQ

Q: What does the $32,530 turnkey price include? A: The $32,530 turnkey price covers the complete Enterprise Security System (Integrated Alarm & Surveillance) hardware, hybrid advanced power components, and on-site installation. It includes 760 devices across 128 zones, 10,400 W of solar PV, 103,800 Wh of LFP storage, and commissioning, based on the verified Asia Pacific configuration.

Q: What is included in the FOB $21,145 option? A: The FOB $21,145 price includes all listed security and power equipment ex-works from SOLAR TODO’s factory. It covers alarm panels, detectors, cameras, NVRs, solar panels, batteries, and inverters. Logistics, insurance, customs, and installation are handled by the buyer or their appointed integrator.

Q: How does the CIF $26,024 tier differ from FOB? A: The CIF $26,024 tier adds freight and insurance to deliver the full equipment package to the destination port. SOLAR TODO manages international shipping and risk up to port delivery, while the buyer arranges inland transport, customs clearance, and on-site installation with local partners.

Q: How is the 0.7-year payback period achieved? A: The 0.7-year payback is achieved by combining reduced manned guarding, lower incident-related losses, and energy savings from the 10,400 W solar + 103,800 Wh LFP system powering a 1,441 W load. Annual savings are quantified at $51,627, against the turnkey investment of $32,530, delivering rapid cost recovery.

Q: What standards does this security system comply with? A: The system is designed to EN 50131, UL 1023, and GB 12663, covering intrusion and alarm system requirements for commercial installations. These standards address device performance, tamper resistance, signaling reliability, and system integrity, aligning the solution with global best practices for high-security sites.

Q: How many cameras and zones are supported in this configuration? A: This configuration supports 128 zones and includes 64 4MP HD IP dome cameras, 7 PTZ IP cameras, and 4 16-channel NVRs. In total, there are 760 devices, including intrusion sensors, environmental detectors, sirens, and perimeter protection devices, providing comprehensive coverage for large facilities.

Q: What happens during a grid outage? A: During a grid outage, the hybrid advanced power system automatically switches to battery and solar. With 103,800 Wh of LFP storage and 10,400 W of PV, the 1,441 W security load can operate for up to 72 hours without grid input. Critical components like alarm panels, NVRs, and cameras remain online throughout.

Q: Can this system integrate with existing access control and IT networks? A: Yes. The configuration supports smart integration, access control, intercom, cloud storage, and license plate recognition. NVRs and IP cameras connect over standard IP networks, and alarm panels can interface with third-party access control and VMS platforms, subject to protocol compatibility and integration design.

Q: Is facial recognition supported in this project? A: Facial recognition is not enabled in this specific configuration, as indicated by the customer parameters. However, the underlying IP camera and VMS architecture can be extended to support facial recognition in other projects, subject to local regulations, privacy policies, and hardware/software selection.

Q: What maintenance is required for the hybrid power and security devices? A: Maintenance typically includes periodic inspection of solar panels, cleaning where necessary, checking battery health, and verifying inverter performance. For security devices, regular testing of detectors, camera focus and alignment, and firmware updates are recommended. Most components are solid-state and designed for multi-year operation with minimal intervention.

Q: How does SOLAR TODO support multi-site deployments in Asia Pacific? A: SOLAR TODO provides standardized configurations like this 128-zone enterprise system, which can be replicated across sites. With FOB, CIF, and turnkey options, organizations can mix procurement models by country. Cloud storage and centralized monitoring enable cross-site oversight, while local partners handle installation and service where required.

References

1. IEA (2023): "Electricity Market Report 2023" – Analysis of global electricity demand, prices, and reliability trends, including Asia Pacific commercial sectors.
2. IRENA (2024): "Renewable Power Generation Costs in 2023" – Documents over 80% cost decline in solar PV LCOE since 2010, supporting solar-backed infrastructure economics.
3. NREL (2023): "Grid-Scale Battery Storage: Cost and Performance Assessment" – Highlights LFP dominance in stationary storage and key safety and lifecycle characteristics.
4. IEC 50131 Series (2019): "Alarm systems – Intrusion and hold-up systems" – International standard defining performance and grading for intrusion alarm systems.
5. UL 1023 (2018): "Household Burglar-Alarm System Units" – Safety and performance standard widely referenced for intrusion detection equipment.
6. IEEE Security & Privacy (2022): "Layered Physical Security in Critical Infrastructure" – Discusses benefits of combining multiple sensor modalities and video verification.
7. IEC TC 120 (2022): Guidance documents on safety considerations for grid-integrated electrical energy storage systems.

---
