Summary

A large-scale SOLAR TODO Security System in Asia Pacific delivers 64 zones, 383 devices and 751 W load, powered by a 5.45 kW off‑grid solar system with 90,200 Wh storage. Turnkey installed price is $22,728, with 1.5‑year payback and five‑year TCO of $26,137.

Key Takeaways

• Deploy a 64‑zone, 383‑device SOLAR TODO Security System to cover large Asia Pacific facilities with intrusion, fire, gas and perimeter protection in one integrated design.
• Leverage the $22,728 turnkey price, $18,182 CIF, and $14,773 FOB tiers to align procurement strategy with local installation capabilities and budget.
• Use the 5,450 W off‑grid solar array and 90,200 Wh battery (120 hours autonomy) to ensure 24/7 operation with only $682 annual operating cost.
• Achieve 1.5‑year payback with $16,136 annual savings, including $15,000 loss prevention and $1,136 insurance savings, and a five‑year TCO of $26,137.
• Combine 32 HD cameras, 4 PTZ cameras and 4K NVR with 64 PIRs, 128 door contacts and 32 glass‑break detectors for layered intrusion detection.
• Comply with EN 50131 / UL 1023 / GB 12663 design standards while using 64 zones and 751 W total power for predictable engineering and sizing.
• Enable intercom, cloud storage, license plate recognition, access control and smart integration via the advanced feature package.
• Reduce guard dependency and outage risk by using an off‑grid solar power system, aligning with IEA and IRENA guidance on resilient critical infrastructure.

Security System in Global — $22,728 Turnkey

A SOLAR TODO large‑scale Security System in Asia Pacific delivers 64 zones, 383 field devices and 751 W total load, powered by a 5,450 W off‑grid solar system with 90,200 Wh storage, at a verified turnkey installed price of $22,728 and a five‑year TCO of $26,137.

This solution case study is based on a real engineering proposal for a large commercial/industrial site in the Asia Pacific region. The customer required full‑perimeter intrusion detection, indoor security, environmental safety (smoke, gas, water), and video surveillance, all running independently of the grid. SOLAR TODO engineered a 64‑zone integrated system with solar power and smart features such as license plate recognition and cloud storage.

According to IEA (2023), global investment in electricity grids and end‑use efficiency exceeded $600 billion, with growing emphasis on digital and resilient infrastructure. At the same time, IRENA (2023) notes that off‑grid and mini‑grid solar solutions are critical for reliability in regions with unstable grids. This project aligns with those trends by pairing a sophisticated security system with an off‑grid solar power backbone.

Technical Deep Dive: System Design and Architecture

The system is engineered to EN 50131 / UL 1023 / GB 12663 design standards, with a focus on multi‑layer defense, power autonomy, and integration with modern smart‑building platforms.

Design Standards and Core Specifications

• Design standard: EN 50131 / UL 1023 / GB 12663
• Total zones: 64
• Total devices: 383
• Total power: 751 W
• Power system: Off‑Grid Solar
• Solar panel capacity: 5,450 W
• Battery capacity: 90,200 Wh
• Autonomy: 120 hours (5 days)
• Camera system: 4MP HD cameras + 4K NVR
• Warranty: Equipment 2–3 years, installation 1 year

According to UL (2022), adherence to standards such as UL 1023 for intrusion‑detection units is essential for ensuring consistent performance and insurance acceptance. Similarly, IEC and EN 50131 standards define security grades and environmental classes, guiding detector placement and system robustness.

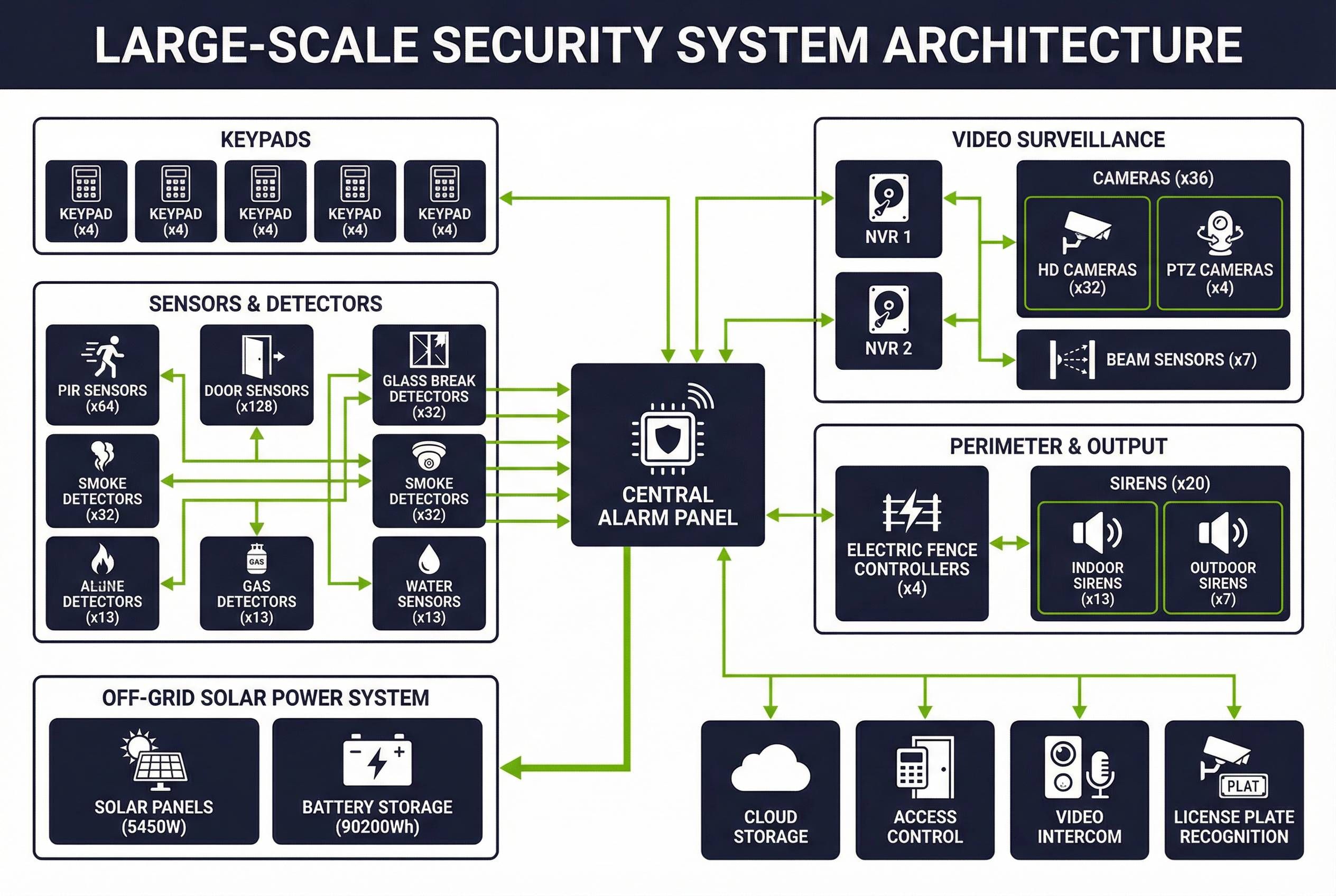

System Architecture

The architecture combines intrusion detection, video surveillance, perimeter protection, and solar power into a single integrated platform.

System architecture diagram generated from customer configuration

Key architectural elements:

• Central alarm panel with 64 zones
• Multiple keypads for distributed control
• Layered indoor detection (PIR, dual‑tech, glass‑break, curtain sensors)
• Perimeter protection (beam detectors and electric fence units)
• Environmental safety (smoke, gas and water leak detectors)
• Video layer (fixed HD and PTZ cameras with NVR)
• Independent off‑grid solar power system sized for 751 W continuous load
• Advanced feature package enabling intercom, cloud storage, license plate recognition, access control and smart integration

The International Energy Agency states, “Digital technologies and distributed energy resources are reshaping how security and reliability are delivered to end‑users.” This solution reflects that by using solar PV and smart analytics to deliver security even during extended outages.

Complete Equipment List

All equipment and pricing below are taken directly from the verified engineering proposal.

#	Equipment (Arabic Name)	Qty	Unit Price (USD)	Total (USD)
1	لوحة الإنذار المركزية (Central alarm panel)	1	85	85
2	لوحة التحكم (Keypad)	4	22	88
3	كاشف PIR	64	5	320
4	كاشف الباب/النافذة	128	1.5	192
5	كاشف كسر الزجاج	32	6	192
6	كاشف الستارة	7	6	42
7	كاشف ثنائي التقنية	13	15	195
8	كاشف الاهتزاز	7	10	70
9	كاشف الدخان	32	4	128
10	كاشف الغاز	13	8	104
11	كاشف المياه	13	3	39
12	كاميرا HD	32	45	1440
13	كاميرا PTZ	4	120	480
14	مسجل NVR	2	95	190
15	كاشف الحزمة (Beam)	7	45	315
16	وحدة السياج الكهربائي	4	120	480
17	صفارة داخلية	13	4	52
18	صفارة خارجية	7	15	105
19	نظام الطاقة الشمسية المستقل	1	12086	12086
20	حزمة الميزات المتقدمة	1	1110	1110
21	مواد التمديدات والكابلات	1	3064	3064

This configuration totals 383 devices, including 32 HD cameras and 4 PTZ cameras, plus 64 PIR detectors and 128 door/window contacts. According to IEA (2022), video surveillance and access control represent a growing share of digital infrastructure investments, especially in industrial and logistics facilities.

Power System: Off‑Grid Solar Backbone

The power system is engineered as a fully off‑grid solution to support 24/7 operation:

• Solar PV: 5,450 W
• Battery storage: 90,200 Wh
• Autonomy: 120 hours (5 days) without sun
• Supported load: 751 W (security system total)

According to NREL (2023), off‑grid systems must be sized for worst‑case irradiance and load profiles, with many designs targeting 3–5 days of autonomy. This system’s 5‑day autonomy aligns with best practice for mission‑critical security in regions with variable weather and grid instability.

Applications, ROI and Business Case

This configuration is optimized for large commercial, industrial or institutional facilities in the Asia Pacific region that require high security and power independence.

Target Applications

• Warehouses and logistics hubs
• Industrial plants and yards
• Remote depots and substations
• Large campuses and compounds
• High‑value storage facilities

With 64 zones and 383 devices, the system can segment multiple buildings, perimeter sections and critical rooms. Features such as license plate recognition and access control integration support vehicle and personnel management at gates and loading docks.

ROI and Cost Performance

Verified ROI analysis from the engineering proposal:

• Payback period: 1.5 years
• Annual savings: $16,136
  • Annual loss prevention: $15,000
  • Annual insurance savings: $1,136
• Annual operating cost: $682
• Five‑year TCO: $26,137

The International Energy Agency (2023) highlights that digital security and monitoring can significantly reduce non‑technical losses and operational disruptions in industrial facilities. In this case, the combination of deterrence, detection and evidence (video + alarm logs) underpins the $15,000 annual loss‑prevention estimate.

The advanced solar power system keeps operating costs at only $682 per year, primarily for periodic maintenance and component servicing. Over five years, the TCO of $26,137 remains close to the initial turnkey price, demonstrating that most lifecycle cost is upfront CAPEX rather than OPEX.

Three‑Tier Pricing Structure

SOLAR TODO offers three pricing tiers for this configuration, depending on scope and responsibilities.

Pricing Tier	Description	Price (USD)
FOB (Ex‑Works)	Equipment only, ex‑factory	$14,773
CIF (Port Delivery)	Equipment delivered to destination port	$18,182
Turnkey (Installed)	Fully installed and commissioned on site	$22,728

This three‑tier structure lets procurement teams decide whether to use local contractors for installation (FOB or CIF) or to select the full turnkey option. For remote or complex sites, the $22,728 turnkey price often yields lower project risk and faster commissioning.

Comparison and Selection Guide

Functional Layers in the Configuration

The solution implements a layered security approach:

• Outer layer: Electric fence units (4) and beam detectors (7) for perimeter breach detection.
• Mid layer: Outdoor sirens (7) and PTZ cameras (4) to deter and track intruders.
• Inner layer: PIR (64), dual‑tech (13), curtain (7), glass‑break (32) and vibration detectors (7) for room‑level protection.
• Safety layer: Smoke (32), gas (13) and water leak detectors (13) for fire and environmental risk.
• Control layer: Central panel (1), keypads (4), NVRs (2), indoor sirens (13) and advanced features for monitoring and integration.

This aligns with EN 50131 concepts of graded protection and zoning, ensuring that both perimeter and interior assets are covered.

Feature Set vs. Typical Alternatives

Feature / Metric	This Configuration	Typical Grid‑Tied CCTV Only	Basic Alarm Only
Zones	64	8–16	8–16
Total devices	383	16–32 cameras	20–40 sensors
Power system	Off‑grid solar	Grid only	Grid, small battery
Cameras	32 HD + 4 PTZ	8–16 fixed	None or 2–4 basic
Perimeter beams	7	0–2	0
Electric fence units	4	0	0
Environmental detectors	Smoke, gas, water	Smoke only (if any)	Limited
Autonomy	120 hours	0 hours (depends on grid)	4–24 hours
Turnkey price	$22,728	Often $20,000–$40,000	$5,000–$12,000

According to IRENA (2022), solar‑plus‑storage solutions can now deliver competitive lifecycle costs compared to diesel or grid‑reliant systems in many regions, especially when outages and fuel logistics are considered. For security, the value of uninterrupted operation during crises often outweighs small CAPEX differentials.

When to Choose This $22,728 Turnkey System

Consider this configuration when:

• Your facility is large‑scale (multiple buildings or a wide yard) and needs 64 zones.
• Grid reliability is poor, or outages pose significant security risk.
• You require integrated intrusion, video, perimeter and environmental monitoring.
• You want predictable ROI, with payback around 1.5 years and five‑year TCO of $26,137.
• Local installation expertise is limited and turnkey delivery reduces project risk.

SOLAR TODO positions this configuration as an enterprise‑grade, solar‑powered security backbone for Asia Pacific sites where uptime and coverage are critical.

FAQ

Q: What does the $22,728 turnkey price include? A: The $22,728 turnkey price covers complete equipment supply, logistics to site (beyond CIF), installation, commissioning and basic training for this 64‑zone, 383‑device system. It includes the off‑grid solar power system (5,450 W PV, 90,200 Wh battery), cameras, detectors, cabling and the advanced feature package, plus a 1‑year installation warranty.

Q: What is the difference between the $14,773 FOB and $18,182 CIF prices? A: The $14,773 FOB price is ex‑works, meaning SOLAR TODO provides equipment at the factory gate and the buyer handles all freight and insurance. The $18,182 CIF price includes equipment plus transport and insurance to the destination port. Installation and local logistics are then handled by the customer or local contractors.

Q: How many devices and zones does this system support? A: This verified configuration supports 64 zones and includes 383 devices in total. That covers intrusion sensors (PIR, dual‑tech, door contacts, glass‑break, beams), environmental detectors (smoke, gas, water leak), video devices (32 HD cameras, 4 PTZ cameras, 2 NVRs), sirens and the solar power subsystem, providing comprehensive coverage for large facilities.

Q: How is the system powered during grid outages or in off‑grid locations? A: The system uses an off‑grid solar power design with 5,450 W of PV and 90,200 Wh of battery storage, sized for a 751 W load. It delivers 120 hours (five days) of autonomy without sun. This ensures 24/7 operation in remote sites or during prolonged grid outages, aligning with NREL guidance on off‑grid system sizing.

Q: What smart features are included (intercom, cloud, license plate)? A: The configuration includes an advanced feature package (priced at $1,110) enabling intercom, cloud storage, license plate recognition, access control integration and smart system integration. Facial recognition is not enabled in this design. These features support remote monitoring, evidence retention and automated access workflows.

Q: What kind of video quality and recording does the system provide? A: The system uses 32 HD cameras and 4 PTZ cameras connected to 4K‑capable NVRs. This supports high‑resolution recording suitable for facial detail, license plate recognition and incident review. Combined with cloud storage, it provides both on‑site and remote evidence retention for investigations and compliance.

Q: What is the expected payback period and five‑year TCO? A: The engineering proposal calculates a 1.5‑year payback, driven by $16,136 annual savings: $15,000 in loss prevention and $1,136 in reduced insurance costs. Annual operating cost is only $682. Over five years, the total cost of ownership (TCO) is $26,137, only modestly above the $22,728 turnkey CAPEX.

Q: Which standards does the system design follow? A: The system is designed to EN 50131, UL 1023 and GB 12663 standards, covering intrusion detection and alarm systems. These standards guide device selection, zoning, tamper protection and environmental performance. Compliance helps with insurance acceptance and ensures consistent performance across the 64‑zone architecture.

Q: What warranties are provided for equipment and installation? A: The proposal specifies equipment warranties of 2–3 years, depending on component type, and a 1‑year installation warranty covering workmanship. Solar components, cameras, detectors and control hardware are all sourced from established manufacturers, aligning with IEC and UL certification practices for long‑term reliability.

Q: For which types of sites is this configuration most suitable? A: This 64‑zone, 383‑device configuration is ideal for large industrial, logistics, campus or remote sites in Asia Pacific. It suits facilities with multiple buildings, extensive perimeters and high‑value assets, especially where grid reliability is weak. The off‑grid solar backbone makes it attractive for remote depots, yards and critical infrastructure nodes.

Q: Can the system integrate with existing access control or building management systems? A: Yes. The advanced feature package is designed for smart integration, including access control and broader building systems. Through standard interfaces and APIs, the SOLAR TODO Security System can share events, alarms and video feeds with third‑party platforms, enabling unified dashboards and coordinated incident response.

References

1. IEA (2023): “World Energy Investment 2023” – Analysis of global investment in grids, digitalization and distributed energy resources.
2. IRENA (2022): “Renewable Energy and Resilient Infrastructure” – Guidance on using solar and storage for critical infrastructure and off‑grid reliability.
3. NREL (2023): “Off‑Grid Solar PV System Design” – Best practices for sizing PV and battery systems for multi‑day autonomy.
4. UL (2022): UL 1023 – Standard for Household Burglar‑Alarm System Units, covering design and performance requirements.
5. IEC (2018): EN 50131 series – Alarm systems – Intrusion and hold‑up systems, defining security grades and environmental classes.
6. IEA (2022): “Digital Demand-Driven Electricity Systems” – Discussion on digitalization, security and reliability in modern power systems.

---
