Belo Horizonte Solar Streetlight (Split-Type) Market Analysis: 442-Unit 7m Configuration Guide for 8m Roads

Summary

A typical Belo Horizonte deployment for 8 m urban roads would use approximately 442 split-type solar streetlights at 21 m spacing, with 7 m poles, 60 W LED heads, and 3-5 days of battery backup under about 4.0 peak-sun-hours.

Key Takeaways

• Belo Horizonte has about 2.3 million residents, and the wider metro area exceeds 5 million, which supports sustained demand for lighting on collector roads, parks, and peripheral access corridors according to IBGE (2022).
• At latitude -19.92, Belo Horizonte sits in a favorable solar belt; a temperate operating profile with roughly 4.0 h effective sun supports dusk-to-dawn lighting with 3-5 cloudy days of backup.
• For an 8 m road width and 21 m spacing, a typical 442-unit deployment would fit a 7 m pole class with 60 W LED output at 9,000 lm and smart dimming control.
• The specified configuration uses a 680 W Mono TOPCon panel with 23% efficiency and 0.3%/year degradation, which is materially higher than the standard 100 W class usually paired with 50-60 W fixtures.
• The battery arrangement is 12 V/150 Ah NCM lithium, externally mounted in a visible pole-mounted box, with about 2,000 cycles, 85% DoD, and a 5-year warranty.
• Stainless steel 304 poles at 7 m with 50 m/s wind resistance and 40-year design life suit Belo Horizonte's urban corrosion profile better than untreated carbon steel in exposed public areas.
• According to IEA (2022), LED streetlighting can reduce electricity use by 50% or more versus legacy fixtures; off-grid solar designs can also avoid trenching and utility connection delays.
• SOLAR TODO should be specified here as a split-type system only: top-mounted tilted panel, side-arm LED below the panel, external battery box, and all wiring routed inside the pole.

Market Context for Belo Horizonte

Belo Horizonte combines a population of roughly 2.3 million with dense urban mobility corridors, making resilient public lighting a practical requirement for secondary roads, neighborhood connectors, and public-space safety. According to IBGE (2022), Belo Horizonte is one of Brazil's largest municipalities, while the metropolitan region exceeds 5 million residents, increasing pressure on municipal lighting networks and expansion zones.

The city sits near latitude 19.92°S and longitude 43.94°W, a solar resource zone that supports year-round photovoltaic generation, although rainy-season cloud cover still requires battery autonomy planning. According to NASA POWER (2024), southeastern Brazil commonly records annual average solar resource levels that support daily PV charging, and the project brief's 4.0 h sun assumption is a conservative design basis for public-lighting calculations.

Belo Horizonte also operates in a mixed topographic environment with slopes, arterial crossings, and dense built-up neighborhoods, which affects pole siting, foundation alignment, and maintenance access. According to the Prefeitura de Belo Horizonte mobility and urban planning publications (2023), the city continues to prioritize road safety, public-space accessibility, and urban service coverage, all of which favor lighting systems that can be installed without repeated cable trenching across paved streets.

From a utility perspective, Brazil's public-lighting networks are generally tied to low- and medium-voltage distribution systems, but off-grid solar streetlighting is often selected where grid extension, metering, or civil works add disproportionate cost. According to ANEEL (2023), distribution expansion and service reliability remain key municipal concerns across Brazil, especially where lighting points are dispersed or retrofit works would interrupt traffic. That is why SOLAR TODO's Solar Streetlight (Split-Type) format is commercially relevant in Belo Horizonte: it reduces dependence on feeder availability while keeping the luminaire, controller, battery, and panel as separately serviceable components.

Two public-sector standards are especially relevant in this market. CJJ 45-2015 provides practical design guidance for urban road lighting layouts and performance, while IEC 60598 covers luminaire safety and IEC 62124 provides PV system performance guidance for stand-alone applications. As the IEC states, "Luminaires shall be designed and constructed so that in normal use they function safely," a baseline requirement for municipal procurement under IEC 60598.

Recommended Technical Configuration

For Belo Horizonte's 8 m road profile, a typical 442-unit deployment would use 7 m split-type poles with 60 W LED fixtures at 21 m spacing, while the specified 680 W panel and 12 V/150 Ah battery create a higher-autonomy configuration than the standard 50-60 W size class.

Based on the product engineering table, the closest standard size class for a 60 W fixture is the 50-60 W LED | 100 W panel | 12 V/100 Ah | 7-8 m pole arrangement used on community roads and parking areas. That class matches the road function and pole height in Belo Horizonte. However, the project-specific configuration provided here intentionally increases generation and storage margins with a 680 W panel and 12 V/150 Ah battery to support 3-5 cloudy days, remote monitoring loads, and conservative charging in a 4.0 h sun profile.

A typical 442-unit deployment of this scale would therefore consist of split-type poles only, not all-in-one fixtures. The correct physical arrangement is critical: the solar panel sits at the very top on a tilted bracket, the pole does not pass through the panel center, the LED head is mounted on a side arm below the panel, and the battery box remains externally mounted on the pole body. All DC and control wiring should run inside the pole, with no visible external cables on the pole surface.

For Belo Horizonte, stainless steel 304 is a rational pole choice because it balances corrosion resistance, public-facing appearance, and long service life in humid and polluted urban conditions. The specified 7 m pole with 50 m/s wind resistance and 40-year life is suitable for open road sections, plazas, and bus-access streets where gust loading and vandal resistance matter. According to IEC structural and luminaire practice, wind exposure and bracket loading should be checked together, not as isolated component values.

The LED specification of 60 W and 9,000 lm implies 150 lm/W efficacy, which is consistent with efficient municipal roadway lighting when coupled with dimming schedules. Belo Horizonte typically benefits from adaptive dimming after midnight because traffic density falls outside major corridors. According to IEA (2022), connected LED controls can significantly reduce operating energy beyond the base efficiency gain of LED conversion itself.

SOLAR TODO should position this configuration as a high-margin autonomy design rather than a minimum-cost design. The 680 W TOPCon module is far above the standard table's 100 W pairing for 60 W LED systems, but that does not create a functional mismatch in the same way as pairing an undersized panel with an oversized load. In this guide, the larger panel should be understood as a resilience-oriented specification driven by cloudy-backup requirements, communication loads from 4G/LoRa monitoring, and low-risk battery recovery after poor-weather sequences.

For buyers comparing options, the recommended use case is clear: neighborhood roads, municipal access lanes, public institutions, peripheral connectors, and parking edges with 8 m carriage width. For expressways or high-speed main roads, the 120 W class with 10-12 m poles would normally be the correct engineering step-up. For footpaths and gardens, the 30 W class on 6 m poles would be more economical.

Technical Specifications

The Belo Horizonte reference configuration is a 442-unit split-type system using 7 m stainless steel poles, 60 W LED luminaires, 680 W TOPCon panels, and 12 V/150 Ah NCM batteries for 3-5 days of autonomy.

• Product type: Solar Streetlight (Split-Type), not integrated and not all-in-one
• Quantity basis: approximately 442 units for a typical project scale of this road profile
• Pole material: stainless steel 304
• Pole height: 7 m
• Wind resistance: 50 m/s
• Pole life: 40 years
• Road width basis: 8 m
• Pole spacing: 21 m
• Solar module: 680 W Mono TOPCon
• Panel efficiency: 23%
• Panel degradation: 0.3% per year
• Panel warranty: 30 years

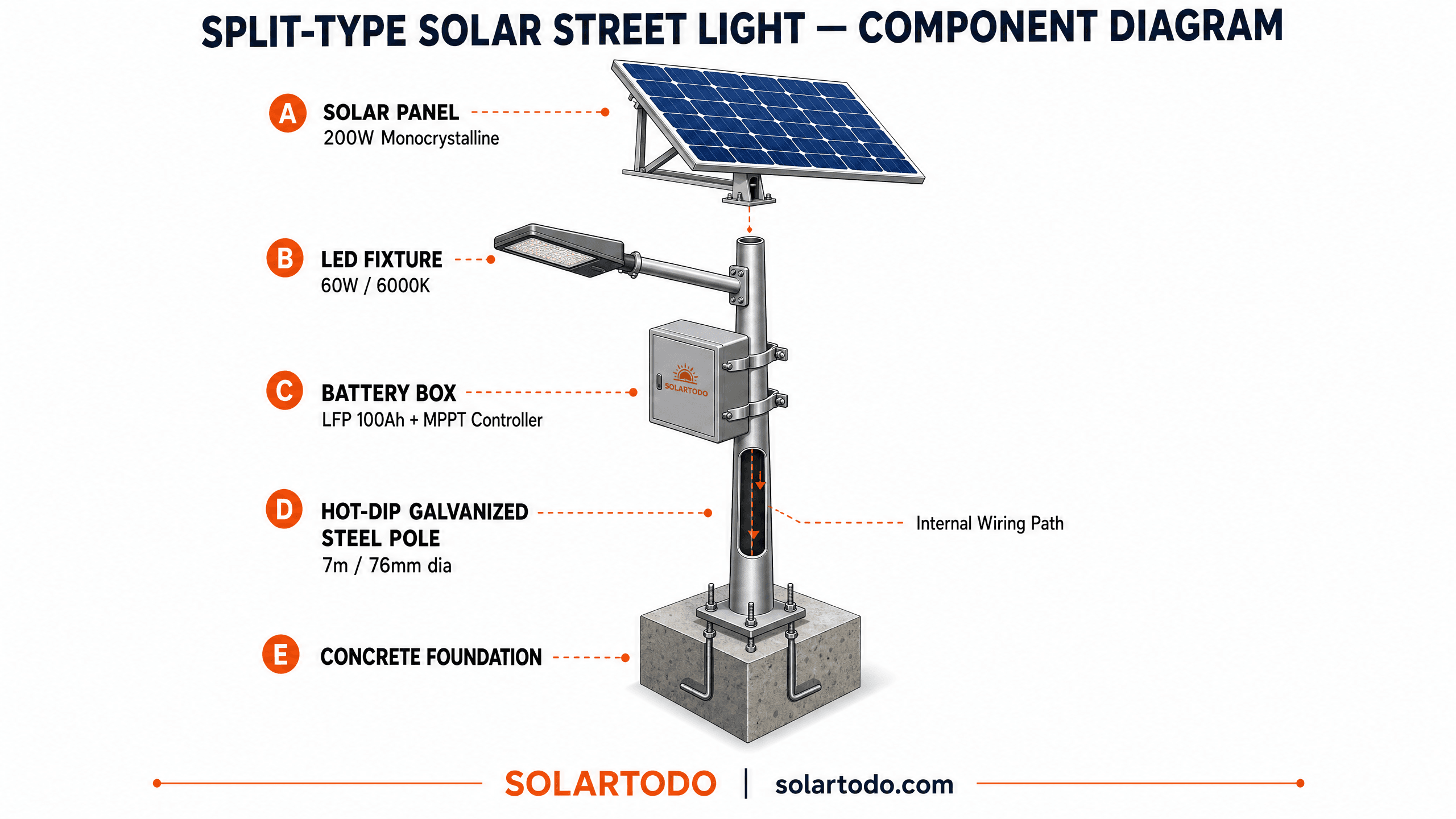

• Panel position: mounted on a tilted bracket at the very top of the pole
• Panel geometry rule: pole does not penetrate through the panel center
• LED fixture power: 60 W
• Luminous flux: 9,000 lm
• Luminous efficacy: 150 lm/W
• CRI: greater than 70
• LED mounting: side arm below the solar panel
• Battery chemistry: NCM lithium
• Battery rating: 12 V/150 Ah
• Battery energy density: 250 Wh/kg
• Battery cycle life: 2,000 cycles
• Battery depth of discharge: 85%
• Battery warranty: 5 years
• Battery box position: externally mounted on the pole body as a visible grey box
• Controller type: MPPT controller inside battery box
• Wiring method: all wiring inside the pole, with no visible external cables
• Backup autonomy: 3-5 cloudy days
• Operating mode: dusk-to-dawn automatic control
• Smart functions: dimming control and remote monitoring via 4G/LoRa
• Climate basis: temperate, 4.0 h sun
• Applicable standards: CJJ 45-2015, IEC 60598, IEC 62124

This specification should be read as a city-fit recommendation, not as a record of a past installation. It also differs from the standard 50-60 W size class by using a much larger PV module and battery reserve. That higher headroom is suitable when municipal buyers prioritize autonomy, reduced maintenance visits after cloudy periods, and stronger monitoring uptime.

Implementation Approach

A 442-unit Belo Horizonte rollout would typically be executed in 4 phases over about 12-20 weeks, depending on permitting, civil access, and import lead times.

Phase 1 is design validation and bill-of-material confirmation. This usually takes 2-4 weeks and includes lighting layout checks for 21 m spacing on 8 m roads, foundation design based on local soil conditions, communications planning for 4G/LoRa coverage, and compliance review against CJJ 45-2015 and IEC 60598. At this stage, SOLAR TODO would normally confirm bracket orientation, battery box height, and anti-theft fasteners.

Phase 2 is procurement and logistics. For imported components, buyers should allow about 4-8 weeks depending on Incoterms, customs handling, and whether the order ships as complete assemblies or semi-knocked-down kits. Stainless steel 304 poles, 680 W TOPCon modules, NCM batteries, and controllers should be packed to avoid transit damage to brackets, cable glands, and battery enclosures.

Phase 3 is civil works and erection. Typical municipal practice includes excavation, anchor cage placement or direct-foundation casting, curing, pole erection, luminaire installation, and battery-box mounting. Because all wiring is internal, installers need pre-fed conduits and pull-wire planning before final pole standing. For 442 units, crews often work in parallel blocks of 20-40 poles per week depending on traffic-control constraints.

Phase 4 is commissioning and acceptance. This includes MPPT controller parameter checks, dusk-to-dawn operation verification, dimming schedule setup, remote-monitoring registration, and sample lux validation on the 8 m carriageway. According to IEC 62124 guidance for stand-alone PV systems, field verification should include charging behavior, battery protection settings, and system operation under representative environmental conditions.

Expected Performance & ROI

For Belo Horizonte, a 60 W split-type solar streetlight with smart dimming would typically deliver full-night lighting with 3-5 days of backup while avoiding grid electricity charges and much of the trenching cost tied to conventional poles.

The main ROI driver is not only energy savings but avoided infrastructure cost. A grid-tied streetlight often requires trenching, conduit, cabling, metering, utility coordination, and pavement reinstatement. In dense urban streets, those civil works can be a larger budget line than the luminaire itself. An off-grid split-type system shifts cost toward equipment but reduces recurring utility bills and many connection-related delays.

According to IEA (2022), LED street lighting can cut electricity consumption by at least 50% compared with conventional sodium or mercury systems, and controls can add further reductions. According to NREL (2021), PV-powered stand-alone lighting can be cost-effective where trenching and line extension are expensive or operationally disruptive. This is relevant in Belo Horizonte's built-up neighborhoods, where restoring asphalt, sidewalks, and drainage crossings can materially affect project economics.

Battery replacement remains a lifecycle cost. The specified NCM battery is rated for about 2,000 cycles at 85% DoD and carries a 5-year warranty, so buyers should budget for midlife battery renewal before the 30-year PV module life and 40-year pole life end. The TOPCon module's 0.3% annual degradation is favorable for long-term output retention, which helps maintain battery recharge margins as the system ages.

A practical municipal payback range would depend on local labor rates, trenching scope avoided, and whether the comparison baseline is old HID lighting or new grid LED poles. In Latin American public-space retrofits, solar streetlights often show stronger economics in peripheral roads, parks, and expansion areas than in dense central boulevards with existing duct banks. For Belo Horizonte, the strongest financial case is usually where utility connection is slow or where road opening permits are costly.

As IRENA states, "Solar PV has become one of the most competitive sources of electricity in many parts of the world." In streetlighting, that competitiveness is amplified when the alternative includes civil works, not only kilowatt-hours. Similarly, the IEA notes that "digitalization and controls improve the efficiency of lighting systems," which supports the inclusion of dimming control and 4G/LoRa monitoring in this configuration.

Results and Impact

For Belo Horizonte, a 442-unit split-type lighting program would primarily improve roadway visibility, reduce dependence on utility extensions, and create a maintainable asset base with separate serviceable components over a 30-40 year structural horizon.

The operational impact would likely be strongest on secondary roads and public-access corridors where lighting gaps affect safety but grid extension is slow. A split-type architecture is useful because the panel, luminaire, controller, and battery can each be replaced independently. That generally improves long-term maintainability versus compact all-in-one products when municipalities manage assets over 10-15 year budget cycles.

The smart-control layer also matters. Dimming control can reduce overnight energy draw by about 15% under scheduled operation, while remote monitoring cuts fault-detection time and helps maintenance teams prioritize battery, controller, or fixture issues. For Belo Horizonte, that is relevant where service teams cover dispersed neighborhoods rather than a single central district.

Comparison Table

The table below compares the Belo Horizonte reference configuration with standard size classes used for other road types, showing why the 7 m / 60 W class is the closest fit for 8 m roads.

Application profile	Pole height	LED power	Panel size	Battery	Typical spacing/use	Fit for Belo Horizonte 8 m road
Walkway / garden path	6 m	30 W	60 W	12 V/60 Ah	Paths, parks, low-speed lanes	Undersized for 8 m road width
Community road / parking standard class	7-8 m	50-60 W	100 W	12 V/100 Ah	Community roads, parking	Closest standard class
Belo Horizonte reference configuration	7 m	60 W / 9,000 lm	680 W TOPCon	12 V/150 Ah NCM	21 m spacing, 8 m road	Recommended where autonomy margin is prioritized
Secondary road / plaza	8-10 m	80 W	150 W	24 V/100 Ah	Broader carriageways, plazas	Higher class than needed
Main road / highway	10-12 m	120 W	200 W	24 V/150-200 Ah	Main roads, highways	Not economical for this road type

Pricing & Quotation

SOLAR TODO offers three pricing tiers for this product line: FOB Supply (equipment ex-works China), CIF Delivered (including ocean freight and insurance), and EPC Turnkey (fully installed, commissioned, with 1-year warranty). Volume discounts are available for large-scale deployments. Configure your system online for an instant estimate, or request a custom quotation from our engineering team at [email protected].

For Belo Horizonte buyers, quotation accuracy depends on 4 variables: foundation type, freight mode, customs treatment, and communications scope for 4G/LoRa monitoring. A useful RFQ should include road width, pole spacing, wind-speed basis, autonomy target in days, and whether remote monitoring is required at every pole or only in grouped zones. Buyers can review the product line at Solar Streetlight (Split-Type) or contact us with layout drawings for a technical review.

Frequently Asked Questions

A Belo Horizonte buyer usually needs answers on sizing, autonomy, installation time, maintenance, warranty, and commercial scope before issuing an RFQ for a 442-unit split-type streetlighting package.

Q1: Why is split-type recommended instead of all-in-one for Belo Horizonte?

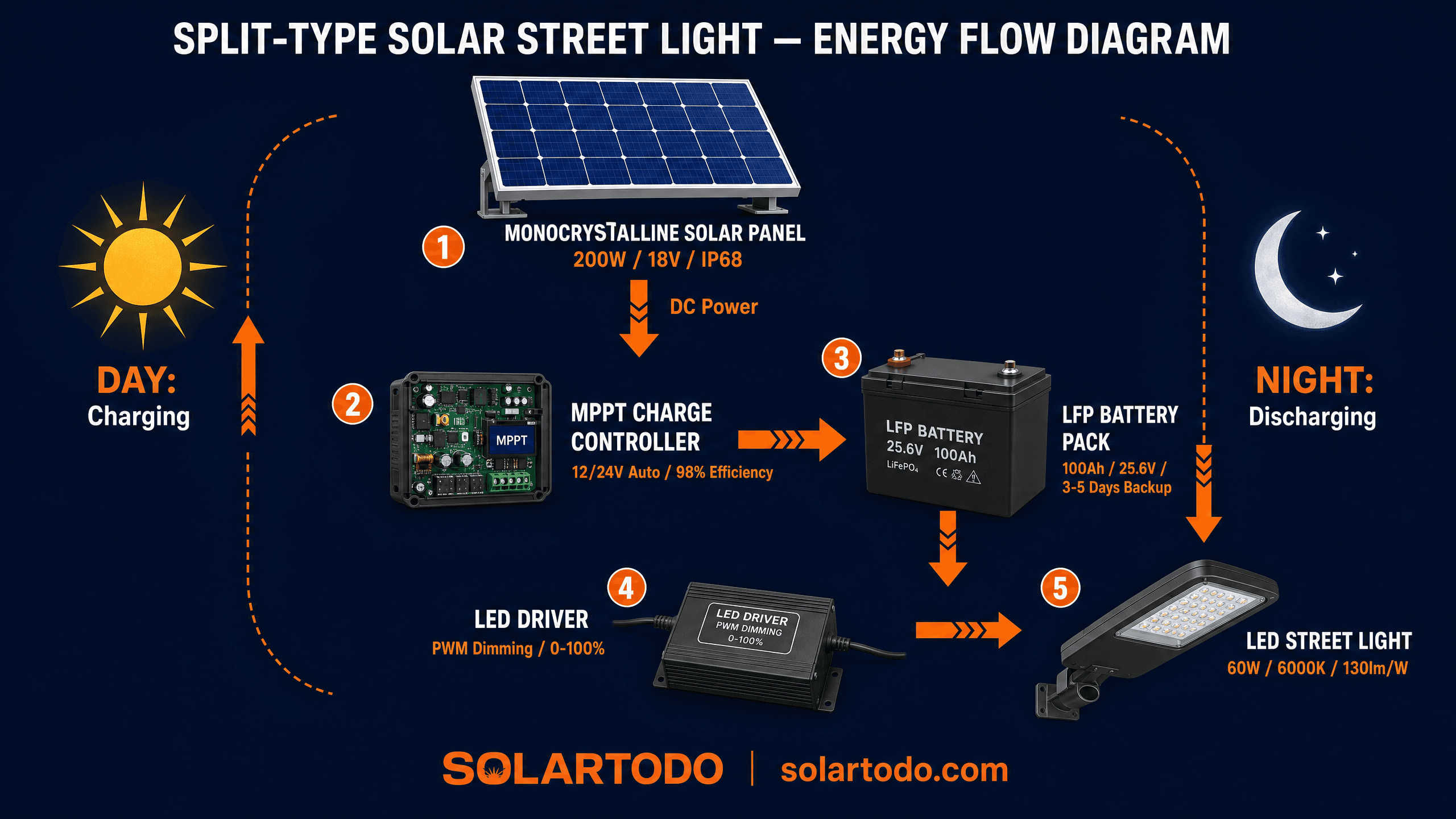

Split-type systems separate the panel, battery, controller, and LED fixture, which helps maintenance over 5-10 years. In Belo Horizonte, that matters on municipal roads where replacement of one failed part is cheaper than replacing a sealed integrated unit. It also supports larger batteries and larger panels, such as 12 V/150 Ah and 680 W.

Q2: Is a 7 m pole with 60 W LED enough for an 8 m road?
Yes, for many community roads and secondary urban lanes, 7 m with 60 W is an appropriate class, especially at 21 m spacing. The 9,000 lm output and side-arm mounting below the panel support practical roadway coverage. Final lux compliance should still be checked against the municipality's target lighting class.

Q3: Why does this configuration use a 680 W panel when the standard table shows 100 W for 50-60 W lights?
This is a resilience-oriented specification, not a minimum-material design. The larger 680 W panel increases charging headroom under a 4.0 h sun profile, supports 3-5 cloudy days of backup, and offsets communication and control loads. It is suitable where uptime matters more than lowest first cost.

Q4: How long would a 442-unit project typically take?
A realistic range is about 12-20 weeks after design approval, depending on import lead time, customs, and civil access. Design validation often takes 2-4 weeks, logistics 4-8 weeks, and field installation 4-8 weeks. Traffic management and pavement access permits can extend the schedule.

Q5: What maintenance should municipal teams expect?
Routine maintenance usually includes panel cleaning, bracket and fastener inspection, battery health checks, controller log review, and occasional luminaire replacement. With remote monitoring, fault detection is faster and truck rolls are reduced. The NCM battery should be treated as a planned replacement item within the broader 30-40 year asset life.

Q6: What is the expected payback period?
Payback depends on avoided trenching, local utility tariffs, labor rates, and the baseline alternative. Where grid connection requires road opening, conduit, and metering, payback can be materially shorter than in streets with existing ducts. The strongest business case is usually in peripheral roads, parks, and new urban extensions.

Q7: How does NCM compare with LiFePO4 for this application?
NCM offers higher energy density, here specified at 250 Wh/kg, which helps keep the external battery box compact on a 7 m pole. LiFePO4 usually offers longer cycle life, often around 3,500 cycles, but with lower energy density. For this specification, NCM is chosen for compactness and adequate 2,000-cycle life.

Q8: What standards should procurement teams ask suppliers to meet?
At minimum, the RFQ should reference CJJ 45-2015 for road-lighting layout guidance, IEC 60598 for luminaire safety, and IEC 62124 for stand-alone PV performance evaluation. Buyers should also ask for wind-load calculations for 50 m/s, battery protection settings, and documentation that all wiring is internal to the pole.

Q9: What warranty structure is typical for this configuration?
The provided specification indicates 30 years for the TOPCon panel and 5 years for the NCM battery. Pole life is stated as 40 years, though structural life is not the same as commercial warranty. Buyers should request separate warranty terms for the luminaire, controller, communications module, and corrosion finish.

Q10: Can the system connect to remote monitoring platforms?
Yes. This configuration includes 4G/LoRa remote monitoring, which supports status reporting, fault alerts, and dimming schedule management. For Belo Horizonte, coverage mapping should be done before procurement so that low-signal streets do not create blind spots in the asset-management system.

References

1. IBGE (2022): Population estimates and municipal demographic data for Belo Horizonte and the metropolitan context.
2. Prefeitura de Belo Horizonte (2023): Urban mobility, planning, and public-space management publications relevant to road infrastructure and lighting demand.
3. ANEEL (2023): Brazilian electricity distribution and public utility regulatory framework affecting municipal lighting and connection conditions.
4. NASA POWER (2024): Solar resource data used to contextualize Belo Horizonte's PV charging conditions and the 4.0 h sun design assumption.
5. IEA (2022): Energy efficiency and digital lighting guidance, including LED savings potential and control-system benefits.
6. IRENA (2023): Solar PV cost and competitiveness outlook relevant to off-grid and stand-alone public infrastructure.
7. IEC (2020): IEC 60598 luminaire safety requirements and IEC 62124 guidance for stand-alone PV system performance evaluation.

Equipment Deployed

• 442 × Solar Streetlight (Split-Type), not integrated/all-in-one
• 7 m stainless steel 304 pole, 50 m/s wind resistance, 40-year life
• 680 W Mono TOPCon solar panel, 23% efficiency, 0.3%/year degradation, 30-year warranty
• 60 W LED luminaire, 9,000 lm, 150 lm/W, CRI >70
• 12 V/150 Ah NCM lithium battery, 250 Wh/kg, 2,000 cycles, 85% DoD, 5-year warranty
• External pole-mounted grey battery box with internal MPPT controller
• Side arm luminaire mounting below top-mounted tilted solar panel
• All wiring routed inside pole, no visible external cables
• Smart dimming control
• 4G/LoRa remote monitoring module
• Dusk-to-dawn automatic control
• 3-5 days cloudy-weather backup design
