3.5m Park Pathway Garden Light 20W - 4-Day LFP Solar Lighting

The 3.5m Park Pathway Garden Light 20W is a standard split-type solar street light designed for pedestrian-scale illumination where a 3.5m pole height, 20W LED engine, 40Wp solar module, and 150Wh LiFePO4 battery provide balanced performance in temperate climates with 4 rainy-day autonomy. This configuration targets 12 hours per night dusk-to-dawn operation, 4000K neutral white light, and low-maintenance service life for parks, pathways, residential gardens, campuses, and public open spaces. For buyers comparing options, this model sits in the practical middle of the category between compact 10W bollard-style units and larger 30W-60W roadway luminaires.

Product Positioning and Use Case

In the solar-streetlight product line, this variant is optimized for low-speed and pedestrian environments where mounting height is typically between 3m and 4m, spacing is often 12m to 18m, and target average illuminance is commonly 5 lux to 15 lux depending on site geometry. The 20W LED output is appropriate for pathway widths of roughly 2m to 5m, park circulation routes, community greenways, and landscape roads where glare control matters as much as brightness. Buyers can View all Solar Street Light products to compare this 3.5m garden model with taller 5m, 6m, and 8m roadway systems.

Core Electrical and Mechanical Configuration

This system combines a 40Wp monocrystalline TOPCon solar panel with module efficiency in the 19% to 23% range, a 150Wh LFP battery pack, and a high-efficacy LED luminaire using mainstream chips such as Bridgelux, Cree, or Lumileds with efficacy above 170 lm/W at package level. Using a realistic optical and driver system factor, the delivered fixture output for a 20W class garden light is typically around 2,800 lm to 3,200 lm, which is suitable for pedestrian zones where pole spacing and beam distribution are designed correctly. The pole is specified as aluminum alloy, which is about 30% lighter than comparable galvanized steel in installed mass terms and improves corrosion resistance in landscaped environments with irrigation exposure.

Technical Specifications

For procurement and engineering review, the nominal configuration is 3.5m pole height, 20W LED power, 3,000 lm luminous flux, 40Wp solar panel, 150Wh LiFePO4 battery, 4 rainy days autonomy, aluminum alloy pole material, 120 km/h wind resistance, -20°C to +55°C operating temperature, 12h/day lighting time, 3-year system warranty, and 5-year pole warranty. The battery chemistry is LFP, selected for 2,000+ deep cycles, strong thermal stability, and lower fire risk than many high-energy chemistries. The controller uses MPPT with efficiency above 98%, plus programmable dimming curves and optional 4G/LoRa telemetry.

System Architecture

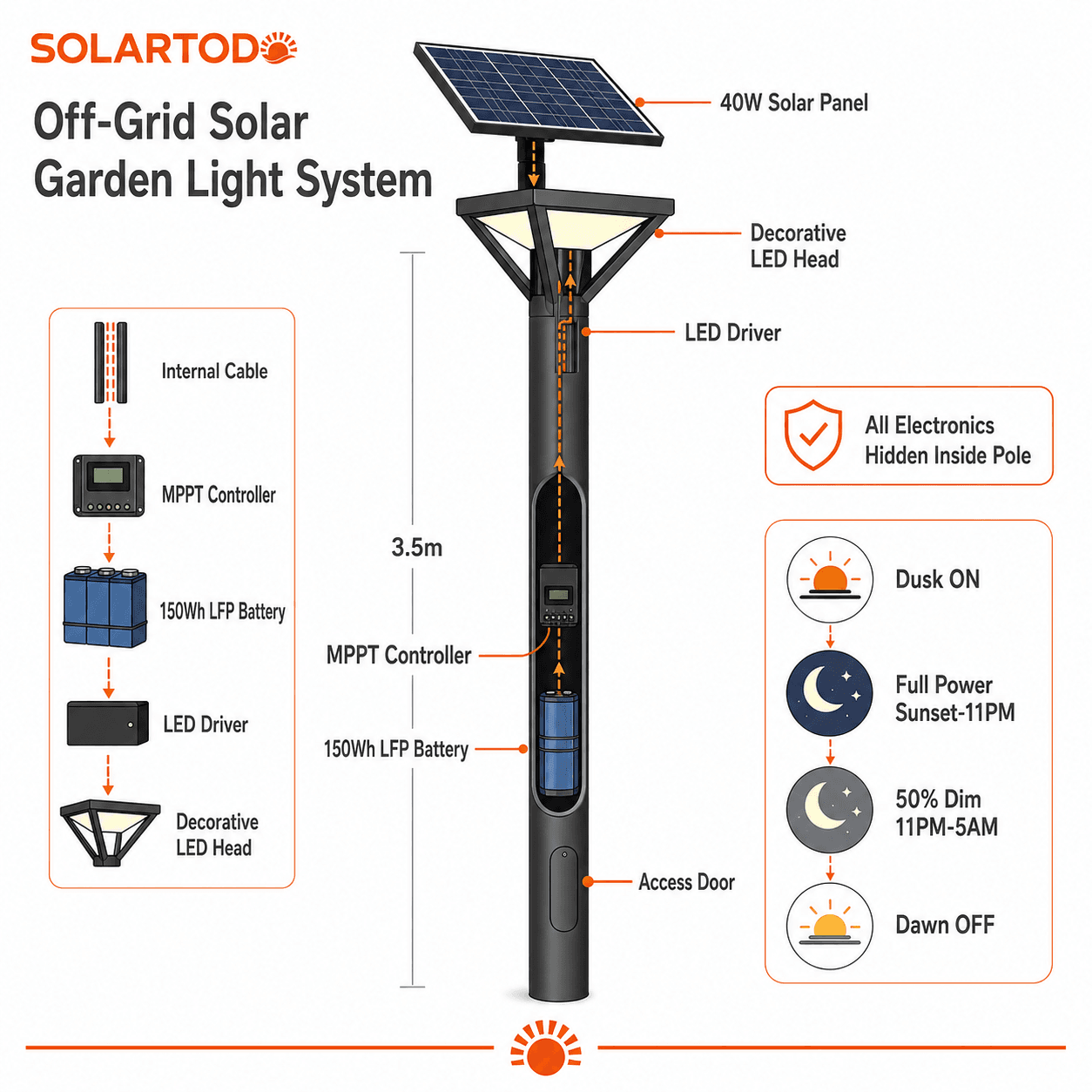

The architecture follows a separate-component solar street light design rather than an all-in-one body, which improves thermal separation between the LED driver, battery, and PV module. In practical terms, split architecture can reduce battery heat stress by 5°C to 15°C compared with tightly integrated housings under strong daytime sun, which helps preserve cycle life. The 40Wp panel charges the 150Wh battery through an MPPT controller sized to maximize winter harvest in temperate regions, while the 20W luminaire is scheduled for dusk-to-dawn operation with dimming profiles such as 100% for 4 hours, 50% for 6 hours, and 30% for the final 2 hours, or PIR-triggered brightening.

Lighting Performance for Pathways and Parks

At 3.5m mounting height, a modern minimalist garden light with a well-designed lens can provide a practical beam spread for pedestrian circulation without the excessive forward throw expected from roadway cobra heads mounted at 6m to 10m. In many park layouts, designers use spacing around 4x to 5x mounting height, meaning approximately 14m to 17.5m between poles, although exact spacing depends on beam angle, path width, surrounding reflectance, and local code. A 4000K color temperature supports visual comfort and color recognition better than very warm 2700K in security-sensitive spaces, while producing less perceived harshness than 5700K to 6500K cool white luminaires.

Solar Generation and Energy Balance

The daily energy model is intentionally conservative. A 40Wp panel in a temperate climate with average effective sun hours of 3.5 to 4.5 hours/day can generate roughly 140Wh to 180Wh/day before controller and system losses. After MPPT and battery conversion losses of around 10% to 18%, usable stored energy can remain in the range of 115Wh to 160Wh/day, enough to sustain a 20W fixture when smart dimming is used. This balanced sizing aligns with off-grid PV design principles referenced by IEC 62124 for standalone PV system performance evaluation and by NREL field guidance on solar resource variability.

Battery Chemistry and Runtime Reliability

The 150Wh LiFePO4 battery is specified for 4 days of autonomy, which is important in temperate regions where winter irradiance can drop by 30% to 60% relative to summer months. LFP chemistry typically supports 2,000 to 4,000 cycles depending on depth of discharge and temperature, translating to approximately 5 to 10 years of practical service in solar lighting duty cycles. The integrated BMS provides over-charge, over-discharge, short-circuit, and low-temperature protection, helping maintain stable operation from -20°C to +55°C. Compared with legacy lead-acid systems, LFP can reduce replacement frequency by roughly 50% to 70% over a 10-year project horizon.

LED Source, Optics, and Lifetime

The luminaire uses high-efficacy LED chips from established supply chains such as Bridgelux, Cree, or Lumileds, with package efficacy above 170 lm/W and complete fixture life exceeding 50,000 hours. At 12 hours/day, that corresponds to more than 11 years before reaching the nominal lifetime threshold, though driver and battery maintenance schedules should still be planned earlier. The optical system is designed for pathway and garden applications rather than arterial roadways, which means lower mounting height, better visual comfort, and improved edge uniformity across 2m to 5m walking surfaces. Compliance alignment with IEC 60598 for luminaires and IP66/IP67 environmental sealing is standard for this class.

Pole Material and Structural Considerations

The 3.5m aluminum alloy pole is selected for reduced handling weight, good appearance in landscaped projects, and strong resistance to moisture, fertilizers, and routine irrigation splash. Using the reference installed cost of approximately $22 per meter, the pole contributes about $77 before accessories and foundation allocation. Structural design should still be verified for local wind maps, but a nominal rating of 120 km/h is appropriate for many municipal and campus environments. In comparison with hot-dip galvanized steel at roughly $16 per meter, aluminum alloy costs about 37.5% more per meter, but reduces transport weight and can improve long-term aesthetics in premium public spaces.

Smart Control and Cloud Monitoring

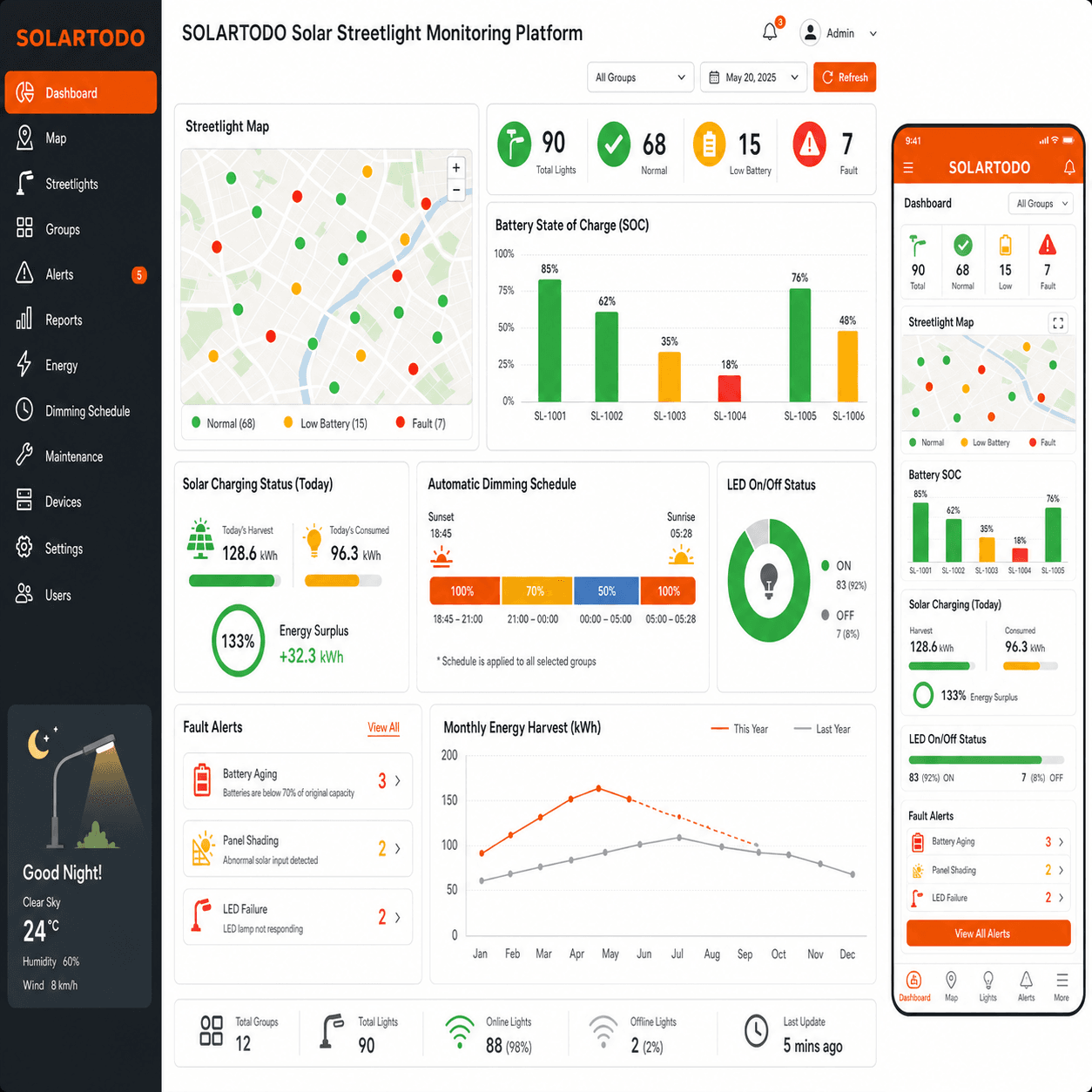

The standard controller supports MPPT efficiency above 98%, automatic dusk-to-dawn switching, programmable time-based dimming, and optional PIR motion adaptive dimming that can reduce energy consumption by up to 60% on low-traffic routes. Optional 4G or LoRa communication enables fault alarms, battery state-of-charge reporting, and remote schedule changes across fleets of 50, 100, or 500 lights. For project teams planning centralized management, you can Configure your system online and Learn about topic for controls, autonomy sizing, and solar lighting architecture.

Standards, Compliance, and Engineering References

This product is engineered around widely recognized technical frameworks including IEC 62124 for standalone PV system performance assessment and IEC 60598 for luminaire safety and construction. The PV module technology follows performance expectations associated with modern crystalline modules under standards such as IEC 61215 and IEC 61730, while enclosure design targets IP66/IP67 ingress protection. For project benchmarking, buyers frequently reference NREL for solar resource and off-grid system modeling, IRENA for renewable system cost trends, IEA for electrification and efficiency context, BloombergNEF for battery and PV cost trajectories, and Wood Mackenzie for supply-chain pricing signals. These references are relevant because a small 20W pathway light still depends on the same core physics, reliability, and lifecycle cost principles as larger off-grid systems.

Comparison with Conventional Grid-Powered Garden Lighting

Compared with a conventional 20W to 30W AC garden luminaire connected to underground cabling, this solar unit can eliminate 100% of trenching power cable for the lighting branch circuit and reduce civil disturbance significantly on landscaped sites. In many projects, trenching, conduit, cable, and electrical connection costs exceed the luminaire hardware cost by 1.5x to 3x, especially across long pathways of 200m to 1,000m. Operationally, the solar system can reduce grid electricity consumption by 100% for the lighting point and cut annual energy cost by about $13 to $26 per light assuming 0.15 to 0.30 USD/kWh, 20W nominal power, and 12h/night operation before dimming savings. Relative to a non-dimming AC light, motion-adaptive dimming can lower delivered energy use by another 30% to 60% depending on occupancy patterns.

Application Scenario

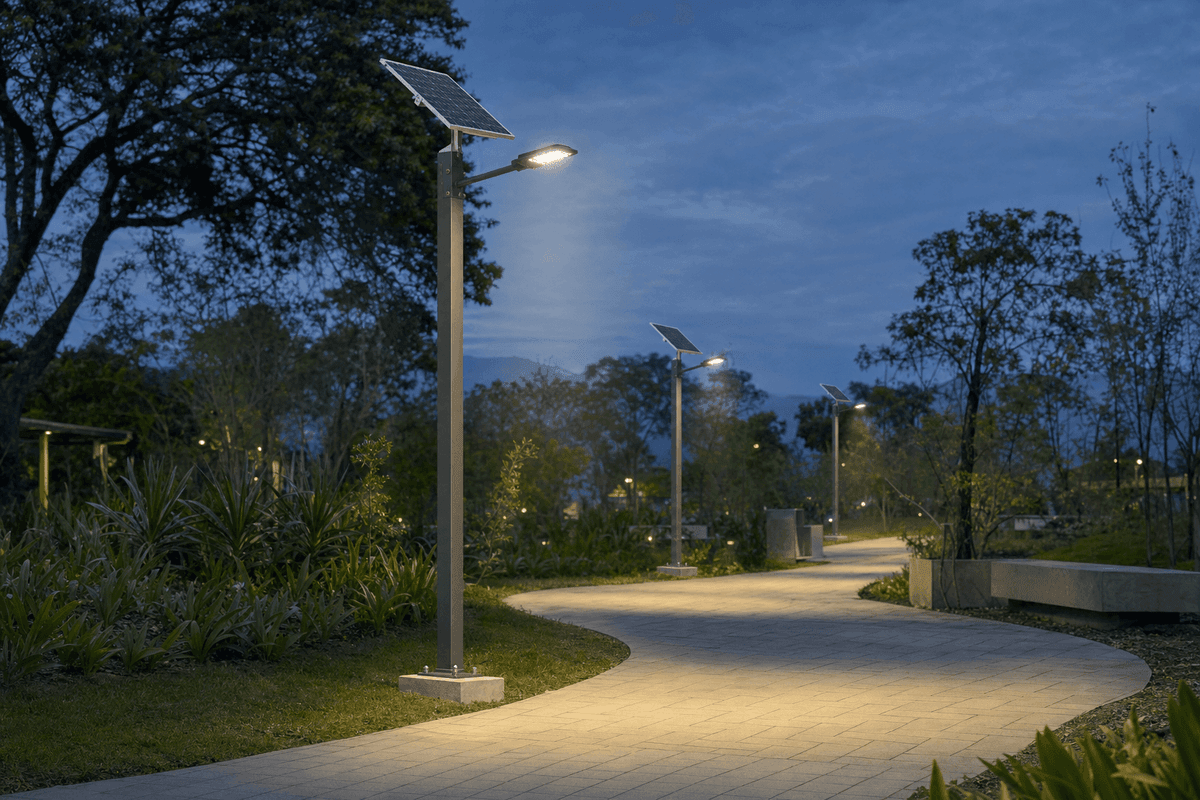

A municipal park operator in a temperate city deployed 84 units of 3.5m 20W solar garden lights along 1.2 km of pedestrian pathways, children’s play zones, and a 3,500 m² lakeside promenade. The design used average pole spacing of 15m, dimming at 100% for 4 hours and 40% for 8 hours, and achieved year-round operation with only 2 maintenance visits in the first 12 months. Compared with a grid-connected alternative requiring approximately 1,200m of trenching and cable, the project reduced installation time by about 35% and lowered first-year site disruption costs by more than 20%. Similar planning principles can be reviewed through Learn about topic and finalized via Request a custom quotation.

Installation and Maintenance Considerations

Typical installation involves a concrete foundation, anchor cage, pole erection, module mounting, battery/controller integration, and commissioning checks completed in roughly 1.5 to 2.5 labor-hours per unit depending on site access. For a 3.5m pole, the foundation requirement is lighter than for 6m to 10m roadway poles, but geotechnical conditions still matter. Maintenance is generally limited to lens cleaning every 6 to 12 months, bolt inspection every 12 months, and battery health verification through the controller interface. Because the panel is only 40Wp, keeping it free from leaf accumulation and dust can recover 5% to 15% of charging performance in shaded park environments.

EPC Investment Analysis and Pricing Structure

For B2B buyers, EPC means engineering, procurement, construction, commissioning, and warranty delivered as one package. Engineering covers lighting layout, autonomy sizing, structural checks, and cable-free site planning; procurement covers the 20W LED fixture, 40Wp TOPCon panel, 150Wh LFP battery, MPPT controller, 3.5m aluminum pole, and mounting hardware; construction covers foundation, assembly, erection, and testing; commissioning includes programming, lux verification, and handover documents; warranty includes 3 years for the system and 5 years for the pole. For quotation support, contact cinn@solartodo.com.

For volume procurement, standard commercial discounts can materially improve project economics. A purchase of 50+ units typically qualifies for 5% discount, 100+ units for 10%, and 250+ units for 15%, subject to final specification, destination port, and foundation scope.

ROI is usually strongest where grid extension is expensive. If a conventional alternative costs $260 to $480 per point installed after trenching, conduit, cable, and switching, this solar EPC solution at $130 to $200 can reduce initial capex by $60 to $280 per light. Annual electricity savings are often $13 to $26 per unit, and avoided periodic cable fault repairs may add another $5 to $15 per unit-year in difficult landscapes. On sites where trenching is substantial, simple payback versus grid-connected lighting can be immediate at commissioning; on retrofit sites with existing poles and wiring, payback may extend to 5 to 8 years depending on tariff and maintenance assumptions. Standard payment terms are 30% T/T + 70% against B/L, or 100% L/C at sight; financing support is available for projects above $1,000K.

Why This 20W / 3.5m Configuration Is Commercially Balanced

This variant is commercially balanced because the 20W / 40Wp / 150Wh / 3.5m combination avoids the overdesign often seen in decorative lighting while still maintaining 4-day autonomy. A smaller 10W to 15W system may struggle with winter reserve or pathway uniformity, while a 30W+ system can increase capex without proportional benefit on narrow pedestrian routes. The selected 4000K CCT, aluminum alloy pole, and modern minimalist form factor fit municipal, hospitality, campus, and residential developer specifications where appearance and lifecycle cost are weighted equally. For tailored photometric layouts, battery reserve adjustments, or smart-control options, use the links above to configure and quote the project.

Technical Specification Table
