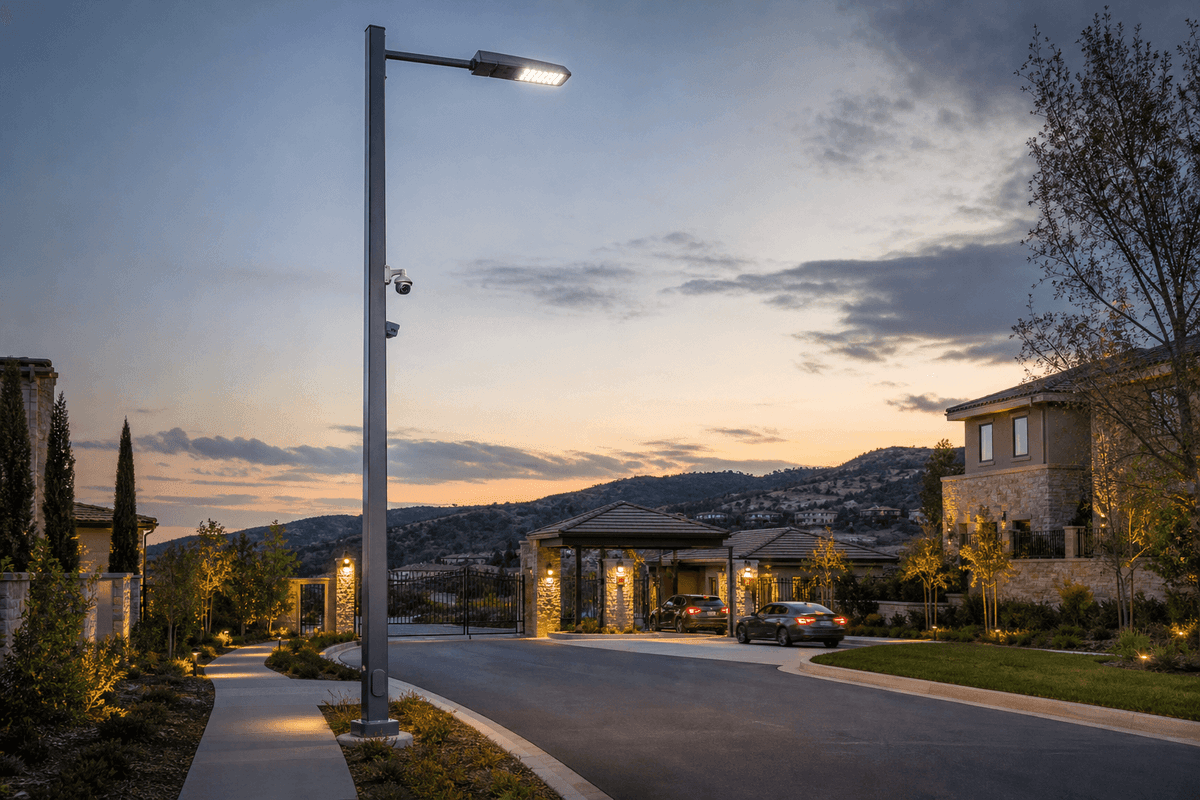

10m Community Entrance Security+Face Recognition - 120W Smart Streetlight

The 10m Community Entrance Security+Face Recognition unit is a 4-in-1 smart streetlight pole engineered for community gate security, access visibility, and digital connectivity in a single 10m structure. This configuration integrates 1 × 120W LED luminaire, 1 × AI security camera with face recognition, 1 × emergency call module, and 1 × WiFi access point on a square-tube, rectangular cross-section, continuous-tapered steel pole, providing a compact alternative to installing 4 separate roadside devices. For EPC buyers, the turnkey budget is typically USD 1,600-2,000 per pole, with operating temperatures from -40°C to +55°C, IP66 enclosure protection, and a 25-year design life.

For gated communities, mixed-use compounds, worker housing, schools, and private residential parks, entrance security often requires 3 operational functions at once: lighting for vehicle and pedestrian safety, identity verification for controlled entry, and communications for incident response. This model addresses those requirements with 1 coordinated pole platform rather than 3-4 isolated cabinets or posts, reducing civil works, trenching points, and maintenance interfaces by approximately 25%-40% compared with conventional fragmented deployments. According to the IEA and IRENA, integrated urban infrastructure and efficient LED lighting remain among the most cost-effective measures for reducing municipal and property operating costs, while IEC 60598 and IEC 62722 provide the core performance framework for outdoor luminaires used in such systems.

Product Positioning within the Smart Streetlight Line

Within the SOLARTODO Smart Streetlight (10-in-1 Multi-function Pole) family, this SKU is a focused security-oriented variant rather than a fully loaded 10-in-1 city boulevard pole. It uses 4 integrated modules selected for community entrance control, where face recognition, emergency communication, and visibility are more important than EV charging, environmental sensing, or digital signage. Buyers can View all Smart Streetlight (10-in-1 Multi-function Pole) products to compare this 10m security model with larger 8m, 10m, and 12m smart pole architectures for municipal roads, campuses, and mixed-use developments.

The structure follows the Legacy Variant D engineering logic for grid-powered multifunction poles, but in a simplified package aligned to community gate use. The pole is fabricated as a continuous tapered square-tube steel body with a rectangular section profile, typically using 3-6mm wall thickness depending on local wind zone, anchor design, and arm loading. In standard specification, the system is designed for wind resistance of approximately 150 km/h, matching common smart-pole engineering targets and supporting reliable operation under coastal, tropical, and desert-edge conditions when foundation design is correctly matched to soil bearing capacity.

Core Functional Configuration

This variant includes 4 primary systems. First, the 120W LED luminaire delivers roadway and entrance illumination at 170 lm/W, generating approximately 20,400 lumens for vehicle lanes, pedestrian checkpoints, and perimeter visibility. Second, the AI camera subsystem supports face recognition and entrance-event capture, with the broader smart pole platform supporting 4K imaging, 20x optical zoom in PTZ-capable configurations, and 50m IR night vision according to the common platform specification. Third, the emergency call module provides a direct assistance point for residents, visitors, guards, or delivery personnel. Fourth, the integrated WiFi module extends digital connectivity for guard stations, visitor management tablets, and resident access applications.

Because the modules are mounted on 1 shared pole, the project can reduce the number of standalone pedestals from 4 units to 1 unit at each entrance lane. In practical procurement terms, that often means 1 foundation instead of 3, 1 incoming power drop instead of 2-4, and 1 maintenance asset code instead of multiple OEM devices. For property developers managing 10 to 50 entry points, these reductions can materially lower installation complexity, spare-part inventory, and annual service visits.

Lighting Performance and Entrance Safety

The 120W LED luminaire is sized for entrance roads, checkpoint aprons, and queueing areas where illuminance uniformity is more important than decorative output. At 170 lm/W, the fixture produces about 20.4 klm, which is significantly more efficient than legacy high-pressure sodium systems that often operate in the 80-120 lm/W range at the system level. Compared with a conventional 150W sodium fixture, this LED solution can reduce lighting energy consumption by approximately 20%-35%, while improving color rendering and camera image quality for license plate and facial capture. This efficiency trend is consistent with findings published by NREL and the IEA on LED streetlighting upgrades.

The luminaire is designed to comply with IEC 60598 for luminaire safety and IEC 62722 for LED luminaire performance. In community entrance applications, these standards matter because the fixture typically runs 10-14 hours per day, or roughly 3,650-5,110 hours annually, under temperature swings, dust, rain, and occasional voltage disturbances. The specified IP66 enclosure rating helps protect the optical and driver compartments from dust ingress and high-pressure water exposure, improving reliability in security-critical locations where dark zones can create operational and liability risks.

AI Security Camera and Face Recognition Capability

At community gates, surveillance quality is often limited less by camera resolution and more by mounting stability, backlight handling, and nighttime scene illumination. By combining a 10m mounting height with a high-output 120W LED, this product supports clearer image acquisition than low-mounted wall cameras in many gate geometries. The AI camera platform supports facial analysis, event tagging, and local edge-assisted processing, enabling use cases such as resident whitelist matching, visitor timestamp logging, and suspicious loitering review. Depending on local legal requirements, the face recognition function can be configured for 1:1 verification, 1:N matching, or disabled while retaining standard video analytics.

For B2B buyers, it is important to note that facial recognition deployment must follow local privacy, consent, and retention rules. Typical implementation parameters include image retention windows of 7-90 days, access-control integration with 1-3 third-party platforms, and role-based permissions for security staff. The smart pole architecture supports 4G/5G + LoRaWAN communications, and WiFi 6 can support up to 500+ concurrent users at the platform level, although practical entrance deployments usually reserve bandwidth for 5-20 security and operations devices rather than public hotspot usage. Integrators needing broader architecture guidance can Learn about topic before finalizing the software stack.

Emergency Call and Incident Response

The integrated emergency call module adds a direct human-assistance layer that pure camera systems cannot provide. In a typical gated site with 1,000-5,000 residents, emergency communication points are often required at entrances, parking ramps, or pedestrian choke points to support medical events, harassment reports, access disputes, and after-hours visitor screening. This module provides 1-button initiation for guard station or control-room response, reducing dependence on mobile signal availability or visitor app literacy.

Compared with installing a separate SOS pedestal at each gate, integration on the smart pole can reduce equipment count by 1 unit per entrance, preserve sidewalk clearance, and simplify cable management. Reference market pricing for a non-visual SOS device is approximately USD 101 FOB, while a visual unit is approximately USD 134 FOB, indicating that integrated deployment can be cost-effective when combined with shared steelwork, shared power distribution, and shared surge protection. In many projects, response time improvements of even 30-60 seconds can materially improve incident handling at the first point of contact.

Connectivity and Digital Operations

The WiFi module supports digital services for guards, maintenance staff, and visitor-processing workflows. At a community gate, reliable connectivity is often needed for 3-6 digital tasks: QR code scanning, cloud-based visitor approval, access-control synchronization, live camera viewing, incident ticketing, and firmware updates. Integrating WiFi on the same pole reduces the need for a separate communications mast and can improve line-of-sight placement over gate booths, barriers, and perimeter walls.

The broader communications layer supports 4G/5G + LoRaWAN, enabling the pole to function as part of a larger smart-community network. This is useful in developments with 10-200 poles, where centralized alarm handling, device health monitoring, and remote dimming can cut manual inspection frequency by 30%-50%. Property operators can Configure your system online to align communications options with the site’s NVR, VMS, access-control, and property-management software requirements.

System Architecture

From an engineering perspective, the system combines 1 structural pole, 1 lighting circuit, 1 camera/data subsystem, 1 emergency communications path, and 1 network module behind coordinated power and signal routing. This architecture reduces enclosure count, external conduit exposure, and pole-climb service time. The integrated approach also supports cleaner grounding and surge-protection design, which is critical in outdoor electronics exposed to lightning transients and switching events. For many EPC projects, a single smart pole can replace 2-4 conventional devices, reducing installation interfaces by approximately 35%.

The square-tube tapered body is particularly suitable for community entrances because it offers flat mounting planes for brackets, cable passages, and service access panels. Compared with a basic round pole, a rectangular profile can improve module alignment and simplify the mechanical positioning of cameras and call devices by 1-2 installation steps per accessory. The result is a neater visual profile at gated communities where aesthetics, signage sightlines, and surveillance coverage all matter within a relatively small frontage area of 20-60m.

Technical Specifications

The standard configuration uses a 10m steel pole, 120W LED luminaire, 4 integrated modules, and IP66 weather protection. The design operating temperature is -40°C to +55°C, suitable for cold continental sites, tropical rain zones, and high-solar-gain entrances. The nominal communication stack is 4G/5G + LoRaWAN, while the WiFi subsystem provides local wireless coverage for operations. Structural design life is 25 years, while electronics service intervals typically fall in the 1-5 year range depending on duty cycle, firmware policy, and environmental severity.

For electrical design, the unit is generally specified on grid AC input with internal protection components such as breakers, surge devices, and low-voltage distribution accessories. Reference accessory pricing for cables, breakers, and surge protection is approximately USD 50 per set FOB, and this category should never be omitted in EPC budgeting because smart poles combine lighting and low-voltage electronics in the same asset. Buyers seeking tailored dimensions, arm geometry, or camera orientation can Request a custom quotation with gate width, lane count, and local code requirements.

Cloud Monitoring and Operations Management

Cloud monitoring is increasingly important when a developer operates 5, 20, or 100+ entrances across multiple communities. With centralized software, operators can track online/offline status, alarm events, camera health, emergency call logs, and lighting schedules from 1 dashboard instead of relying on manual guard reports. In many deployments, fault detection time can drop from 24-72 hours to less than 15 minutes, reducing downtime and improving SLA compliance for outsourced facility managers.

The platform approach also supports data-driven maintenance. For example, if a site has 12 entrance poles and each historically required 2 manual inspections per month, remote diagnostics can potentially reduce field visits by 30%-50%, depending on maintenance policy. This aligns with broader smart-city asset management practices referenced by BloombergNEF, Wood Mackenzie, and the IEA, all of which emphasize digitalization as a major lever for lowering lifecycle infrastructure cost.

Application Scenario

A residential developer in Southeast Asia deployed 8 units of this 10m community entrance model across 4 gated clusters, replacing separate 150W floodlights, wall-mounted cameras, and standalone intercom posts. After 12 months, the operator reported approximately 28% lower lighting energy use, 40% fewer nighttime visibility complaints, and a measurable reduction in guard response time because emergency calls and video events were centralized on 1 management platform. The project also reduced civil clutter at each entrance by consolidating 3 device foundations into 1 pole foundation, which improved both vehicle turning space and pedestrian clearance.

Comparison with Conventional Entrance Infrastructure

A conventional entrance setup often consists of 1 lighting pole, 1 camera mast or wall bracket, 1 intercom pedestal, and 1 separate WiFi or networking device. That means 4 visible assets, 3-4 procurement lines, and often 2-3 subcontractors. By contrast, this integrated model centralizes those functions into 1 coordinated EPC scope, which can reduce installation labor by approximately 15%-30% and simplify long-term maintenance. Compared with a conventional sodium-light-plus-CCTV arrangement, the smart pole can also deliver better night imaging and lower energy use, while reducing visual clutter at premium residential developments.

EPC Investment Analysis and Pricing Structure

For project owners, the EPC scope includes 5 major elements: engineering, procurement, construction, commissioning, and warranty support. Engineering covers pole layout, load checks, wiring diagrams, and interface review. Procurement covers the steel pole, LED luminaire, AI camera, emergency call unit, WiFi module, and electrical accessories. Construction includes foundation interface, erection, wiring, and testing. Commissioning includes network setup, lighting checks, and device validation. Standard turnkey scope includes a 1-year warranty for commissioning-backed projects.

Three-tier pricing table

Volume discount table

A practical ROI model can be built against a conventional entrance package costing roughly USD 1,900-2,400 installed when separate lighting, CCTV support steelwork, intercom pedestal, and WiFi equipment are procured independently. If this integrated pole reduces annual electricity and maintenance cost by USD 180-260 per entrance, simple payback versus a fragmented alternative can fall in the 2.5-4.5 year range. For portfolios of 20 poles, annual operating savings can reach USD 3,600-5,200, excluding the value of improved incident response and reduced visual clutter. Payment terms are typically 30% T/T + 70% against B/L, or 100% L/C at sight; financing can be discussed for projects above USD 1,000K. Commercial inquiries: [email protected].

Procurement Guidance for B2B Buyers

Procurement managers should validate 6 inputs before RFQ release: pole height, gate width, required camera angle, face-recognition policy, emergency call routing, and communication method. Engineers should also confirm local grounding practice, foundation design assumptions, and whether the camera must integrate with an existing ONVIF/NVR/VMS environment. For projects with 10-100 units, standardization of brackets, access doors, and internal wiring can reduce spare-part complexity and shorten mean time to repair by 10%-20%.

SOLARTODO supports specification review for developers, EPCs, distributors, and system integrators requiring a security-focused smart pole rather than a full 10-in-1 boulevard platform. Additional background on smart infrastructure planning, communications, and integrated pole systems is available in the knowledge center: Learn about topic.
