What installation and operating cost items should a PV bid…

Key Takeaways

• SAM explicitly requires accounting for the control mechanism's installation and/or operating costs. SAM Grid Limits
• Define the modeled interconnection ceiling and curtailment schedule before requesting control-system prices. SAM Grid Limits
• Recommend separate installation items for engineering, proposed equipment, integration, commissioning, and handover; the sources provide no universal hardware list.
• Recommend disclosing applicable support, software, connectivity, configuration-change, and replacement charges instead of inventing annual allowances.
• SAM's export-limit settings do not restrict grid imports, and its simulation time step is not a documented controller response specification. SAM Grid Limits
• Recommend evaluating control expenses separately from modeled energy losses and any assumed curtailment compensation. SAM Grid Limits

Summary

A PV bid should explicitly address the cost of the mechanism that will enforce the export limits used in its energy model. SAM assumes such a mechanism exists and instructs users to account for its costs under Installation Costs and/or Operating Costs. It gives PV power electronics adjusting DC operating voltages as one possible control approach; it does not prescribe a universal equipment package. SAM Grid Limits

The recommended bid structure below separates initial implementation, recurring support, and modeling assumptions. These are procurement recommendations, not a source-defined bill of materials. The supplied documents do not establish project-specific hardware, prices, control performance, or local approval requirements.

1. Define the control scope before requesting prices

SAM distinguishes an interconnection limit from curtailment. The interconnection limit is the maximum AC power the system may deliver to the grid. Curtailment is modeled through maximum system AC output values for individual simulation time steps. Neither setting limits electricity imported from the grid. SAM Grid Limits

Recommended bid requirement: attach the modeled export ceiling and any curtailment schedule, identify their units, and ask the bidder to explain how the proposed control mechanism will implement those assumptions. Request a clear description of where the limit is enforced and what equipment is included.

For scheduled curtailment, SAM requires the input table to match the weather file's time records. Recommend including responsibility for preparing, checking, and loading that schedule in the engineering scope. The simulation time step should not be presented as a proven controller response time: the supplied documentation provides no hardware response specification. SAM Grid Limits

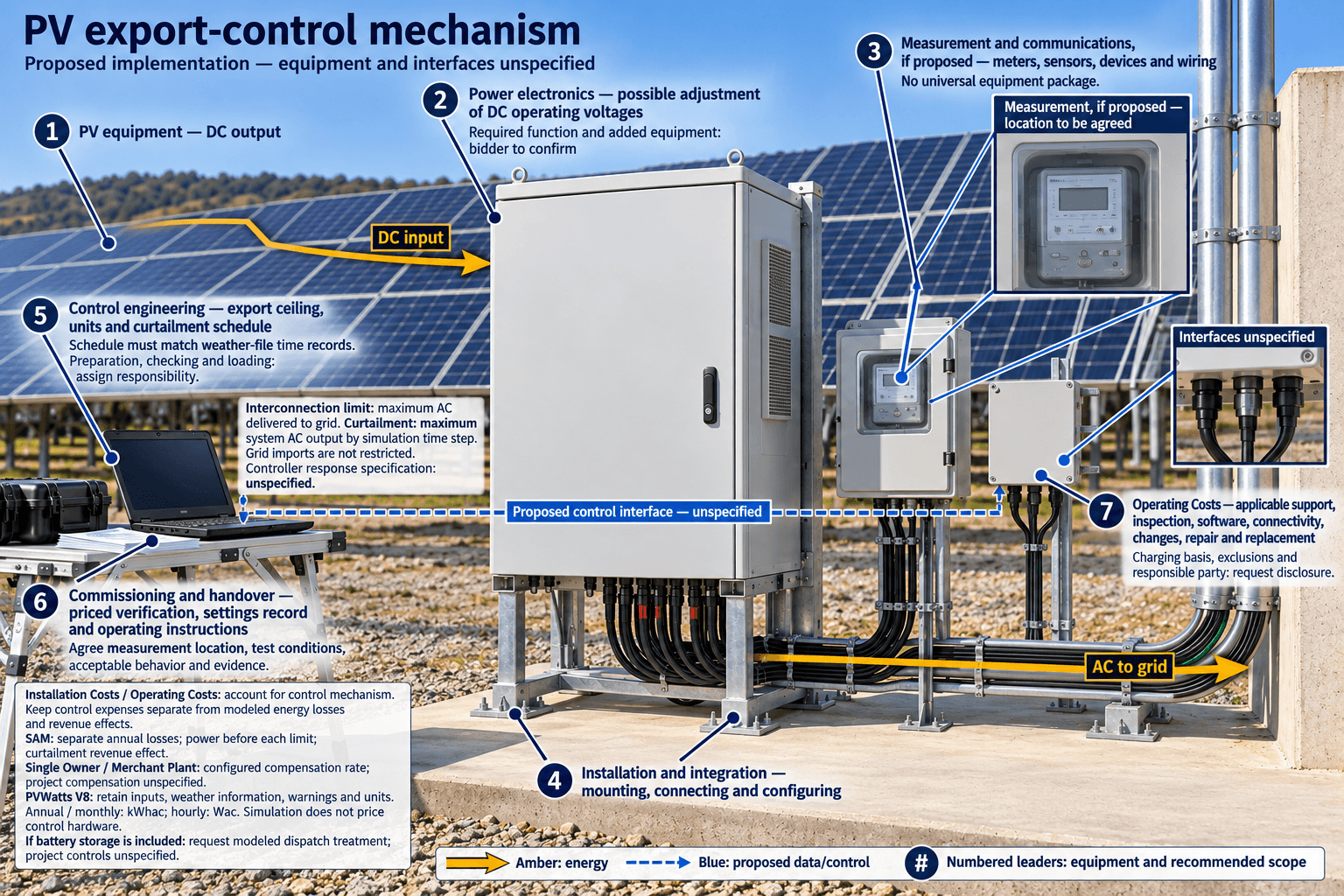

2. Recommended installation cost items

SAM explicitly calls for accounting for control-system costs, but it does not itemize them. Use the following as questions for bidders, with each item marked included, separately priced, unnecessary for the proposed design, or unresolved. SAM Grid Limits

• Control engineering and configuration: request pricing for translating the modeled limit into the proposed operating configuration, documenting settings, and identifying interfaces with the PV equipment.
• Power-control equipment: ask whether the proposed inverter or other power electronics already provide the required function. Request separate pricing for any additional equipment or enabled functionality the bidder proposes.
• Measurement and communications, if proposed: request an itemized scope for any meters, sensors, communications devices, wiring, and associated installation. These components are conditional recommendations; the sources do not establish that every project needs them.
• Installation and integration labor: request explicit coverage for mounting, connecting, configuring, and integrating the proposed control components, rather than assuming these tasks are covered by a general PV installation allowance.
• Commissioning and handover: recommend a priced verification procedure, settings record, operating instructions, and assignment of responsibility for demonstrating the agreed export-control behavior.

Ask bidders to identify which costs are already included elsewhere in the offer. Recommend agreeing the measurement location, test conditions, acceptable behavior, and evidence required before contract award. Those acceptance details remain unknown in the supplied sources and should not be invented from the simulation settings.

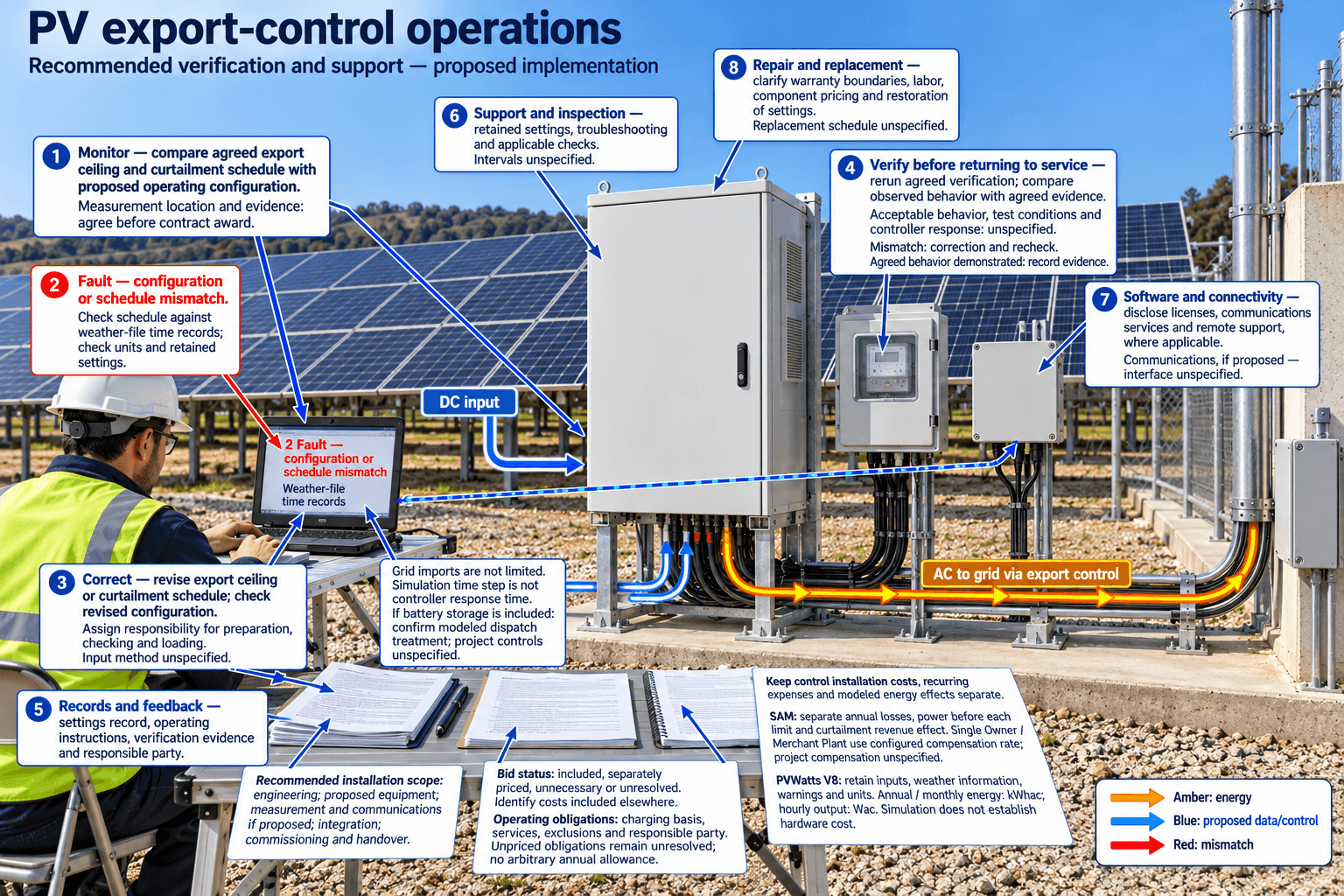

3. Recommended operating cost items

SAM allows control-related costs to be accounted for under Operating Costs as well as Installation Costs. It does not provide maintenance intervals, subscription charges, replacement schedules, or standard annual allowances. SAM Grid Limits

Recommend asking bidders to disclose recurring costs for the proposed architecture, including:

• Support and inspection: any planned checks, troubleshooting support, or verification of retained settings.
• Software and connectivity: any recurring licenses, communications services, or remote-support charges, where applicable.
• Configuration changes: the commercial terms for revising an export ceiling or curtailment schedule and checking the revised configuration.
• Repair and replacement: warranty boundaries, chargeable labor, replacement-component pricing arrangements, and responsibility for restoring settings.

Request the charging basis, included services, exclusions, and responsible party for each applicable item. Do not insert an arbitrary annual percentage to fill a missing quote. Recommend recording unpriced obligations as unresolved commercial items until the bidder provides evidence.

If battery storage is included, request an explicit statement of the modeled dispatch treatment. SAM allows users to choose whether interconnection limits and curtailment are considered for some battery dispatch options; the documentation does not establish how a particular project's battery controls operate. SAM Grid Limits

4. Separate control expenses from modeled energy effects

SAM reports annual energy losses from interconnection limits and curtailment separately and provides time-series outputs showing system power before each limit. Its project cash flow also shows curtailment's revenue effect. For the Single Owner and Merchant Plant financial models, curtailed power is compensated using the configured curtailment compensation rate. These are model features, not evidence that a project will receive compensation. SAM Grid Limits

Recommend showing control installation costs, recurring control expenses, and modeled energy effects separately in the bid evaluation. Ask for the assumptions behind any revenue calculation; applicable compensation terms remain unknown here.

Where PVWatts V8 supports the production estimate, recommend retaining the submitted inputs, weather-data information, warnings, and output units. Its documentation distinguishes annual and monthly AC energy in kWhac from hourly AC output in Wac. Those outputs describe a simulation; they do not establish the proposed control hardware or its installed cost. PVWatts V8 Documentation

For procurement, request a traceable connection between each modeled constraint, the bidder's proposed implementation, its initial price, its recurring obligations, and the agreed verification evidence.

FAQ

Why should the bid price an export-control mechanism?

SAM assumes the system can adjust output to meet the modeled limits and directs users to account for associated installation and/or operating costs. SAM Grid Limits

Does SAM specify a mandatory controller package?

No universal package is specified in the supplied text. It gives PV power electronics adjusting DC operating voltages as an example. SAM Grid Limits

What installation items should buyers request?

Recommend itemizing control engineering, proposed equipment, any required measurement and communications, integration labor, commissioning, and handover. Applicability should be confirmed by the bidder.

What recurring expenses should buyers ask about?

Recommend asking about applicable support, inspections, licenses, connectivity, setting changes, repairs, and replacements. The supplied sources provide no standard prices or maintenance intervals.

Do these modeled limits restrict electricity imports?

No. SAM states that its grid interconnection limit and curtailment settings do not limit electricity imported from the grid. SAM Grid Limits

Does the simulation time step specify controller response time?

No hardware response specification is provided. SAM describes hourly or subhourly modeling adjustments; recommend obtaining a separate response specification and verification procedure from the bidder. SAM Grid Limits

Should curtailed energy be listed as a control maintenance fee?

Recommend keeping them separate. SAM reports energy losses from the limits and models curtailment's revenue effect, while control expenses belong in installation and/or operating costs. SAM Grid Limits

Can PVWatts establish export-control equipment costs?

The supplied PVWatts documentation describes simulation inputs and production outputs; it provides no export-control equipment quotation or installation-cost schedule. PVWatts V8 Documentation
