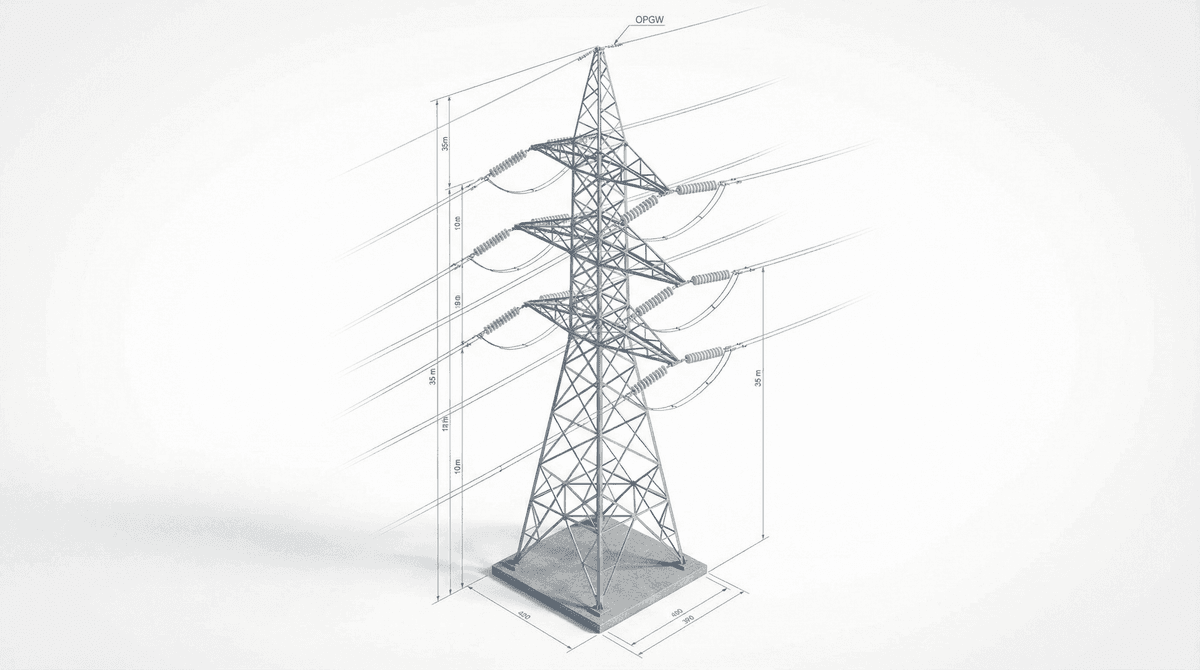

Transmission Tower Foundation Cost Report 2026

Summary

Transmission tower foundation costs in 2026 typically range from $8,000-$18,000 for 35kV towers, $25,000-$60,000 for 220kV structures, and $60,000-$140,000 for 330kV-class heavy foundations, with soil conditions shifting total civil cost by 18%-65%.

Key Takeaways

• Prioritize geotechnical surveys early because borehole, SPT, and groundwater data can reduce foundation overdesign by 8%-15% and cut change-order risk by more than 20%.
• Select pad-and-chimney or spread foundations for dense sand and stiff clay where allowable bearing capacity often reaches 180-300 kPa, lowering concrete volume by 12%-25%.
• Use pile or micropile solutions in soft clay and peat because settlement can exceed 50-100 mm with shallow foundations, pushing lifecycle risk above acceptable utility limits.
• Budget foundation works at 18%-35% of total tower installed cost for 35kV-330kV lines, with rock excavation or dewatering adding another 10%-30%.
• Compare tower type carefully because portal frame substation entries and double-circuit lattice towers can require 20%-45% more reinforced concrete than lighter tangent structures.
• Standardize foundation families across 50+ tower lots to achieve about 5% supply savings, 100+ lots for 10%, and 250+ lots for 15% under volume-based procurement.
• Target 50-year design life using IEC 60826, ASCE 10-15, and geotechnical verification because corrosion protection, drainage, and grounding quality can reduce major remedial work by 15%-25%.
• Model EPC payback against outage avoidance because one prevented structural failure on a 220kV line can protect hundreds of thousands of dollars in repair and energy-not-served costs.

2026 Transmission Tower Foundation Cost Overview

Transmission tower foundation costs in 2026 are driven mainly by voltage class, soil bearing capacity, and excavation complexity, with shallow foundations from $8,000-$35,000 and deep foundations from $30,000-$140,000 per structure.

For utilities, EPC contractors, and industrial power users, the key cost question is not only tower steel price but how soil type changes concrete, reinforcement, excavation depth, and construction method. According to IEA (2024), grids must expand by more than 80 million kilometers by 2040 to meet national energy and climate targets, making foundation cost control a strategic procurement issue rather than a narrow civil engineering detail. According to IRENA (2024), global renewable power capacity reached 3,870 GW in 2023, increasing pressure on transmission and substation infrastructure in Asia-Pacific, Europe, North America, Latin America, and Middle East/Africa.

Foundation cost usually accounts for 18%-35% of installed transmission tower civil-and-structural cost, but that share rises in weak soil, floodplain, or mountain conditions. A 22m 35kV double-circuit distribution tower may use relatively compact pad foundations, while a 40m 220kV portal frame substation entry or a 50m 330kV double-circuit lattice tower often requires larger footing blocks, deeper embedment, and heavier anchor systems. For B2B buyers, this means the same tower family can show a 1.4x-2.2x foundation cost swing between dense granular soil and saturated soft clay.

The International Energy Agency states, "Grid expansion and modernization are critical to energy security and clean energy transitions." That statement matters directly to tower foundations because civil bottlenecks now delay many line projects more than steel fabrication does. BloombergNEF (2024) also notes that transmission investment remains below what is needed for electrification growth, so reducing avoidable foundation overspend is now a bankability issue.

Voltage / Structure Type	Typical Foundation Type	2026 Cost Range per Tower	Foundation Share of Installed Tower Cost	Typical Risk Driver
35kV 22m double-circuit tangent	Pad-and-chimney / spread footing	$8,000-$18,000	18%-25%	Variable bearing capacity
220kV 40m portal frame substation entry	Isolated footings / combined footing / piles	$25,000-$60,000	22%-32%	High uplift and approach geometry
330kV 50m double-circuit tangent	Spread footing / pile cap + piles	$60,000-$140,000	25%-35%	Large overturning and settlement

Soil Type Cost Comparison Data

Soil type can change transmission tower foundation cost by 18%-65%, with dense sand and weathered rock usually the lowest-risk options and soft clay, peat, or high-water-table silt the most expensive.

The strongest cost lever in foundation design is geotechnical condition. In dense sand or stiff clay, allowable bearing capacity often falls in the 180-300 kPa range, enabling shallower footings and lower reinforcement ratios. In soft clay or peat, allowable bearing may drop below 75-100 kPa, and differential settlement risk can force pile-supported or raft-like solutions. According to FHWA geotechnical guidance and common utility practice, groundwater and seasonal saturation can increase excavation support and dewatering cost by 10%-25% even when bearing capacity appears acceptable.

For procurement teams, soil class should be translated into a cost matrix before tower spotting is finalized. A route with 30% weak-soil towers can materially alter the project CAPEX profile, crane schedule, and concrete logistics plan. This is especially relevant for SOLAR TODO projects in Southeast Asia, Latin America, and parts of Africa where mixed terrain and rainy-season access constraints often affect both unit cost and schedule reliability.

Soil Type	Typical Allowable Bearing Capacity	Preferred Foundation Options	Relative Cost Index	Typical 2026 Cost Impact vs Dense Sand
Dense sand / gravel	200-300 kPa	Spread footing, pad-and-chimney	1.00	Baseline
Stiff clay	150-250 kPa	Spread footing, undercut replacement	1.10	+8%-15%
Weathered rock	300-800 kPa	Rock anchor, shallow footing	1.05	+5%-12%
Silt with high groundwater	100-180 kPa	Enlarged footing, drainage, dewatering	1.25	+18%-30%
Soft clay	50-100 kPa	Pile foundation, soil improvement	1.45	+30%-50%
Peat / marsh	25-60 kPa	Deep piles, geogrid platform	1.65	+45%-65%

According to ASCE 10-15, transmission structure foundations must resist compression, uplift, overturning, and lateral loads under governing load cases including broken-wire conditions. That means poor soil does not only increase footing size; it can also change the entire structural behavior of the tower-foundation system. According to IEC 60826, environmental loading such as wind and ice must be integrated with reliability-based design methodology, which often pushes weak-soil designs into more conservative and more expensive categories.

Regional soil-driven cost patterns

Regional foundation costs in 2026 vary by 20%-40% because labor, concrete pricing, groundwater conditions, and logistics differ significantly across Asia-Pacific, Europe, North America, Latin America, and Middle East/Africa.

Asia-Pacific often shows the widest spread because projects may cross dense urban edges, floodplains, and mountainous terrain within one line segment. Europe generally has higher labor cost but stronger geotechnical documentation and more standardized civil execution. North America frequently sees higher unit rates for labor and compliance, while Middle East/Africa can benefit from lower labor cost but face remote-site logistics and imported material premiums. Latin America often combines favorable labor economics with challenging access, seismic detailing, and rainy-season construction constraints.

Region	Typical 220kV Foundation Cost per Tower	Typical 330kV Foundation Cost per Tower	Main Cost Driver	2026-2030 Outlook
Asia-Pacific	$22,000-$55,000	$55,000-$130,000	Mixed soils, monsoon access	High volume, moderate inflation
Europe	$30,000-$65,000	$70,000-$145,000	Labor, compliance, concrete	Stable growth, high quality control
North America	$32,000-$68,000	$75,000-$150,000	Labor, environmental permits	Grid hardening demand rising
Latin America	$20,000-$50,000	$50,000-$120,000	Access roads, rainfall, terrain	Strong interconnection demand
Middle East/Africa	$24,000-$58,000	$58,000-$135,000	Remote logistics, rock or sand extremes	Utility expansion accelerating

Design Comparison: Spread, Pile, Rock Anchor, and Hybrid Foundations

Foundation design selection can change total installed cost by more than 40%, with spread footings best for competent soils and pile or hybrid systems justified where settlement, uplift, or groundwater risk is high.

The most common transmission tower foundation types are spread footing, pad-and-chimney, pile foundation, rock anchor, and hybrid systems. Spread footings remain the most economical option where bearing capacity and groundwater conditions are favorable. Pile systems become necessary when shallow foundations would exceed settlement tolerance or require impractically large excavation. Rock anchors are highly effective in sloped or rocky areas but can become expensive if drilling productivity is low or rock quality is inconsistent.

For a 50m 330kV double-circuit tangent tower, overturning and uplift loads can make one-size-fits-all civil design uneconomic. A standardized shallow footing may appear cheaper at tender stage but create rework if geotechnical variance is underestimated. SOLAR TODO typically advises buyers to align tower spotting, geotechnical campaign density, and foundation family selection before final steel detailing, because leg loads and footing geometry should be optimized together.

Foundation Design	Best Soil Condition	Typical 2026 Cost Range	Construction Speed	Main Limitation
Spread footing	Dense sand, stiff clay	$8,000-$35,000	Fast	Large footprint in weak soil
Pad-and-chimney	Medium to good soils	$10,000-$40,000	Fast	Limited in very high uplift cases
Bored pile + cap	Soft clay, high groundwater	$30,000-$90,000	Medium	Higher equipment cost
Micropile + cap	Restricted access, retrofit	$40,000-$110,000	Medium-slow	High steel and drilling cost
Rock anchor foundation	Weathered to hard rock	$18,000-$55,000	Medium	Drilling uncertainty
Hybrid footing + soil improvement	Variable soils	$20,000-$70,000	Medium	Design coordination complexity

According to NREL (2024), infrastructure cost optimization increasingly depends on site-specific engineering rather than broad average assumptions, especially where resilience and lifecycle performance are valued. Fraunhofer ISE (2024) similarly emphasizes that system economics improve when design margins are evidence-based rather than generic. In transmission civil works, that principle translates into fewer conservative overruns and better CAPEX allocation.

Year-over-year trend analysis, 2021-2040

Transmission tower foundation costs rose approximately 18%-28% between 2021 and 2025, are stabilizing in 2026, and are likely to shift toward digital geotechnical modeling and lower-carbon concrete mixes by 2030.

From 2021 to 2023, steel, cement, freight, and fuel inflation pushed civil packages upward across most markets. In 2024-2025, labor shortages and grid acceleration programs in North America and Europe kept pricing elevated. In 2026, many markets show slower inflation but still higher baseline unit costs than pre-2021 levels. According to S&P Global Commodity Insights (2025), transmission project developers continue to face cost pressure from permitting delays and contractor availability more than from raw material spikes alone.

Historical and forward-looking benchmarks are useful for framework agreements and EPC budgeting:

Period	Typical Global Foundation Cost Trend	Main Driver	Procurement Implication
2021-2022	+10%-14%	Cement, freight, fuel inflation	Reprice contracts frequently
2023-2024	+6%-9%	Labor and contractor scarcity	Lock regional subcontractors early
2025-2026	+3%-5%	Stabilization with high baseline	Focus on design optimization
2027-2030	+2%-4% annually	Grid expansion, resilience upgrades	Standardize foundation families
2030-2040	Scenario-based	Low-carbon materials, digital twins	Value lifecycle over lowest bid

Long-term, utilities are likely to adopt more digital soil mapping, parametric foundation libraries, and condition-based inspection. By 2030, low-carbon concrete and recycled steel reinforcement may become common in regulated markets. By 2040, climate resilience criteria such as flood elevation, erosion control, and extreme wind return periods will likely move from optional enhancements to baseline requirements.

EPC Investment Analysis and Pricing Structure

EPC turnkey delivery for transmission tower foundations typically includes geotechnical investigation, structural design, excavation, reinforcement, concrete works, grounding, testing, and erection interface, with turnkey premiums of roughly 12%-25% over FOB supply-only packages.

For B2B buyers, the most practical pricing framework is to compare three commercial layers: FOB Supply, CIF Delivered, and EPC Turnkey. FOB Supply generally covers tower steel and standard drawings only. CIF Delivered adds freight, insurance, and import logistics. EPC Turnkey includes engineering, procurement, civil works, erection coordination, grounding, quality control, and commissioning support. This structure helps procurement teams compare bids on a like-for-like basis.

SOLAR TODO supports inquiry-based project development rather than online checkout, which is important for foundation-heavy projects where tower spotting, soil data, and local codes materially affect price. For large utility or industrial packages above $1,000K, financing may be available subject to project review. Standard payment terms are 30% T/T and 70% against B/L, or 100% L/C at sight. Commercial inquiries can be directed to cinn@solartodo.com.

Commercial Scope	What It Includes	Typical Price Effect vs FOB	Best For
FOB Supply	Tower steel, base drawings, factory QA	Baseline	Buyers with local EPC capability
CIF Delivered	FOB + sea freight + insurance	+8%-15%	Importing utilities and distributors
EPC Turnkey	CIF + design + civil + erection interface + testing	+12%-25% over FOB	Utilities, EPCs, industrial owners

Volume pricing matters in line projects because repeated footing families improve fabrication, rebar planning, and site productivity. Indicative guidance is 5% discount for 50+ units, 10% for 100+ units, and 15% for 250+ units, subject to voltage class, galvanizing scope, and civil complexity. For a 100-tower package, foundation standardization alone can reduce engineering and site inefficiency costs by 6%-12%.

ROI and payback logic for utilities and EPC buyers

Foundation optimization usually delivers payback in 1-3 years through reduced rework, lower outage risk, and faster energization rather than through direct energy generation economics.

Transmission foundations do not generate revenue directly, so ROI should be measured against avoided delay, avoided remedial works, and network availability. If optimized geotechnical design reduces average foundation cost by 8% on a 100-tower 220kV project with a $4.0 million civil package, direct CAPEX savings can reach about $320,000. If schedule compression energizes the line even one month earlier, the economic benefit may be materially higher depending on wheeling revenue or avoided diesel generation.

Scenario	Project Scale	Optimization Effect	Estimated Financial Benefit	Indicative Payback
Better geotechnical survey density	50 towers, 35kV-220kV	5%-8% less overdesign	$80,000-$220,000	<12 months
Foundation family standardization	100 towers, 220kV	6%-12% lower civil inefficiency	$240,000-$600,000	1-2 years
Weak-soil redesign before construction	30 towers, 330kV	Avoids rework and delay	$300,000-$900,000	Immediate to 1 year
EPC turnkey coordination	80 towers mixed voltage	10%-20% fewer interface claims	Project-specific	1-3 years

Applications and Procurement Guidance by Tower Category

Foundation strategy should match tower function, because a 35kV distribution tangent tower, a 220kV portal frame substation entry, and a 330kV double-circuit lattice tower impose very different compression and uplift demands.

The 22m 35kV Steel Lattice Distribution Tower — Double Circuit Tangent is typically used in suburban or peri-urban networks with 120 m design spans and moderate leg loads. In competent soils, pad-and-chimney foundations usually provide the best cost-performance balance. The 40m 220kV Portal Frame Substation Entry is a special case because conductor geometry, clearance control, and yard approach loads can require larger isolated footings or combined civil solutions. The 50m 330kV Double Circuit Lattice Tower generally demands the most rigorous foundation design due to higher overturning moments, heavier conductor systems, and longer span assumptions.

For procurement managers, the right buying sequence is geotechnical campaign first, preliminary tower spotting second, foundation family optimization third, and steel finalization fourth. This reduces variation orders and improves tender comparability. SOLAR TODO can support project discussions covering tower type, soil conditions, corrosion environment, and EPC scope across Asia-Pacific, Europe, Latin America, Middle East/Africa, and North America.

The International Energy Agency states, "Electricity networks are the backbone of secure and affordable power systems." For buyers, that means foundation reliability is not a low-visibility civil line item; it is core infrastructure risk management. A tower with a 50-year design life still depends on a foundation that controls settlement, drainage, grounding resistance, and corrosion from day one.

FAQ

A concise understanding of cost, soil, design, and EPC terms helps buyers avoid 10%-30% budgeting errors in transmission tower foundation procurement.

Q: What is the typical transmission tower foundation cost in 2026? A: Typical 2026 cost ranges from $8,000-$18,000 for 35kV towers, $25,000-$60,000 for 220kV structures, and $60,000-$140,000 for 330kV-class foundations. Final pricing depends mainly on soil bearing capacity, groundwater, excavation method, and tower load case.

Q: Why does soil type change foundation cost so much? A: Soil type changes bearing capacity, settlement behavior, and construction method, which directly affect concrete volume, reinforcement, and excavation depth. Dense sand may support shallow footings economically, while soft clay or peat often requires piles, dewatering, or soil improvement that can raise cost by 30%-65%.

Q: Which foundation type is usually cheapest for transmission towers? A: Spread footing or pad-and-chimney foundations are usually the lowest-cost options where allowable bearing capacity is about 180-300 kPa and groundwater is manageable. They are fast to build, use common materials, and generally minimize drilling and specialist equipment costs.

Q: When should pile foundations be used instead of shallow footings? A: Pile foundations are typically justified when shallow foundations would cause excessive settlement, require impractically large footing dimensions, or face high groundwater risk. They are common in soft clay, marsh, reclaimed land, and some river-crossing approaches where allowable bearing may fall below 75-100 kPa.

Q: How much can a geotechnical survey save on a tower line project? A: A well-planned geotechnical survey can often reduce overdesign by 8%-15% and lower change-order exposure by more than 20%. The savings come from matching each tower location to a realistic foundation family instead of applying one conservative design across the entire route.

Q: What does EPC turnkey delivery include for tower foundations? A: EPC turnkey delivery usually includes geotechnical investigation, detailed engineering, excavation, reinforcement, concrete works, grounding, quality control, and erection interface support. Compared with FOB supply-only purchasing, turnkey packages typically add about 12%-25% but reduce interface risk and schedule disputes.

Q: What are the standard payment terms for SOLAR TODO projects? A: Standard commercial terms are typically 30% T/T in advance and 70% against B/L, or 100% L/C at sight. For large projects above $1,000K, financing may be available subject to project evaluation, scope definition, and buyer credit review.

Q: How do regional markets affect foundation pricing? A: Regional pricing differs because labor, concrete, permitting, and logistics vary widely. Europe and North America generally have higher labor and compliance costs, while Latin America and parts of Asia-Pacific may offer lower labor rates but face greater access, rainfall, or terrain-related execution risk.

Q: How long should a transmission tower foundation last? A: Properly designed transmission tower foundations are commonly engineered for a 50-year design life, aligned with the tower structure itself. Achieving that life requires correct drainage, corrosion control, grounding, concrete quality, and inspection intervals based on site exposure and loading conditions.

Q: How can buyers reduce total foundation cost without increasing risk? A: Buyers can reduce cost by increasing geotechnical accuracy, standardizing foundation families, optimizing tower spotting, and bundling procurement volume. Typical savings are 5% for 50+ units, 10% for 100+ units, and up to 15% for 250+ units when specifications are harmonized.

References

Authoritative 2024-2025 sources show that grid expansion, geotechnical discipline, and standards-based loading are the main drivers of transmission tower foundation economics in 2026.

1. IEA (2024): World Energy Outlook 2024 and grid investment analysis highlighting the need for major transmission expansion to 2040.
2. IRENA (2024): Renewable Capacity Statistics 2024 documenting global renewable capacity growth and associated grid infrastructure demand.
3. IEC 60826 (2017): Design criteria of overhead transmission lines, including reliability-based loading methodology relevant to tower and foundation design.
4. ASCE 10-15 (2015): Design of Latticed Steel Transmission Structures, covering structural and foundation load considerations for overhead line towers.
5. BloombergNEF (2024): Global Energy Transition and power network investment analysis discussing transmission underinvestment and infrastructure bottlenecks.
6. S&P Global Commodity Insights (2025): Market analysis on power transmission project costs, contractor availability, and infrastructure execution trends.
7. NREL (2024): Infrastructure and techno-economic analysis methodologies supporting evidence-based design optimization and lifecycle cost assessment.
8. Fraunhofer ISE (2024): Energy system cost and engineering optimization research relevant to lifecycle-based infrastructure decision-making.

Conclusion

Transmission tower foundation cost in 2026 is primarily a soil-and-design problem, with shallow systems at $8,000-$35,000 and deep or weak-soil solutions reaching $140,000 per tower.

The bottom line is that buyers who pair early geotechnical investigation with tower-specific foundation design can typically save 8%-15%, reduce schedule risk, and improve 50-year asset reliability. For utility and EPC procurement, SOLAR TODO recommends evaluating soil class, tower load case, and commercial scope together before finalizing any transmission line budget.

---
