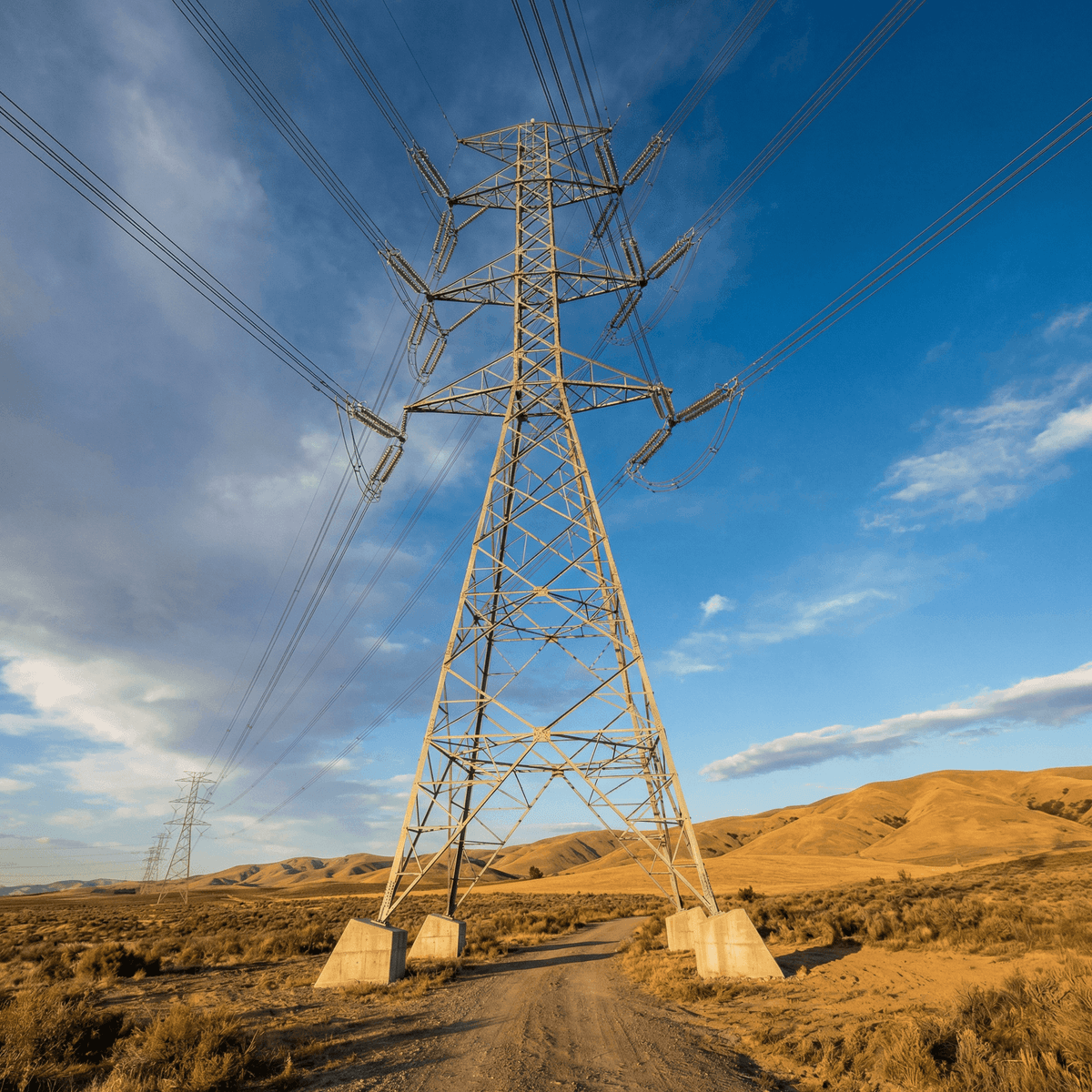

Transmission Lines: Corrosion Control & Faster Builds

Summary

Power transmission towers in corrosive corridors can reach 50-year design life when zinc systems, coating control, and connection design are matched to C3-C5 exposure; modular monopoles also cut site work by 20-40% and reduce footprint by 50-85% versus lattice alternatives.

Key Takeaways

• Specify hot-dip galvanizing to ISO 1461 or equivalent utility practice with coating checks because 50-year service targets in C3-C4 environments depend on measured zinc thickness, not only steel grade.
• Select monopoles for constrained corridors when a 50-85% smaller footprint and 20-40% faster site erection can reduce civil work, traffic disruption, and permit complexity.
• Match structure type to voltage and span: 18m 10kV poles suit about 100m spans, 25m 66kV poles suit about 150m spans, and 40m 220kV poles suit about 300m spans.
• Review corrosion by zone before procurement because coastal salt, industrial SO2, and high-humidity sites can shift a project from C3 to C4-C5 exposure and change coating, bolt, and inspection requirements.
• Use slip-joint or flanged segmented shafts to shorten transport lengths to 2-3 sections, reduce crane time, and simplify staged erection on urban or mountain access roads.
• Check design loads to IEC 60826 and ASCE 10-15, including broken-wire cases, 15mm radial ice, and local wind class, before freezing tower quantities and foundation drawings.
• Compare total installed cost, not only steel tonnage, because fewer foundations, shorter outage windows, and lower maintenance visits can improve payback within 3-7 years versus conventional corridor rebuild methods.
• Lock in EPC terms early: 30% T/T plus 70% against B/L or 100% L/C at sight, with volume discounts of 5% at 50+, 10% at 100+, and 15% at 250+ structures.

Why corrosion control and faster construction matter for transmission lines

Power transmission towers in corrosive environments fail first at coatings, bolts, and water-trap details, while modular steel poles can reduce construction time by 20-40% and footprint by 50-85% compared with many lattice layouts.

Transmission line owners usually face two linked problems: atmospheric corrosion and schedule pressure. In coastal, industrial, and high-humidity corridors, zinc loss accelerates on edges, weld zones, and bolted interfaces. At the same time, utilities need faster line diversions, substation exits, and urban rebuilds where road closure windows may be measured in days rather than weeks. That is why structure selection is not only a mechanical decision; it is also a lifecycle and permitting decision.

For B2B buyers, the practical question is simple: which structure form keeps corrosion manageable over 30-50 years while limiting site labor and outage exposure? SOLAR TODO addresses this with galvanized steel monopoles and transmission poles using segmented shafts, controlled fabrication, and route-specific loading checks. The approach is useful where right-of-way is narrow, access is poor, or visual impact matters as much as structural capacity.

According to the International Energy Agency, “Electricity grids are the backbone of secure and reliable power systems,” and grid expansion must accelerate to support new generation. That statement matters here because tower procurement delays often come from civil complexity, not from steel supply alone. Shorter erection sequences and fewer foundations directly support grid schedule targets.

How power transmission towers address corrosive environments

Corrosion resistance in transmission structures depends on zinc system selection, drainage detailing, and inspection intervals, with 50-year design targets commonly achievable in C3-C4 exposure when fabrication and maintenance are controlled.

The first defense is material and coating selection. For steel monopoles and polygonal transmission poles, hot-dip galvanizing remains the standard baseline because it protects both external faces and many internal surfaces. In practice, buyers should ask for coating thickness records, vent and drain hole design, weld treatment procedures, and touch-up rules for field damage. A specification that only says “galvanized” is not enough for a 66kV or 220kV project expected to operate for 50 years.

Corrosion mechanisms buyers should assess

Atmospheric corrosion rates vary sharply by environment, and the difference between inland C3 and coastal C5 conditions can change maintenance cost over 25-50 years.

Corrosion risk is highest where chlorides, sulfur compounds, and persistent moisture combine. Coastal corridors face salt deposition; industrial zones face acidic pollutants; tropical routes face long wet seasons and condensation cycles. These conditions attack cut edges, flange faces, bolt threads, and crevices first. Buyers should therefore request site classification by corrosivity category, not just annual rainfall figures.

According to ISO 9223 methodology used across many industrial sectors, corrosivity categories are based on time of wetness and pollutant exposure rather than simple distance from the sea. That matters because a site 20 km inland can still behave like a severe corrosion zone if humidity and airborne salts remain high. For transmission procurement, this changes coating strategy, bolt material choices, and inspection frequency.

Design details that reduce corrosion hotspots

Drainage holes, sealed overlaps, and accessible inspection points can materially reduce corrosion at joints, and these details often cost far less than one unplanned maintenance campaign after 5-10 years.

Good corrosion design avoids water traps at slip-joints, base plates, handholes, and cross-arm interfaces. It also limits dissimilar-metal contact and ensures that internal cavities can drain and vent during galvanizing. For flanged poles, gasket and face-flatness control matter because trapped moisture at the flange can accelerate local attack. For slip-joints, overlap length and fit tolerance must be controlled so that assembly remains secure without creating persistent crevice moisture.

The U.S. Federal Highway Administration has long noted that details controlling water ingress and trapped moisture are central to steel durability. The same logic applies to transmission poles. A well-detailed 25m 66kV octagonal pole or 40m 220kV dodecagonal pole will usually outperform a poorly detailed heavier structure in the same corrosive corridor.

SOLAR TODO structure options for corrosive corridors

Segmented galvanized monopoles from 18m to 40m cover urban distribution and suburban transmission use cases while reducing exposed connection complexity compared with many conventional tower layouts.

SOLAR TODO commonly positions three relevant product types for this discussion. The 18m 10kV tapered monopole uses a slip-joint shaft and supports a typical 100m design span in compact urban feeders. The 25m 66kV octagonal double-circuit pole uses an 8-sided galvanized profile, a 150m design span, and a 50-year design life target under proper inspection. The 40m 220kV dodecagonal double-circuit pole uses a flanged segmented shaft, supports about 300m design span, and is suited to suburban transmission corridors and substation exits.

According to IEC 60826 loading practice and ASCE 10-15 structural design guidance, corrosion control does not replace load checks. Buyers still need verified combinations of wind, 15mm radial ice where applicable, conductor tension, and broken-wire cases. SOLAR TODO can support route-specific checks during inquiry and offline quotation so coating and structural choices stay aligned.

How tower design improves construction timeline

Modular monopoles and segmented transmission poles shorten field schedules by reducing parts count, foundation spread, and assembly steps, often cutting erection time by 20-40% compared with corridor rebuilds using larger lattice footprints.

Construction time is affected by more than crane capacity. It is driven by the number of truckloads, the amount of foundation excavation, the length of traffic control windows, and the time needed for bolt-up at height. Polygonal steel poles reduce many of these variables because they arrive in fewer larger sections and require fewer loose members than lattice towers.

For urban and suburban projects, footprint is often the hidden schedule driver. A compact base can reduce utility conflicts with drainage, telecom ducts, and road shoulders. On a line diversion, that may remove one or two permit interfaces per structure. On a substation exit, it can reduce outage coordination because the work zone is smaller and easier to isolate.

The International Renewable Energy Agency states, “Permitting, grid build-out and supply chains are now central bottlenecks to deployment.” For transmission buyers, that means structure forms that reduce site complexity have direct schedule value. Faster erection is not only a contractor preference; it is a grid delivery requirement.

Typical schedule advantages by structure form

Slip-joint and flanged pole systems usually move faster in constrained sites because 2-3 shaft sections replace many small members, shortening laydown, sorting, and elevated assembly time.

A slip-joint 18m or 25m pole can often be installed with simpler field sequencing than a comparable multi-member structure. A flanged 40m pole adds more bolt work at the segment interface but still benefits from modular transport and predictable assembly. In both cases, fewer foundations may be needed when double-circuit arrangements are used, which can reduce corridor occupation per kilometer.

Sample deployment scenario (illustrative): replacing single-circuit structures with double-circuit 66kV monopoles across a constrained corridor may reduce the number of structures by about 35-50%, depending on route geometry and clearance rules. That can shorten surveying, excavation, and conductor transfer planning even when each individual foundation is heavier.

Comparison of tower options for corrosive and schedule-sensitive projects

For 10kV to 220kV projects, the best structure choice depends on span, corridor width, and corrosion class, with monopoles usually favored where land use and erection speed are more critical than lowest steel cost.

The table below summarizes the practical differences relevant to procurement managers, EPC teams, and utility engineers.

Model	Voltage	Height	Circuits	Typical span	Connection	Corrosion advantage	Timeline advantage	Best-fit use case
18m Tapered Monopole Urban Aesthetic Slip-Joint	10kV	18m	2	100m	Slip-joint	Fewer exposed joints; galvanized tubular surface is easier to inspect	Fast transport in 2-3 sections; compact urban installation	Urban feeders, industrial parks, campuses
25m Octagonal Double Circuit Pole Slip-Joint	66kV	25m	2	150m	Slip-joint	Reduced crevice complexity versus many lattice nodes; 50-year target in C3-C4 with maintenance	70-85% smaller footprint than many lattice alternatives; fewer corridor conflicts	Suburban distribution, road reserves, line diversions
40m Dodecagonal Transmission Pole Flanged	220kV	40m	2	300m	Flanged	Strong section efficiency with controlled flange detailing and galvanizing access	Segmented transport and staged erection help constrained HV projects	Substation exits, suburban transmission, corridor upgrades

Selection should also consider foundation strategy. A monopole may use a deeper or more concentrated foundation than a lattice tower, but total corridor disturbance can still be lower because the occupied area is smaller. In corrosive soils, buyers should separate atmospheric corrosion from buried steel or anchor corrosion and specify foundation protection accordingly.

SOLAR TODO typically supports this comparison during the inquiry stage, then moves to offline quotation with route data, conductor set, wind class, and soil assumptions. That process is more useful than selecting by height alone because a 25m 66kV pole in Class B wind with 15mm ice has different shaft and base demands than the same height in a mild inland corridor.

EPC Investment Analysis and Pricing Structure

For transmission tower procurement, EPC value comes from combining design checks, supply, logistics, and erection planning into one package that can shorten delivery risk by weeks and improve lifecycle cost over 30-50 years.

EPC in this context means Engineering, Procurement, and Construction support for the line structure package. Engineering usually includes loading verification to IEC 60826 or ASCE 10-15, shop drawings, bolt schedules, and foundation interface data. Procurement includes steel fabrication, galvanizing control, packing, and export documentation. Construction scope may include erection method statements, anchor setting templates, installation supervision, and commissioning support, depending on the contract boundary.

A practical three-tier pricing structure helps buyers compare offers correctly:

• FOB Supply: steel poles/towers, bolts, drawings, and factory QA only; buyer manages sea freight, customs, inland transport, and erection.
• CIF Delivered: supply plus ocean freight and insurance to named port; buyer still manages customs clearance, inland haulage, foundations, and erection.
• EPC Turnkey: supply, logistics coordination, erection support, and project interface management; this is usually the best option when outage windows are tight or access risk is high.

Volume pricing guidance for planning is straightforward:

• 50+ structures: about 5% discount
• 100+ structures: about 10% discount
• 250+ structures: about 15% discount

Payment terms commonly used by SOLAR TODO are:

• 30% T/T in advance and 70% against B/L
• 100% L/C at sight for qualified projects

Financing is available for larger projects above $1,000K, subject to project review, jurisdiction, and credit conditions. For pricing, EPC scope, and financing discussion, buyers can contact cinn@solartodo.com or call +6585559114.

ROI should be measured against the conventional alternative, not against steel price alone. Sample deployment scenario (illustrative): if a compact 66kV double-circuit pole reduces structure count by 35%, cuts site labor by 20%, and lowers maintenance visits across 10 years, the incremental pole price may be recovered in roughly 3-7 years depending on outage cost and land constraints. In dense corridors, avoided permit delays can be as valuable as direct labor savings.

Procurement, inspection, and maintenance checklist

A corrosion-resilient transmission project depends on pre-award site classification, factory coating records, and 12-24 month inspection cycles after energization in aggressive environments.

Procurement teams should ask for more than a datasheet. At minimum, the technical file should include steel grade, galvanizing standard or equivalent utility requirement, dimensional tolerances, bolt grade, loading assumptions, and connection details. For corrosive corridors, request corrosion category assumptions, expected maintenance interval, and repair coating procedures for transport or erection damage.

A practical inspection checklist includes:

• Verify coating thickness records and galvanizing certificates before shipment.
• Confirm vent and drain details on tubular or polygonal sections.
• Inspect flange faces, bolt threads, and handholes after transport.
• Check field damage and repair any exposed steel before energization.
• Reinspect at 12 months, then every 12-24 months in coastal or industrial zones.
• Review base area drainage because standing water near foundations can accelerate local deterioration.

For utilities standardizing assets across multiple voltage classes, a family approach often reduces spare parts and training burden. SOLAR TODO can align 10kV, 66kV, and 220kV pole families under similar fabrication and inspection logic, which helps EPC teams manage QA across mixed-corridor projects.

FAQ

What is the main advantage of power transmission towers in corrosive environments? Power transmission towers address corrosive environments mainly through hot-dip galvanizing, controlled joint detailing, and inspection access. In practical terms, a properly specified steel pole can target a 50-year design life in C3-C4 exposure, while poor drainage or unprotected field damage can shorten service life much earlier.

How do monopoles improve construction timeline compared with lattice towers? Monopoles usually improve schedule by reducing parts count, laydown area, and assembly time at height. In many constrained projects, segmented poles cut erection-related site activity by about 20-40% and reduce footprint by 50-85%, which can shorten permits, traffic control, and utility conflict resolution.

Which SOLAR TODO model fits a 66kV corridor with limited right-of-way? The 25m 66kV Octagonal Double Circuit Pole Slip-Joint is the closest standard fit for that use case. It supports a typical 150m design span, uses an 8-sided galvanized shaft, and is intended for suburban or urban-edge corridors where compact footprint and faster installation matter.

How does a 220kV flanged pole help on substation exits or line diversions? A 40m 220kV dodecagonal flanged pole helps by combining high-voltage capacity with segmented transport and staged erection. For projects with narrow access roads or short outage windows, the flanged sections are easier to ship and assemble than one-piece shafts or larger lattice assemblies.

What standards should buyers request for transmission tower design and corrosion control? Buyers should request structural design checks to IEC 60826 and ASCE 10-15, then align coating and fabrication requirements with recognized galvanizing and corrosion-control practice such as ISO 1461 and ISO 9223. The key point is to tie environmental classification to measurable coating and inspection requirements.

How often should transmission towers be inspected in coastal or industrial areas? In aggressive environments, a first inspection at about 12 months after energization is a practical baseline, followed by 12-24 month intervals depending on exposure severity. Inspectors should focus on base zones, flange faces, handholes, bolt threads, and any repaired coating areas where corrosion often starts first.

Are monopoles always cheaper than lattice towers? No, monopoles are not always cheaper on steel tonnage or foundation concentration. They often become more economical when total installed cost is considered, especially where land acquisition, traffic disruption, outage coordination, or permit delays have measurable cost over a 30-50 year asset life.

What does EPC turnkey delivery include for transmission poles? EPC turnkey delivery usually includes engineering checks, fabrication, logistics coordination, erection planning, and site support, with scope varying by contract. For schedule-sensitive projects, this reduces interface risk because one supplier manages drawings, packing logic, and installation sequencing instead of splitting responsibility across several parties.

What are typical payment terms and volume discounts from SOLAR TODO? Typical terms are 30% T/T in advance and 70% against B/L, or 100% L/C at sight for qualified transactions. Planning discounts are commonly about 5% for 50+ structures, 10% for 100+, and 15% for 250+, subject to specification and delivery scope.

Can financing be arranged for large transmission structure projects? Yes, financing may be available for projects above $1,000K after project and credit review. This is useful for utility upgrades or EPC packages where the structure supply, logistics, and erection support are bundled and cash-flow timing matters as much as unit price.

Why is corrosion detailing as important as coating thickness? Corrosion detailing is critical because many failures begin where water is trapped, not where coating averages look acceptable on paper. Drain holes, flange fit-up, handhole sealing, and repair of erection damage often determine whether a tower reaches 30-50 years with manageable maintenance.

How should buyers start a technical inquiry with SOLAR TODO? Start with route voltage, required height, conductor type, design span, wind and ice assumptions, soil data if available, and the site corrosion category. SOLAR TODO then moves from inquiry to offline quotation, with project financing available for suitable larger packages.

References

1. IEC (2019): IEC 60826, Design criteria of overhead transmission lines.
2. ASCE (2015): ASCE 10-15, Design of Latticed Steel Transmission Structures, widely used as structural guidance for transmission support design.
3. ISO (2012): ISO 1461, Hot dip galvanized coatings on fabricated iron and steel articles — specifications and test methods.
4. ISO (2012): ISO 9223, Corrosion of metals and alloys — classification of atmospheric corrosivity.
5. IEA (2023): Electricity Grids and Secure Energy Transitions, grid expansion and modernization requirements.
6. IRENA (2023): World Energy Transitions Outlook, highlighting permitting and grid build-out as deployment bottlenecks.
7. FHWA (2012): Steel Bridge Design Handbook — corrosion protection and detailing principles relevant to galvanized steel durability.
8. NACE/AMPP (2021): Corrosion basics and asset integrity guidance used across infrastructure sectors for maintenance planning.

Conclusion

For corrosive transmission corridors, galvanized monopoles and transmission poles can extend service life toward 50 years while cutting site schedule by 20-40% and footprint by 50-85% when matched to the right voltage, span, and exposure class.

The bottom line is clear: if your project faces salt, humidity, industrial pollution, or tight outage windows, SOLAR TODO should be evaluated on total installed cost and lifecycle risk, not only initial steel price.

---
