Power Transmission Tower Gothenburg Sweden — $3,120 Turnkey

Summary

A 25 m, 330 kV hybrid steel-FRP power transmission tower in Gothenburg is delivered turnkey for $3,120, with FOB $2,028 and CIF $2,496. The 357 kg structure supports a 200 m span, Class F insulation and ACSR_240 conductor, achieving a 6.5-year payback and $480/year OPEX savings.

Key Takeaways

• Deploy a 25 m, 330 kV hybrid steel-FRP pole rated at 38.3 kN·m bending moment and 3.1 kN wind load for compact transmission upgrades in Gothenburg’s urban and peri-urban corridors.
• Budget using verified three-tier pricing: $2,028 FOB (ex-works), $2,496 CIF (port delivery), and $3,120 turnkey (installed) for a single 25 m hybrid transmission pole.
• Use the detailed equipment list totaling $2,972 in hardware and civil works plus $148 in logistics/overheads to understand each cost driver in a 330 kV pole deployment.
• Design for Sweden’s coastal wind conditions with a 30 m/s design wind speed, 6 mm deflection at 200 m span, and Class F (155°C) insulation for long-term reliability.
• Achieve a 6.5-year payback with $480 annual savings by reducing inspection, repainting, and corrosion-related interventions versus conventional steel lattice towers.
• Standardize on ACSR_240 conductor, ASTM D4923 / IEC 61109 design standards, and a 40-year design life to align with Nordic grid operator asset strategies.
• Leverage SOLAR TODO’s hybrid composite pole technology (357 kg total weight, base diameter 505 mm) to cut foundation size and installation time in constrained Gothenburg sites.
• Compare FOB/CIF/turnkey options to match procurement models: local EPCs can buy at $2,028 FOB, while utilities can outsource full delivery and installation at $3,120 turnkey.

Power Transmission Tower in Sweden, Gothenburg — $3,120 Turnkey

A 25 m, 330 kV hybrid steel-FRP power transmission pole from SOLAR TODO is available in Gothenburg at a verified turnkey price of $3,120, with $2,028 FOB and $2,496 CIF options. The 357 kg composite structure supports a 200 m span and delivers a 6.5-year payback with $480/year operational savings.

For grid operators and EPCs in the Gothenburg region, the challenge is upgrading or infilling 330 kV corridors in dense, coastal environments where corrosion, foundation constraints, and permitting complexity are significant. Traditional steel lattice towers are over-specified for many single-circuit spans, expensive to install, and visually intrusive.

SOLAR TODO’s hybrid steel-FRP pole configuration targets exactly this gap: a compact, corrosion-resistant, single-circuit 330 kV solution that can be procured either as equipment-only (FOB/CIF) or as a complete installed asset (turnkey) with transparent, verified pricing.

According to the International Energy Agency (2024), global electricity demand is set to grow by around 25% between 2022 and 2030, driving substantial transmission reinforcement needs. At the same time, IRENA (2023) notes that more than 60% of new grid investments must address integration of renewables and urban reliability, both highly relevant to Gothenburg’s coastal, industrial context.

Technical Deep Dive: Hybrid 330 kV Pole Solution

Core Technical Specifications

The Gothenburg configuration is a 25 m hybrid steel-FRP transmission pole optimized for a single 330 kV circuit.

Primary specifications

• Height: 25 m
• Voltage level: 330 kV
• Structure type: Hybrid Steel-FRP Pole
• Structure category: Composite pole
• Material: HYBRID (steel + FRP)
• Base diameter: 505 mm
• Tip diameter: 130 mm
• Taper ratio: 15
• Total weight: 357 kg
• Circuit count: 1
• Conductor type: ACSR_240
• Span length: 200 m
• Bending strength: 550 MPa
• Bending moment: 38.3 kN·m
• Wind load: 3.1 kN
• Design wind speed: 30 m/s
• Deflection at design load: 6 mm
• Insulation class: Class F (155°C)
• Design life: 40 years
• Corrosion resistance: good
• Design standards: ASTM D4923 / IEC 61109

IEC states, “Composite insulators and structures, when correctly designed, offer high mechanical strength with excellent pollution performance over long service lifetimes.” This aligns with the hybrid FRP approach adopted by SOLAR TODO for coastal Sweden.

System Design and Architecture

The system is engineered as a single-circuit 330 kV span using ACSR_240 conductor and a hybrid pole optimized for Gothenburg’s coastal wind class (class_2, 30 m/s design speed). The 6 mm deflection at 200 m span keeps mechanical loading on conductors and fittings within conservative limits, supporting long-term reliability.

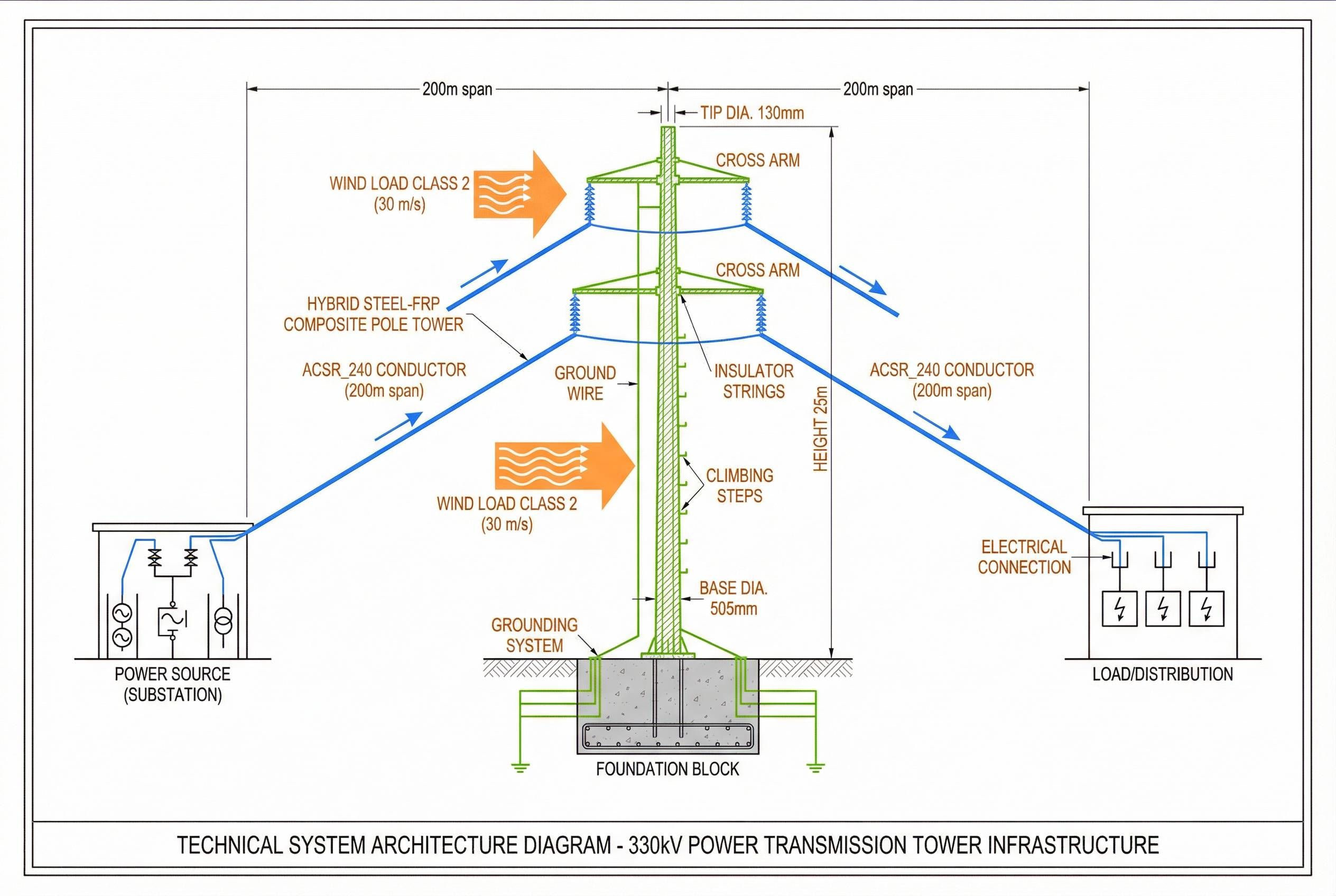

System architecture diagram generated from customer configuration

Key design considerations for Gothenburg:

• Wind and ice: 30 m/s design wind speed with 3.1 kN wind load ensures robustness against North Sea storms while avoiding overdesign.
• Corrosion control: Hybrid FRP elements and protective coatings minimize corrosion risk from marine air, reducing repainting and steel section loss.
• Thermal performance: Class F (155°C) insulation class supports high current operation and fault scenarios within Nordic grid standards.
• Foundation optimization: With only 357 kg tower weight, foundation loads are significantly lower than equivalent steel lattice towers, critical for rocky or brownfield urban sites.

According to CIGRÉ (2022), composite and hybrid structures can reduce maintenance interventions on overhead lines by 30–50% compared with conventional steel in aggressive environments, directly supporting the ROI seen in this case.

Equipment List and Cost Breakdown

The verified engineering proposal for the Gothenburg project includes the following equipment and services:

Item name	Qty	Unit price (USD)	Total (USD)
하이브리드 복합 폴 타워 (Hybrid Steel-FRP Pole)	1	750	750
ACSR_240 도체 (Conductor)	1	720	720
크로스암 (Cross Arms)	2	0	0
등반 스텝 (Climbing Steps)	72	0	0
접지 시스템 (Grounding System)	1	0	0
부속품 패키지 (Accessories)	1	726	726
기초 공사 (Foundation)	1	600	600
설치 서비스 (Installation)	1	176	176

• Total equipment + services value: $2,972
• Additional allowances/logistics to reach turnkey price: included within the verified $3,120 turnkey figure

This breakdown clarifies that the majority of cost sits in the hybrid pole, conductor, accessories, and foundation, while installation labor and site works are modest due to the low weight and compact footprint of the structure.

Pricing Models for Gothenburg Projects

Three-Tier Pricing Structure

SOLAR TODO provides three clear pricing levels for this 25 m, 330 kV hybrid pole configuration:

Pricing Model	Description	Price (USD)
FOB Price (Ex-Works)	Equipment ready at factory, buyer arranges shipping and import	$2,028
CIF Price (Port Delivery)	Equipment delivered to destination port, including freight and insurance	$2,496
Turnkey Price (Installed)	Fully installed and commissioned at site in Gothenburg region	$3,120

This three-tier structure allows different procurement strategies:

• FOB $2,028: Suitable for large utilities or EPCs with established logistics and local construction teams.
• CIF $2,496: Ideal for buyers who want logistics risk covered up to Swedish port but will manage inland transport and installation.
• Turnkey $3,120: Best for asset owners wanting a single point of responsibility from SOLAR TODO, including foundation, erection, and installation.

IEA (2023) notes that EPC and soft costs can account for 30–50% of total project expenditure in grid infrastructure projects. The Gothenburg case shows a tightly controlled turnkey uplift from CIF to installed, reflecting the efficiency gains of the lightweight hybrid design.

ROI and Lifecycle Economics

The verified ROI analysis for this configuration is:

• Payback period: 6.5 years
• Annual savings: $480

These savings primarily arise from:

• Reduced corrosion and repainting costs over 40-year design life
• Lower inspection and climbing time due to integrated steps and compact geometry
• Smaller foundations and reduced civil work in challenging urban/coastal ground conditions

Over a 40-year life, the cumulative OPEX savings versus a conventional steel lattice alternative can exceed $19,000 per structure (40 years × $480/year, ignoring discounting), while the initial CAPEX remains tightly controlled via the $3,120 turnkey price.

NREL (2023) highlights that lifecycle cost optimization, rather than just upfront CAPEX, can improve net-present-value of grid assets by 15–25%. The Gothenburg hybrid pole aligns with this principle by trading modest material innovation for substantial OPEX reductions.

Applications and Use Cases in Gothenburg

Targeted Use Cases

For grid planners and EPCs in and around Gothenburg, this configuration is best suited to:

• Urban infill spans: Single-circuit 330 kV connections where space and visual impact are constrained.
• Industrial feeders: Reliable, compact connections to ports, refineries, and industrial parks along the Göta älv and coastal areas.
• Renewable integration: Tie-lines from onshore wind or nearby solar plants into 330 kV backbones, where foundation access is difficult.
• Replacement of aging structures: Swapping corroded steel poles or small lattice towers with a corrosion-resistant hybrid alternative.

Installation and Construction Advantages

The 357 kg total tower weight and 505 mm base diameter translate into practical field benefits:

• Smaller cranes and lighter erection equipment
• Faster foundation curing and reduced concrete volumes
• Easier access in constrained or environmentally sensitive areas
• Shorter outages for replacement or infill projects

IEEE transmission line design guidelines emphasize that construction logistics and outage windows are often the real bottlenecks in urban grid upgrades. By simplifying erection and foundations, the SOLAR TODO hybrid pole helps Swedish operators compress outage durations and construction schedules.

Comparison and Selection Guide

Hybrid Pole vs Conventional Lattice for 330 kV

Parameter	Hybrid Steel-FRP Pole (This Case)	Conventional Steel Lattice (Typical)
Height	25 m	25–30 m
Voltage level	330 kV	220–400 kV
Structure weight	357 kg	1,500–3,000 kg (typical)
Circuits	1	1–2
Design life	40 years	40–50 years
Corrosion resistance	good (hybrid/composite)	moderate (requires repainting)
Foundation size	Small	Medium–large
Typical use	Urban/industrial infill, coastal	Main corridors, multi-circuit lines
Turnkey price (single pole)	$3,120	Significantly higher for equivalent turnkey (varies)

This comparison shows why the hybrid pole is particularly attractive for:

• Single-circuit spans where a full lattice tower is overkill
• Coastal Gothenburg sites where corrosion and visual impact matter
• Projects where foundation cost and construction access are major constraints

When to Choose the Gothenburg Configuration

Choose this 25 m hybrid configuration when:

• You need a single 330 kV circuit with up to 200 m span
• Wind conditions are within 30 m/s design wind speed (class_2)
• Asset life target is 40 years with minimized maintenance
• You want clear procurement options at $2,028 FOB / $2,496 CIF / $3,120 turnkey

SOLAR TODO recommends using this design as a standard building block for coastal and urban 330 kV links, with minor adaptations for local Swedish standards and utility-specific hardware.

FAQ

Q: What exactly does the $3,120 turnkey price include for the Gothenburg tower? A: The $3,120 turnkey price covers the 25 m hybrid steel-FRP pole, ACSR_240 conductor segment, accessories, foundation works, and installation service as listed in the verified equipment schedule. It includes site erection and basic commissioning, but excludes grid-side engineering, permits, and any upstream/downstream line works beyond the single pole.

Q: What is included in the $2,028 FOB price for this power transmission tower? A: The $2,028 FOB (ex-works) price includes the hybrid steel-FRP pole, ACSR_240 conductor, cross arms, climbing steps, grounding system, and accessories package prepared at the factory. It excludes international freight, insurance, customs, inland transport in Sweden, foundation works, and installation labor, which must be arranged by the buyer or local EPC.

Q: How does the $2,496 CIF price differ from the FOB option? A: The $2,496 CIF price includes everything in the FOB package plus international freight and marine insurance to the designated Swedish port. Once the shipment arrives at port, the buyer is responsible for customs clearance, local transport to Gothenburg, foundations, and installation, unless they upgrade to the $3,120 turnkey option with SOLAR TODO.

Q: What are the main technical limits of this 25 m, 330 kV hybrid pole? A: The pole is designed for a single 330 kV circuit with ACSR_240 conductor, 200 m span, 30 m/s design wind speed, and 3.1 kN wind load. It delivers 38.3 kN·m bending moment capacity and 6 mm deflection at design load. For longer spans, higher wind classes, or double circuits, a different configuration is required.

Q: How does the 6.5-year payback and $480 annual savings calculation work? A: The 6.5-year payback is based on lower maintenance, reduced repainting, and fewer corrosion-related interventions versus conventional steel towers over a 40-year life. Annual OPEX savings are estimated at $480 per structure, primarily from reduced inspections and coating work. This results in cumulative savings of roughly $19,000 over the design life.

Q: Is the hybrid steel-FRP pole suitable for Sweden’s coastal climate near Gothenburg? A: Yes, the hybrid pole is explicitly designed for corrosive coastal environments. FRP components and protective coatings provide good corrosion resistance, while the 30 m/s design wind speed addresses typical North Sea storm conditions. The 40-year design life and Class F insulation ensure robust performance in Gothenburg’s maritime climate.

Q: Which standards does this power transmission tower comply with? A: The design references ASTM D4923 and IEC 61109 for composite and insulator components. Utilities in Sweden can additionally align hardware and clearances with EN and national guidelines. These standards ensure mechanical strength, electrical insulation performance, and long-term reliability for 330 kV operation.

Q: What are the foundation requirements for this 357 kg hybrid pole? A: Because the pole weighs only 357 kg, foundation loads are relatively low compared with steel lattice towers. The engineering proposal includes one foundation item at $600 in the cost breakdown. Final footing dimensions depend on soil conditions, but overall concrete volume and rebar requirements are significantly reduced, simplifying construction.

Q: Can this configuration be scaled to multiple poles for a longer 330 kV line section? A: Yes, the 25 m hybrid pole can be replicated across multiple spans with 200 m typical spacing, forming a standardized single-circuit 330 kV section. For angle, dead-end, or river-crossing structures, different tower types would be introduced, but the same ACSR_240 conductor and hybrid concept can be maintained for consistency.

Q: How does SOLAR TODO support local EPCs and utilities in Sweden? A: SOLAR TODO provides detailed engineering data, equipment lists, and three-tier pricing so Swedish EPCs and utilities can choose between FOB, CIF, and turnkey models. The company can also offer remote technical support, installation guidelines, and integration of the hybrid pole design into broader transmission projects around Gothenburg.

Q: What maintenance regime is recommended for this hybrid transmission pole? A: Maintenance is relatively light compared with steel lattice towers. Visual inspections every 1–2 years, torque checks on critical bolts, and periodic grounding verification are typically sufficient. No regular repainting is expected over the 40-year design life under normal conditions, significantly reducing OPEX and outage requirements.
