Urban Power Tower Conductor Sizing Timeline Guide

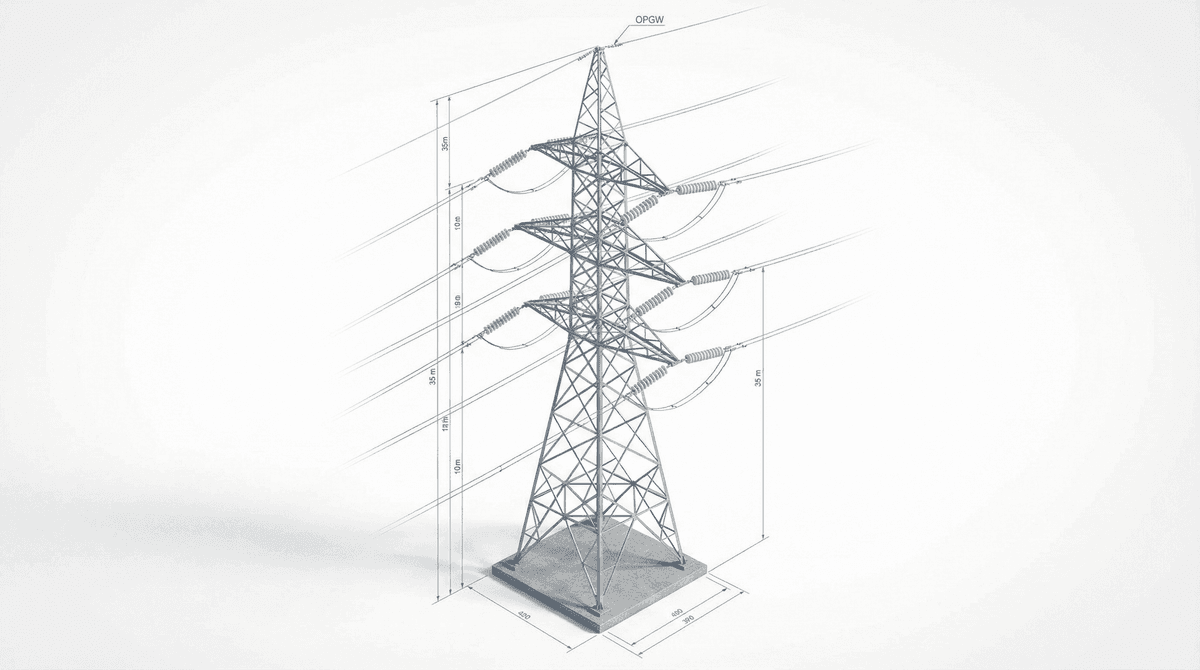

Summary

Urban power transmission corridors require conductor sizing that balances ampacity, clearance, noise, and schedule risk. For 10kV to 220kV projects, tower erection typically spans 3-9 months, while optimized sizing can cut losses by 2-5% and support wind survival up to 55 m/s in dense city corridors.

Key Takeaways

• Define corridor constraints within the first 2-4 survey weeks, including right-of-way width, statutory clearance, and 45-55 m/s wind design criteria.
• Size conductors to keep operating temperature, sag, and losses within target limits; in urban 110kV-220kV lines, a 2-5% loss reduction can materially improve lifecycle ROI.
• Select tower types by function: use 15-30 m poles for constrained distribution interfaces and 45-55 m lattice towers for 220kV angle or dead-end sections.
• Sequence construction in 5 stages over 3-9 months for typical urban packages: survey, foundation, tower erection, stringing, and testing/energization.
• Verify structural and electrical compliance against IEEE, IEC, and CIGRE guidance, especially for clearance, thermal rating, and short-circuit loading.
• Compare FOB Supply, CIF Delivered, and EPC Turnkey pricing early; volume orders above 50, 100, and 250 units typically support 5%, 10%, and 15% discounts.
• Use dual-use assets where feasible; a 15 m hybrid pole can support 10kV distribution and telecom equipment, improving corridor value per square meter.
• Plan maintenance around a 25+ year design life; FRP zero-maintenance poles avoid repainting and corrosion interventions in polluted urban environments.

Construction Timeline and Conductor Sizing Strategy for Urban Power Transmission Corridors

Urban transmission projects succeed when conductor sizing and tower sequencing are designed together from day one. In 10kV to 220kV corridors, the right strategy can shorten delivery to 3-9 months, reduce technical losses by 2-5%, and maintain structural performance under wind speeds up to 55 m/s in dense built environments.

For procurement managers and project engineers, the core issue is not only how much current a conductor can carry. In urban corridors, the conductor must also satisfy clearance envelopes over roads and rail, electromagnetic and audible-noise constraints near buildings, outage planning windows, and the geometry imposed by angle, dead-end, and terminal towers. A conductor that is electrically adequate but mechanically inefficient can force taller structures, larger foundations, and longer permit cycles.

This is where a coordinated tower-and-conductor strategy matters. SOLAR TODO supplies Power Transmission Tower solutions from 15 m FRP distribution poles to 55 m heavy-duty dead-end towers for 10kV to 220kV systems. In practical terms, that range lets EPC teams match conductor weight, span length, and corridor restrictions without overdesigning every structure in the route.

According to the International Energy Agency, “Electricity grids are the backbone of secure and sustainable power systems.” That statement is especially relevant in cities, where grid reinforcement must be delivered with minimal land take and minimal service disruption. According to IEA (2023), more than 80 million kilometers of grids worldwide will need to be added or refurbished by 2040, underscoring the importance of efficient urban transmission design.

According to CIGRE (2023), dynamic and high-temperature low-sag conductor strategies can increase transfer capability on constrained corridors without requiring entirely new routes. For urban planners, that means conductor sizing is often the most cost-effective lever before pursuing wider rights-of-way or underground conversion.

Why Urban Corridors Need a Different Sizing Method

Urban corridors impose tighter design margins than rural lines. Buildings, flyovers, telecom assets, and transport infrastructure reduce the available clearance envelope, while pollution and heat-island effects can raise conductor operating temperatures. The result is a narrower window for conductor diameter, bundle configuration, and final tower height.

A practical sizing strategy should evaluate five variables together:

• Continuous ampacity at local ambient conditions
• Maximum sag at peak conductor temperature
• Emergency loading and short-term overload capability
• Corona, radio interference, and audible noise near occupied areas
• Structure loading, including transverse and longitudinal forces at angle and dead-end points

According to IEEE Std 738 (2023), conductor temperature and ampacity depend on solar heating, ambient temperature, wind speed, and emissivity. In cities, low wind speeds between buildings can reduce convective cooling, meaning a conductor sized only on nominal current may run hotter than expected. That directly affects sag and clearance compliance.

For 110kV to 220kV urban links, teams commonly compare conventional ACSR with HTLS options when corridor width is fixed. ACSR may offer lower upfront conductor cost, but HTLS can reduce the need for tower height increases if the line must carry more current without excessive sag. The right answer depends on whether capital pressure is stronger on line hardware or on civil and permitting scope.

SOLAR TODO can support this decision by aligning tower family selection with conductor mass and tension requirements. A 45 m 220kV angle tower or a 55 m 220kV dead-end tower may be justified where route geometry or terminal loading is severe, while lighter composite or hybrid solutions may fit constrained distribution transitions.

Conductor Selection Criteria for Dense Urban Routes

The most effective urban sizing workflow starts with load forecast and N-1 contingency requirements, then moves immediately to mechanical screening. Engineers should calculate current demand for present load plus 10-20 years of growth, then test candidate conductors against maximum allowable sag and blowout within the corridor profile.

Key technical checks include:

• Ampacity under summer peak conditions
• Sag at maximum operating temperature
• Short-circuit thermal withstand
• Vibration behavior on shorter or turbulent spans
• Hardware compatibility with insulator strings and tower attachment points

According to IEC 60826 (2017), overhead line design should account for combined climatic loads and reliability levels. In urban projects, this standard-based approach helps justify conservative combinations of wind, temperature, and broken-wire conditions to regulators and utilities.

Construction Timeline: From Survey to Energization

Construction schedule performance in urban corridors depends heavily on front-end engineering. If conductor sizing changes after foundation design, tower spotting and attachment loads may need revision, which can delay permits and fabrication. The fastest projects lock conductor family, ruling span assumptions, and tower typology before detailed geotechnical design is complete.

A typical urban Power Transmission Tower package follows five stages.

1. Survey, Permitting, and Corridor Definition: 1-3 Months

This stage includes topographic survey, utility conflict mapping, geotechnical investigation, traffic management planning, and authority approvals. In dense corridors, permit lead times often exceed fabrication lead times, so route conflict resolution should begin immediately.

Typical outputs are:

• Preliminary tower schedule and spotting plan
• Clearance model over roads, buildings, and crossings
• Conductor shortlist with ampacity and sag comparison
• Foundation concept by soil class and access condition

2. Detailed Engineering and Procurement: 1-2 Months

Once the conductor and tower family are fixed, detailed structural checks, insulator selection, hardware schedules, and foundation drawings can be finalized. For SOLAR TODO projects, this is also the stage to confirm whether steel lattice, FRP, or Carbon-FRP hybrid structures offer the best lifecycle value.

A 30 m 220kV Carbon-FRP hybrid structure can be attractive where low mass, seismic resilience, and difficult access dominate. The 45 m double-circuit angle tower and 55 m dead-end tower are more suitable where full-tension performance and conventional utility acceptance are the priority.

3. Civil Works and Foundations: 1-2 Months

Foundation duration depends on access windows, underground utility congestion, and curing requirements. Urban sites often require night work, lane closures, and staged excavation. Foundation overdesign is common when conductor loads are not stabilized early, which is why integrated sizing reduces both cost and schedule risk.

4. Tower Erection and Hardware Installation: 2-6 Weeks

Tower erection includes steel or composite assembly, bolt tensioning, insulator installation, earthing, and pre-stringing inspection. Modular prefabrication can reduce urban crane time and improve safety. For constrained sites, lighter composite members can reduce lifting requirements and simplify logistics.

5. Stringing, Testing, and Energization: 2-4 Weeks

Stringing in cities requires tight traffic control and outage coordination. Final sagging must reflect actual ambient conditions and creep allowances. Commissioning includes continuity, grounding, insulation, and protection-system checks before energization.

In total, a straightforward urban package may complete in about 3 months, while a multi-crossing or heavily permitted route may take 6-9 months. The schedule range is driven less by erection speed than by corridor complexity and approval interfaces.

Tower Configuration Options for Urban Corridor Design

Choosing the right structure type is central to conductor sizing strategy because tower height, cross-arm geometry, and tension capacity determine what conductor options remain feasible.

Configuration	Voltage Class	Typical Height	Key Use Case	Indicative Price
FRP distribution pole	10kV	15 m	Narrow urban distribution interface, corrosion-prone zones	$4,500-$6,500
Carbon-FRP hybrid tower	220kV	30 m	Seismic or access-constrained corridors	$35,000-$50,000
Steel lattice angle tower	220kV double-circuit	45 m	Route deviations, higher transverse loads	$48,000-$65,000
Steel dead-end tower	220kV	55 m	Terminal and full-tension sections	$75,000-$100,000

SOLAR TODO positions these structures for different corridor conditions rather than as interchangeable hardware. In a dense urban route, using a higher-capacity angle or dead-end tower only where mechanically necessary can reduce total installed cost. Conversely, specifying heavy towers across the full route may simplify design but usually weakens project economics.

For polluted coastal or industrial districts, FRP offers a meaningful lifecycle advantage. SOLAR TODO states that its FRP zero-maintenance technology avoids corrosion and repainting over a 25+ year design life. That can be especially valuable where access for maintenance requires recurring road closures.

Steel vs FRP vs Carbon-FRP Hybrid

Steel remains the default for many utilities because of familiarity, broad standards acceptance, and high tension capacity. However, composite options can be superior where corrosion, seismic loading, or installation access dominate decision-making.

Parameter	Steel Lattice	FRP Pole	Carbon-FRP Hybrid
Corrosion resistance	Moderate with galvanizing	High	High
Maintenance need	Low to moderate	Very low	Very low
Weight	High	Low	Very low
Urban installation ease	Moderate	High	High
Best fit	Angle/dead-end/full tension	Distribution and constrained sites	Seismic and access-limited 220kV

EPC Investment Analysis and Pricing Structure

For B2B buyers, EPC evaluation should include not only tower ex-works price but also conductor compatibility, civil scope, outage planning, and lifecycle maintenance. In urban corridors, the cheapest tower on a unit basis is often not the cheapest delivered solution once permits, crane hours, and traffic management are included.

EPC turnkey delivery typically includes:

• Route survey and preliminary engineering
• Tower, conductor, insulator, and hardware procurement
• Foundation construction and civil works
• Tower erection and stringing
• Testing, commissioning, and energization support
• Documentation, QA/QC, and as-built handover

The standard commercial structure is usually split into three tiers:

• FOB Supply: factory supply only, suitable for buyers with local logistics and erection capability
• CIF Delivered: supply plus freight and insurance to destination port
• EPC Turnkey: full engineering, procurement, construction, testing, and handover

Indicative volume pricing guidance for tower packages is:

• 50+ units: about 5% discount
• 100+ units: about 10% discount
• 250+ units: about 15% discount

Payment terms commonly follow 30% T/T and 70% against B/L, or 100% L/C at sight. Financing support is typically available for large projects above $1,000K. For project pricing, EPC structuring, and warranty clarification, buyers can contact cinn@solartodo.com.

Urban corridor ROI should be measured against the conventional alternative, which is often underground cable or repeated substation reinforcement. Overhead reinforcement with optimized conductor sizing usually offers faster deployment and lower capex per transferred megawatt. If conductor optimization reduces losses by 2-5% and avoids one or two tower-height redesign cycles, payback can materially improve through both lower energy loss cost and shorter time to energization.

According to IRENA (2023), grid investment is essential to integrate cost-competitive renewable generation. According to the organization, “Grids need to expand and modernize much faster to match the pace of the energy transition.” For urban utilities, this means overhead corridor optimization remains a strategic investment, not just a civil package.

Use Cases and Selection Guidance for Procurement Teams

A practical selection framework starts by classifying each route segment by mechanical function. Straight suspension sections can often use lighter, more economical structures, while route angles, river or rail crossings, and terminal points require stronger towers and more conservative conductor-tension assumptions.

Typical urban use cases include:

• 10kV distribution reinforcement in industrial districts using 15 m FRP poles where corrosion and maintenance access are problematic
• 220kV corridor upgrades using 30 m Carbon-FRP hybrid structures in seismic or difficult-access zones
• Double-circuit 220kV route deviations using 45 m steel angle towers
• Terminal or high-tension sections using 55 m steel dead-end towers

For procurement managers, the key commercial question is whether a higher-spec conductor can reduce total structure count or tower height. For engineers, the key technical question is whether the chosen conductor preserves statutory clearance at maximum temperature and contingency loading. These decisions should be made together, ideally before final permit submission.

SOLAR TODO is relevant here because its portfolio spans both conventional steel and advanced composite options. That breadth is useful in urban corridors, where one route may require multiple structure families rather than a single standardized tower.

FAQ

Q: What is the ideal construction timeline for an urban Power Transmission Tower project? A: A typical urban project takes about 3-9 months from survey to energization. Straightforward routes with limited crossings may finish in roughly 3 months, while heavily permitted corridors with road, rail, or utility conflicts often require 6-9 months due to approvals and staged access windows.

Q: How should conductors be sized for urban transmission corridors? A: Conductors should be sized using both electrical and mechanical criteria. The design must satisfy ampacity, maximum operating temperature, sag, clearance, short-circuit withstand, and noise constraints, because a conductor that meets current demand alone may still fail urban clearance or structure-loading requirements.

Q: Why is sag control more critical in cities than in rural routes? A: Sag control is more critical in cities because clearance margins over roads, buildings, railways, and utilities are tighter. Higher conductor temperature or low wind cooling can increase sag, forcing taller towers or reduced transfer capacity if the conductor was not selected with urban operating conditions in mind.

Q: When should HTLS conductors be considered instead of conventional ACSR? A: HTLS conductors should be considered when the corridor is fixed and transfer capacity must increase without major tower-height changes. They usually cost more upfront than ACSR, but they can reduce sag at high temperature and may avoid expensive civil redesign or route widening in constrained corridors.

Q: Which tower types are best for 220kV urban angle and dead-end sections? A: For 220kV urban routes, 45 m steel lattice angle towers are typically suitable for route deviations and transverse loading, while 55 m steel dead-end towers are better for terminal or full-tension sections. These configurations provide the mechanical reserve needed for conductor tension and contingency cases.

Q: What are the maintenance advantages of FRP structures in urban environments? A: FRP structures offer strong corrosion resistance and very low maintenance, which is valuable in polluted, coastal, or industrial urban zones. A 25+ year design life without repainting can reduce road closures, labor cost, and outage planning compared with conventional materials that need periodic surface treatment.

Q: How does conductor choice affect project cost beyond the cable price itself? A: Conductor choice affects tower height, foundation size, stringing tension, hardware selection, and permit complexity. A cheaper conductor may increase total installed cost if it causes excessive sag, requires taller structures, or triggers redesign of crossings and clearances in dense urban sections.

Q: What does EPC turnkey delivery include for urban transmission projects? A: EPC turnkey delivery typically includes engineering, procurement, civil works, tower erection, stringing, testing, and commissioning. It also covers QA/QC documentation and project coordination, which is especially important in cities where traffic management, permit interfaces, and outage windows can dominate schedule risk.

Q: What pricing structure is common for Power Transmission Tower procurement? A: The most common structure uses three tiers: FOB Supply, CIF Delivered, and EPC Turnkey. Volume guidance is often 5% discount for 50+ units, 10% for 100+, and 15% for 250+, with payment terms of 30% T/T plus 70% against B/L or 100% L/C at sight.

Q: How can buyers evaluate ROI for urban overhead reinforcement? A: Buyers should compare overhead reinforcement against underground cable or deferred-capacity alternatives. ROI improves when optimized conductor sizing reduces losses by 2-5%, avoids tower redesign, shortens energization time, and lowers maintenance cost over a 25+ year asset life.

Q: Can one corridor use multiple tower materials and configurations? A: Yes, mixed-configuration corridors are often the most economical solution. Engineers may use lighter poles in straight constrained sections, stronger steel towers at angles and dead-ends, and composite or hybrid structures where corrosion, seismic performance, or access limitations justify them.

Q: How can I request EPC pricing or technical support from SOLAR TODO? A: Buyers can request project-specific support by sharing voltage level, route length, conductor target, wind zone, and geotechnical conditions. For pricing, financing above $1,000K, and warranty details, contact SOLAR TODO at cinn@solartodo.com to structure FOB, CIF, or EPC Turnkey proposals.

Conclusion

For urban 10kV to 220kV corridors, the best results come from designing conductor sizing and tower selection as one package. SOLAR TODO enables that approach with 15 m to 55 m structures, helping utilities cut schedule risk, control losses by 2-5%, and deliver bankable urban transmission projects within a 3-9 month construction window.
