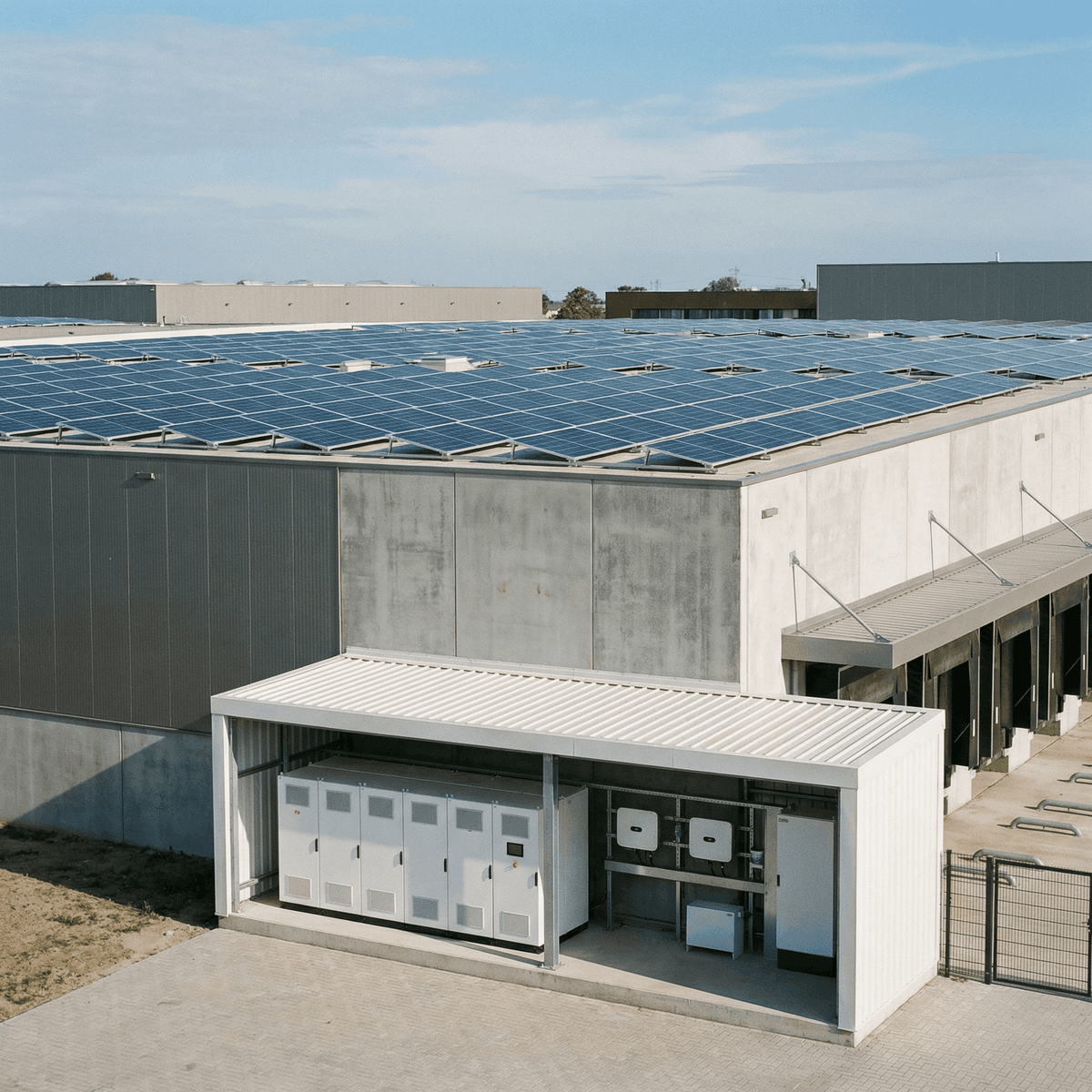

Cold Storage Solar PV: DC/AC Ratio and Roof Load

Summary

Cold-storage rooftops often cap dead load, but commercial Solar PV Systems can still work by optimizing DC/AC ratio to 1.2-1.5, using N-Type TOPCon modules up to 24% efficiency, and reducing demand charges on 100-500kW+ facilities with typical payback in 4-7 years.

Key Takeaways

• Increase DC/AC ratio to 1.2-1.5 to maximize annual kWh output when roof area is limited but inverter loading can be managed safely.
• Select N-Type TOPCon modules up to 24% efficiency to raise kW density and reduce required roof area per installed megawatt.
• Verify roof dead load and live load with a structural review before installing 100-500kW+ Solar PV Systems on insulated cold-storage roofs.
• Use lightweight mounting and optimized row spacing to keep added roof load commonly within 10-20 kg/m2, depending on local wind and snow design.
• Pair solar with 200kWh-1MWh LFP storage to shave compressor-driven peaks and improve self-consumption during high-tariff periods.
• Model clipping, snow losses, and refrigeration load overlap with hourly simulations to target 4-7 year payback instead of oversizing mechanically.
• Compare FOB Supply, CIF Delivered, and EPC Turnkey pricing; apply volume discounts of 5% at 50+, 10% at 100+, and 15% at 250+ units.
• Specify IEC 61215, IEC 61730, UL, and IEEE 1547-aligned components to reduce interconnection risk and improve long-term bankability.

Why DC/AC Ratio Matters for Cold-Storage Solar PV Systems

Commercial Solar PV Systems for cold storage usually succeed when designers raise DC/AC ratio to 1.2-1.5, use high-efficiency modules up to 24%, and control roof loading through lightweight mounting. For facilities in the 100kW to 500kW+ range, that approach can improve annual yield without proportionally increasing structural burden or inverter cost.

Cold-storage buildings are unusual solar hosts because their electrical demand is high, steady, and often aligned with daytime ambient heat. That makes them excellent candidates for on-site generation. The challenge is that many cold-storage roofs use insulated sandwich panels, long-span steel members, or membrane systems with limited reserve structural capacity, so the project is constrained less by electrical demand than by allowable roof load.

According to the International Energy Agency, "Solar PV is today the cheapest source of electricity in many regions." That statement matters even more for refrigerated warehouses, where grid electricity costs directly affect operating margins. According to IRENA (2024), utility-scale solar PV remained among the lowest-cost new power sources globally, and the same cost trend supports commercial behind-the-meter deployment when self-consumption is high.

For cold storage, the design question is not simply how many modules fit on the roof. It is how to maximize delivered kWh per kilogram of added load and per square meter of usable roof. That is where DC/AC ratio becomes a practical engineering lever: by modestly oversizing the DC array relative to inverter AC capacity, designers can increase annual energy harvest from constrained roof area while avoiding unnecessary balance-of-system cost.

SOLAR TODO addresses this with complete Solar PV Systems using N-Type TOPCon modules, string or hybrid inverters, and optional LFP storage. For procurement managers and project engineers, the value is straightforward: higher energy density, lower structural risk, and a clearer path to ROI on refrigeration-intensive sites.

Roof Load Constraints in Cold-Storage Facilities

Cold-storage roofs are often more sensitive than standard commercial roofs because they must protect insulation integrity, vapor barriers, and thermal performance while resisting wind uplift and, in some climates, snow accumulation. The roof may support only a narrow additional dead-load margin after accounting for mechanical equipment, suspended piping, and maintenance access.

A typical engineering review starts with four checks:

• Existing roof deck and purlin capacity
• Dead load allowance for mounting, modules, cable trays, and ballast if any
• Wind uplift and attachment detailing
• Snow drift interaction around parapets, evaporator penetrations, and rooftop equipment

In many projects, ballast-heavy systems are eliminated early because they consume too much structural allowance. Attached lightweight systems are usually preferred, but attachment must be coordinated carefully to avoid thermal bridging, water ingress, and insulation compression. Depending on module type, mounting scheme, and code loads, added system weight commonly falls in the 10-20 kg/m2 range, though exact values must come from project-specific engineering.

According to NREL (2024), accurate PV performance and design assessment depend on site-specific assumptions rather than generalized nameplate sizing. The same principle applies structurally: a cold-storage roof that appears large enough for 500kW may only support a much smaller system unless module efficiency and DC/AC ratio are optimized together.

The technical objective is therefore to improve kWh yield per square meter and per kilogram. High-efficiency modules reduce the number of panels required for a target DC capacity, while a higher DC/AC ratio lets the project extract more annual production from a limited inverter platform. This is often more economical than trying to force additional steel reinforcement into an operating refrigerated facility.

Technical Design: Using DC/AC Ratio to Increase Yield Without Overloading the Roof

DC/AC ratio is the ratio of installed module DC capacity to inverter AC capacity. A 300kWp array on a 250kW inverter has a DC/AC ratio of 1.2. In commercial Solar PV Systems, ratios around 1.1-1.5 are common, but the optimal point depends on irradiance profile, temperature, tariff structure, clipping tolerance, and load coincidence.

For cold-storage applications, a higher DC/AC ratio can solve two linked problems. First, it increases annual energy production from limited roof area by keeping the inverter operating closer to full output for more hours. Second, it avoids adding more inverters, AC switchgear, and transformer capacity than the site actually needs. The roof carries the modules and mounting; the electrical plant carries the inverter bottleneck. If roof area is constrained but still adequate for a denser high-efficiency layout, DC oversizing often improves economics.

Why cold storage is a strong candidate for DC oversizing

Refrigeration loads are relatively flat compared with office buildings, and daytime compressor demand often rises with outside temperature. That means clipped midday production is not necessarily wasted if the facility has strong self-consumption across the solar window. Instead of designing for rare perfect irradiance peaks, engineers can design for annual delivered kWh and tariff savings.

According to Fraunhofer ISE (2024), PV system performance is highly dependent on orientation, temperature, and system design choices. In cold-storage projects, lower ambient temperatures can also improve module operating efficiency compared with hot-roof commercial sites, which supports higher DC loading. However, snow cover, frost, and winter sun angles must be modeled carefully.

A practical design workflow includes:

• Structural load assessment before electrical single-line design is finalized
• Hourly load profile review for compressors, defrost cycles, and auxiliary systems
• Simulation of DC/AC ratios such as 1.1, 1.25, 1.35, and 1.5
• Clipping analysis against tariff savings and inverter cost
• Snow-loss and maintenance-access allowances

Typical configuration ranges

SOLAR TODO commonly supports commercial and industrial configurations from 100kW to 500kW+. Relevant examples include:

• 100kWp Commercial Hybrid with 200kWh LFP storage: $180,000-$240,000
• 200kWp Factory Roof Fixed-Tilt: $130,000-$170,000
• 500kWp Industrial Hybrid with single-axis tracking plus 1MWh LFP: $850,000-$1,100,000

For cold-storage rooftops, fixed-tilt attached systems are generally more realistic than tracking. The preferred specification is usually N-Type TOPCon monocrystalline modules, string inverters, and lightweight roof mounting. Optional storage helps if the site faces demand charges, backup requirements, or unfavorable export tariffs.

The National Renewable Energy Laboratory states that bankable PV design should be based on modeled annual production, losses, and financial assumptions rather than simple wattage comparisons. That is especially true here: a lower-weight, higher-efficiency array with a 1.3 DC/AC ratio may outperform a heavier, nominally larger system that triggers roof reinforcement cost.

Applications, ROI, and EPC Investment Analysis and Pricing Structure

Cold-storage operators typically buy solar for one of three reasons: reducing energy cost per pallet stored, controlling peak demand from compressors and defrost cycles, or improving resilience for critical refrigeration loads. Because refrigeration is a high-load, long-hour application, self-consumption rates are often favorable, which improves project economics versus buildings with low daytime demand.

According to IEA PVPS (2024), commercial and industrial PV deployment continues to expand as electricity price volatility increases. According to IRENA (2024), renewable power economics remain strongest where generated electricity displaces expensive retail or industrial tariffs. In cold storage, that displacement value is often more important than export revenue.

Example use cases

• A 200kWp rooftop system on a refrigerated warehouse offsets daytime compressor load and can reduce grid purchases during peak tariff windows.
• A 100kWp hybrid system with 200kWh LFP storage supports peak shaving and limited backup for controls, lighting, and selected refrigeration circuits.
• A multi-building logistics campus can standardize 100-500kW+ Solar PV Systems across facilities while using a common inverter and monitoring architecture.

ROI considerations for cold-storage projects

Key financial variables include:

• Local electricity tariff and demand-charge structure
• Annual solar yield after snow, soiling, and clipping losses
• Share of solar self-consumed on site
• Roof reinforcement avoided through lightweight design
• Incentives, depreciation, and financing cost

For many cold-storage sites, typical payback falls in the 4-7 year range when self-consumption is high and roof reinforcement is minimized. Storage can improve demand-charge savings but should be justified through interval data rather than added by default. If daytime load is already strong, a pure PV system may deliver the best first-stage ROI.

EPC Investment Analysis and Pricing Structure

EPC means Engineering, Procurement, and Construction under a turnkey delivery model. For commercial Solar PV Systems, turnkey scope typically includes site survey, structural coordination, electrical design, equipment supply, mounting, installation, testing, commissioning, and handover documentation. In cold-storage environments, EPC scope should also include roof waterproofing interface management, shutdown planning, and thermal-envelope protection procedures.

A three-tier commercial pricing model helps procurement teams compare offers consistently:

Pricing Tier	What It Includes	Best For
FOB Supply	Modules, inverters, mounting, and core equipment ex-factory	Buyers with local EPC capability
CIF Delivered	Equipment supply plus freight and insurance to destination port	Importers managing local installation
EPC Turnkey	Full engineering, procurement, installation, testing, and commissioning	Owners seeking single-point responsibility

Volume pricing guidance for repeat procurement is typically:

• 50+ units: 5% discount
• 100+ units: 10% discount
• 250+ units: 15% discount

Standard payment terms are:

• 30% T/T + 70% against B/L
• 100% L/C at sight

Financing support is available for large projects above $1,000K, including support for eligible international projects. For commercial quotations, EPC scope review, and warranty clarification, contact cinn@solartodo.com.

SOLAR TODO can provide complete Solar PV Systems with optional LFP storage, online sizing support, and ROI estimation. For cold-storage portfolios, this is useful because design standardization across sites can reduce engineering time and procurement complexity.

Comparison and Selection Guide

The right system architecture depends on roof capacity, tariff structure, and operating priorities. The table below summarizes a practical selection framework.

Scenario	Recommended DC/AC Ratio	Typical System Size	Storage Option	Main Benefit	Main Risk to Manage
Tight roof load, high daytime refrigeration load	1.25-1.5	100-300kW	Optional	Higher annual yield per inverter	Midday clipping
Adequate roof capacity, moderate tariff savings	1.1-1.25	200-500kW+	Optional	Balanced capex and performance	Underutilized inverter if undersized DC
High demand charges and unstable grid	1.2-1.35	100-500kW+	200kWh-1MWh LFP	Peak shaving and resilience	Battery economics if poorly sized
Snow-prone region with limited winter sun	1.1-1.3	Site-specific	Optional	Better seasonal control	Snow-loss uncertainty

Selection criteria should prioritize:

• Structural capacity first, electrical capacity second
• High-efficiency modules to maximize kW per square meter
• DC/AC ratio based on hourly simulation, not rules of thumb alone
• Storage only where demand charges or backup value justify it
• Certified components aligned with IEC, UL, and IEEE interconnection requirements

For many refrigerated warehouses, the best design is not the highest DC nameplate. It is the system that delivers the highest net annual savings without forcing roof reinforcement, operational disruption, or oversized AC infrastructure. SOLAR TODO uses this decision logic to align engineering with procurement outcomes.

FAQ

Q: What is the best DC/AC ratio for commercial Solar PV Systems on cold-storage roofs? A: The best DC/AC ratio is usually 1.2-1.5 for cold-storage sites, but the exact number depends on roof area, tariff structure, and hourly load profile. Higher ratios can improve annual kWh output from limited roof space, though clipping and structural constraints must be modeled before final selection.

Q: Why are cold-storage roofs more difficult for solar installation than standard warehouses? A: Cold-storage roofs often have tighter structural margins because they include insulated panels, vapor-control layers, and long spans. They also require careful detailing to prevent leaks, thermal bridging, and insulation damage, so lightweight mounting and structural verification are more critical than on conventional roofs.

Q: How does a higher DC/AC ratio help solve roof load constraints? A: A higher DC/AC ratio helps by extracting more annual energy from a limited inverter capacity without proportionally increasing AC equipment cost. When paired with high-efficiency modules, it can improve kWh yield per square meter and reduce the need for heavier or larger system expansion strategies.

Q: What module technology is recommended for cold-storage rooftop projects? A: N-Type TOPCon monocrystalline modules are generally recommended because they offer up to 24% efficiency and higher power density. That means fewer modules may be needed for the same DC capacity, which supports better use of constrained roof area and can simplify layout planning.

Q: What roof load should I expect from a commercial rooftop solar system? A: Many commercial rooftop systems add roughly 10-20 kg/m2, but the actual value depends on module size, mounting type, wind zone, snow loads, and attachment method. Project teams should rely on stamped structural calculations rather than generic assumptions, especially for cold-storage buildings.

Q: Is battery storage necessary for a cold-storage solar project? A: Battery storage is not always necessary because cold-storage facilities often have strong daytime self-consumption already. It becomes attractive when demand charges are high, export compensation is weak, or the site needs backup for critical refrigeration controls and selected essential loads.

Q: What payback period is typical for cold-storage Solar PV Systems? A: Typical payback is often 4-7 years when the facility has high daytime load and the project avoids major roof reinforcement. Actual ROI depends on electricity tariffs, demand charges, solar resource, clipping losses, financing terms, and whether storage is included.

Q: What does EPC turnkey delivery include for a cold-storage solar project? A: EPC turnkey delivery includes engineering, procurement, installation, testing, and commissioning under one contract. For cold-storage facilities, it should also cover roof interface management, waterproofing coordination, shutdown planning, safety procedures, and final as-built documentation for operations teams.

Q: How are SOLAR TODO commercial Solar PV Systems priced? A: SOLAR TODO typically offers FOB Supply, CIF Delivered, and EPC Turnkey pricing structures. Standard terms are 30% T/T plus 70% against B/L, or 100% L/C at sight, with volume discounts of 5% for 50+, 10% for 100+, and 15% for 250+ units.

Q: What certifications should buyers require for commercial Solar PV Systems? A: Buyers should require IEC 61215 for module design qualification, IEC 61730 for module safety, and IEEE 1547-aligned interconnection compliance where applicable. UL-listed components may also be required by local codes, insurers, or AHJs depending on the project jurisdiction.

Q: Can solar be installed without reinforcing the roof structure? A: Yes, in some cases, if the roof has adequate reserve capacity and the system uses lightweight attached mounting with optimized layout. However, that decision should only follow a structural assessment, because avoiding reinforcement by assumption can create safety, warranty, and insurance issues.

Q: When should a cold-storage operator choose hybrid solar plus storage instead of PV only? A: Hybrid solar plus storage is preferable when the site faces high demand charges, frequent grid instability, or a need for limited backup power. If the main goal is simple daytime energy offset and the load is already steady, PV only often provides the stronger first-phase return.

References

1. NREL (2024): PVWatts Calculator methodology and performance modeling guidance for photovoltaic system energy estimation.
2. IEA PVPS (2024): Trends in Photovoltaic Applications 2024, covering global commercial and industrial PV deployment trends.
3. IRENA (2024): Renewable Power Generation Costs in 2023, benchmarking solar PV cost competitiveness and economics.
4. IEC 61215-1 (2021): Terrestrial photovoltaic modules design qualification and type approval test requirements.
5. IEC 61730-1 (2023): Photovoltaic module safety qualification requirements for construction and testing.
6. IEEE 1547-2018 (2018): Standard for interconnection and interoperability of distributed energy resources with electric power systems.
7. UL 1741 (2024): Inverters, converters, controllers, and interconnection system equipment for distributed energy resources.
8. Fraunhofer ISE (2024): Photovoltaics Report, summarizing performance, market, and technology trends relevant to PV system design.

Conclusion

For cold-storage facilities, commercial Solar PV Systems work best when roof load is treated as the primary constraint and DC/AC ratio is optimized around 1.2-1.5. SOLAR TODO combines up to 24% efficient N-Type TOPCon modules, flexible 100-500kW+ designs, and EPC options to improve annual yield, reduce structural risk, and support 4-7 year payback on high-load refrigeration sites.

---
